Metal roofing/ wall profile forming mc, Vietnam standard type, T18 roofing machine
Metal roofing/ wall profile forming mc, Vietnam standard type, T18 roofing machine
Metal roofing/ wall profile forming mc, Vietnam standard type, T18 roofing machine
Metal roofing/ wall profile forming mc, Vietnam standard type, T18 roofing machine
Metal roofing/ wall profile forming mc, Vietnam standard type, T18 roofing machine
Metal roofing/ wall profile forming mc, Vietnam standard type, T18 roofing machine
Specifications
Brand Name :
NKH MACHINERY
Model Number :
YX18-125-1000
Certification :
CE/SONCAP/CSA
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10 UNITS/MONTH
Delivery Time :
40 WORKING DAYS
Packaging Details :
NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Weight :
5T
Control system :
PLC control system
Roller material :
45# steel
Raw material :
PPGI/Galvanized/Alu-Zinc/PPGL sheets, G245-550
Shaft material :
High Grade No.45 Forged
Cutting blade material :
Cr12, heat treatment
Description

Metal roofing/ wall profile forming mc, Vietnam standard type, T18 roofing machine

Quick Detail:

  1. Thickness : 0.42mm-0.6mm
  2. Material : Pre-painted Coil, 345Mpa
  3. Input width : 1000mm
  4. Effective width: 985mm
  5. Material weight : 5MT or as per request
  6. Coil inner diameter : 510mm
  7. Cutting way: by hydraulic group, no waste cut
  8. Cutting tolerance : ±1mm

Description/Technical Parameter details of complete line:

  • 5TX1250mm hydraulic de-coiler with/without coil car

Hydraulic system to expand coil inner hole, pump motor: 3KW

Coil OD= 510±30mm

Coil capacity: Max. 5Tons

Coil width Max. 1250mm

Taper wedge expand type

Driving motor to turn the coil, 3KW

  • Entry Roller & Manual Pre-shearing device (Un-powered)

To cut off the end of the final piece of sheet only

Working thickness: max. 0.6mm

  • Roll forming machine with cutting details as below table :
Suitable roll forming material Pre-painted Sheets, 245-550Mpa
Thickness range 0.42mm-0.6mm
Coil width 1250mm
Carriage Frame design Wall-plate-frame-design /New-stand-frame-design
Roll forming stages

6+1 stages

Including one stage for embossing
Material of forming roller

45# steel, CNC lathes, Hard Chrome Coated

Option : with roller heat treatment
Shafts Diameter Φ75mm
Main motor power 5.5Kw with reducer
Rolling speed of roll former 18m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power 3.0 Kw
Material of cutting blade Cr12, hear treatment as normal design
Electric Voltage Standard 415V/50Hz/3Ph or as the customer's requirements
Major Color of Machine Painted RAL 5015(Blue) or as per customer’s requirements
  • PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

  • Product Rack Un-powered, 3 units

Machine list:

  1. Hydraulic un-coiler with/without coil cart
  2. Normal speed roll former
  3. Hydraulic cutting device
  4. Run out table or automatic stacking device for quick packing
  5. Siemens PLC and touch screen, Schneider brand inverter

Features:

A trapezoidal roof panel roll forming machine is always adjustable for different feeding widths. You can make trapezoidal roof panels with different effective widths from different-width materials.

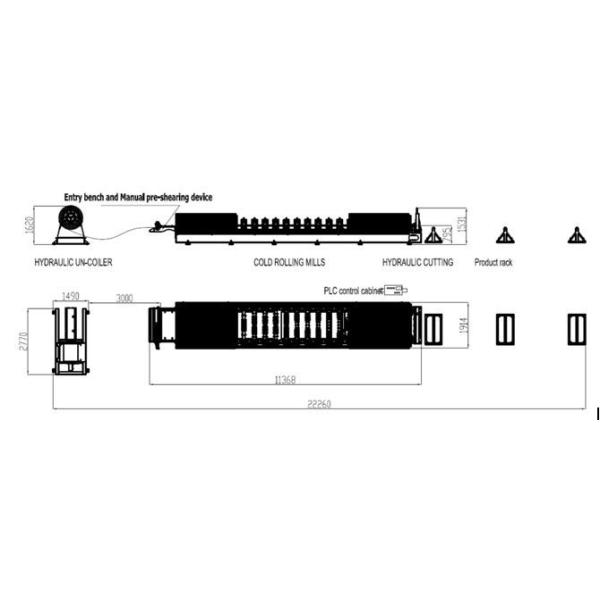

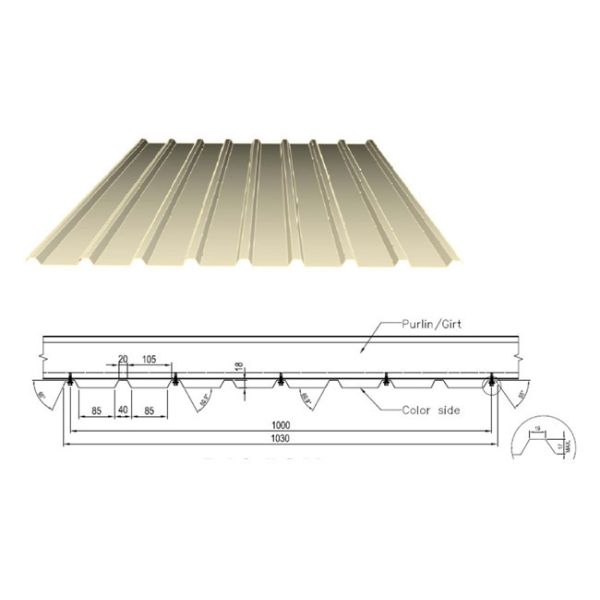

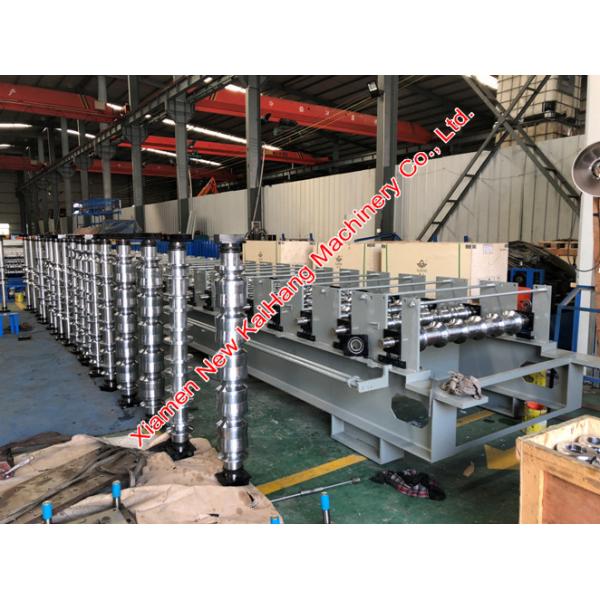

Profile Drawing/Layout/Equipment reference pictures:

Metal roofing/ wall profile forming mc, Vietnam standard type, T18 roofing machineMetal roofing/ wall profile forming mc, Vietnam standard type, T18 roofing machineMetal roofing/ wall profile forming mc, Vietnam standard type, T18 roofing machine
