Blue Auxiliary Equipment Coiler Rack / Un Winder Twin Head 2MT With Power
Blue Auxiliary Equipment Coiler Rack / Un Winder Twin Head 2MT With Power
Blue Auxiliary Equipment Coiler Rack / Un Winder Twin Head 2MT With Power
Blue Auxiliary Equipment Coiler Rack / Un Winder Twin Head 2MT With Power
Specifications
Brand Name :
NKH MACHINERY
Model Number :
1.5T*300MM
Certification :
CE/SONCAP/CSA
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10 UNITS/MONTH
Delivery Time :
10 WORKING DAYS
Packaging Details :
NUDE CARGOES WITH ROLL FORMER IN 20FT/40FT CONTAINER
Condition :
New
Tile type :
work with roll forming machine/building material machinery
Production capacity :
12-15m/min
Color :
Client's Request
Warranty :
12months
Use :
Roof/wall
Description

Coiler rack for trim/ flashing, twin head, 2MT, with power, un - winder for roof panel forming machine

Quick Detail:

  1. Thickness : 0.4mm-0.8mm, 0.8-1.2mm
  2. Material : GI,PPGI
  3. Input width : < 300mm
  4. Material weight : 2MT
  5. Rotation way: by driven motor
  6. Coil inner diameter : 470-510mm

Description/Technical Parameter details of the de-coiler

Link-connect expanding system

Coil Width= Max.300mm

Load capacity= Max.1.5Ton

Coil inner–diameter=420-550mm

Outside-diameter: Max. 1600mm

Retarding Motor to turn the coil, Motor: 1.5KW, frequency speed control

Features:

The de-coiler is touch the roll former speed by limit switch

To start/stop automatically

Suit with 15mpm roll former

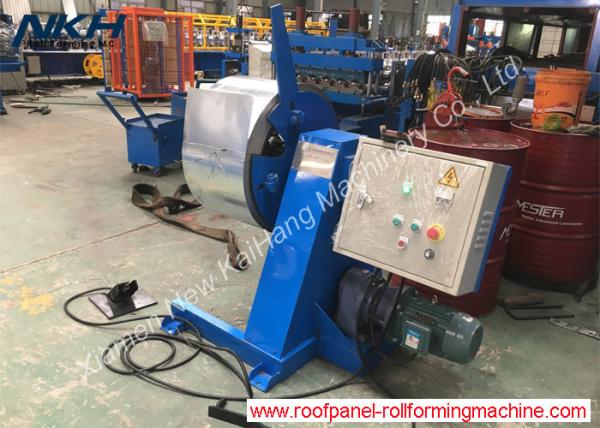

Profile Drawing/Layout/Equipment reference pictures:

Blue Auxiliary Equipment Coiler Rack / Un Winder Twin Head 2MT With PowerBlue Auxiliary Equipment Coiler Rack / Un Winder Twin Head 2MT With PowerBlue Auxiliary Equipment Coiler Rack / Un Winder Twin Head 2MT With Power
