Rectangular rainspout roll former, trim flashing roofing panel making machine

Brief Introduction of Downspout Roll Forming Machine:

A downpipe roll forming machine (square or round, rectangular or circle) is technically capable to be running both manually and automatically as per different customers’ needs. Manual running is most of time required for installation or trial, and auto running is made for the continuous production of required downpipes or downspouts.

A downspout roll forming machine generally consists of a manual de-coiler, feeding guide, roll forming machine, cutting tools (hydraulic cutting for square or rectangular downspouts, and fly-saw cutter for round or circle rainspouts), transmission system, PLC control cabinets and run out tables; also there will be Elbow machine optional for customers.

Quick Detail:

1. Thickness : 0.4-0.6mm

2. Material : pre-painted steel, galvanized steel, aluminum or cooper

3. Input width : 320mm

4. Material weight : 3MT

5. Coil inner diameter :470 mm

6. Roller material : 45#, CNC, chrome coated

7. Cutting material : Cr12, heat treatment

8. Cutting tolerance : ±1mm

Machine list:

1. 3T*600mm hydraulic un-coiler

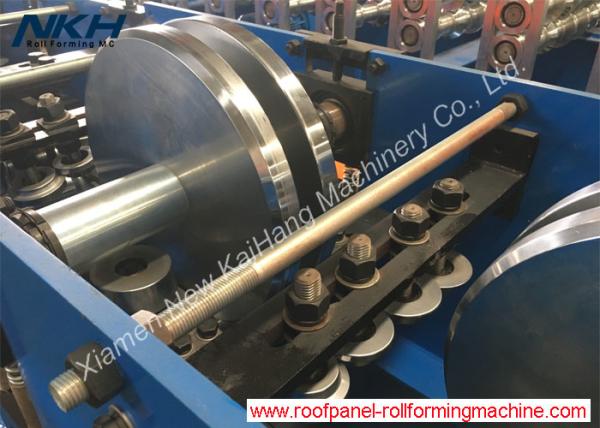

2. Roll forming machine

3. Hydraulic cutting device

4. Run out table

5. PLC control systems

Description/Technical Parameter details of complete line:

• 3TX600mm Hydraulic Un-Coiler

Hydraulic system for expansion coil-inner-hole with 4 palms

Link-connect expanding system

Pump power=1.5KW

Load capacity=3 Ton; Coil Inner – diameter =451-530 mm

Coil outer-diameter=Max. 1500 mm

Coiler Width=Max. 600 mm

• Roll forming machine with cutting details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack Un-powered, 4 meter long

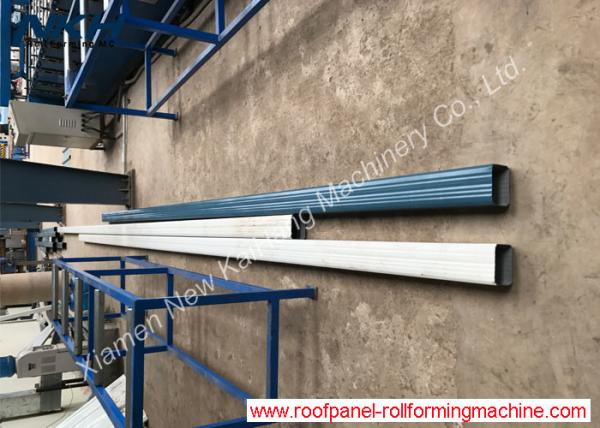

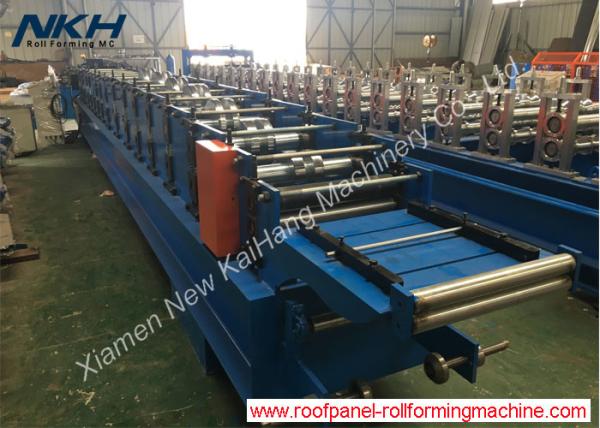

Profile Drawing/Layout/Equipment reference pictures:
