Zed section roll forming machine, roll former, for classic design, multi – sizes of Z purlin

Quick Detail:

1. Thickness : 1.5mm-3.0mm
2. Material : Galvanized sheets
3. Material weight : 5Mt
4. Coil inner diameter : 508mm
5. Driven way: by 18.5kw driven motor
6. Cutting way: by hydraulic power pack, post punch, post cut
7. Cutting tolerance : ±1mm

Application:

Compared to traditional purlins, steel purlins have so many advantages, they are light, easy to install, and recyclable for other buildings etc. Therefore, as we can see, in modern steel industrial buildings or prefab engineered buildings, people always use C purlins, Z purlins and sometime U purlins without flange stiffeners as well.

If there is no flange holes required, then the machine can adopt to post-punching, post-cutting design

Like c purlin roll forming machine, z steel purlin roll formers also is designed to produce the section channels of different sizes, but the change to make a different size z purlin is manual. Clients need to manually change the spacers installed between rolling tools, as well as the cutting dies.

Machine list:

1. Hydraulic De-coiler or Manual Un-coiler rack
2. Pre-leveling device
3. Roll forming machine
4. Hydraulic Post-punch & Post- cut device
5. Run out table
6. PLC control systems

Description/Technical Parameter details of complete line:

• 5TX600mm Hydraulic Un-coiler or manual de-coiler

You can adopt to :

Manual de-coiler

Hydraulic un-coiler

Hydraulic & Driven de-coiler

• Pre-Leveling Device

Pre-Level Device with 4 over 3 shafts to remove the Coil-set

Share the same motor with the roll former

• Roll forming machine with cutting details as below table :

• PLC Control System

Control the quantity & cutting length automatically

Combined with: Siemens brand PLC and Touch Screen

Schneider brand Inverter, Omron encoder, etc

Cut-to-length tolerance≤±1mm

Control voltage 24V

• Product Rack 4 meter long ,rolled type

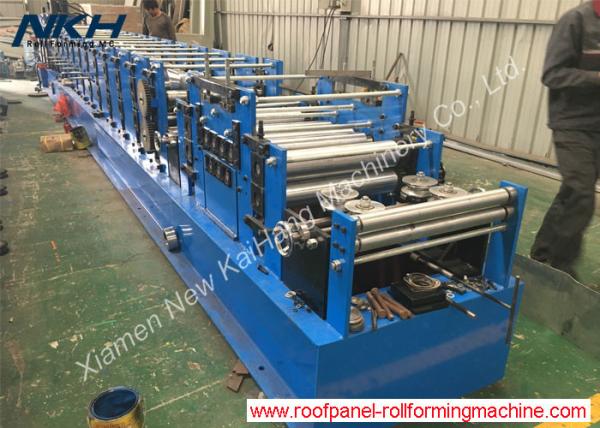

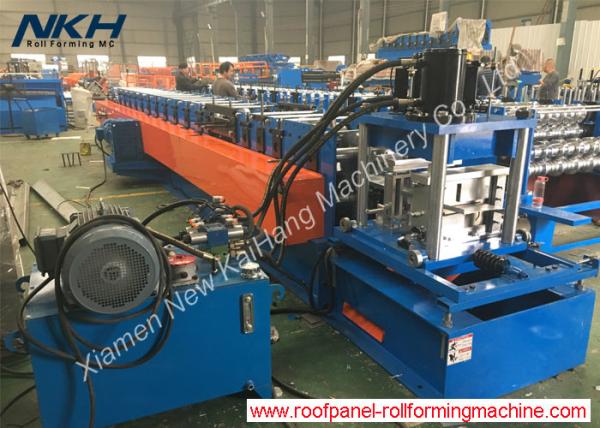

Profile Drawing/Layout/Equipment reference pictures:
