Specifications
Brand Name :
NKH MACHINERY
Model Number :
YX66-300-900
Certification :
CE
Place of Origin :
CHINA
MOQ :
01 set
Price :
negotication
Payment Terms :
T/T, , L/C
Supply Ability :
02 sets/month
Delivery Time :
60 working days
Packaging Details :
nude cargoes
Name :
Metal Tile Roofing Machine
Weight :
5T Or As Request
Shaft Material :
45#, High Precision
Control System :
PLC Control System
Roller Material :
45# Steel, CNC lathes, hard chrome coated
Cutting Blade Material :
Cr12, Heat Treatment
Usage :
Steel Construction
Product name :
Deck Floor Covering Cold Roll Forming Machine
Cutting blade material :
cr12 with quenched treatment
Raw material thickness :
0.7-1.5mm/0.7-1.0mm/1.2mm
Description

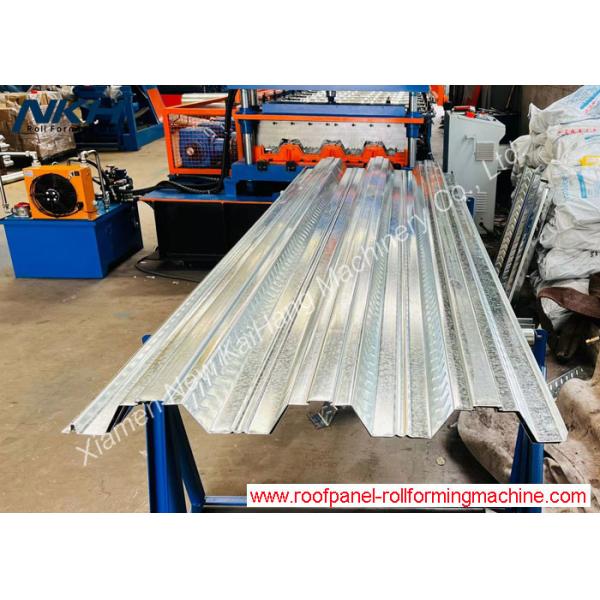

Floor Deck Making Machine Easy Operate, roll forming machine for building structure, with gera box on every stage

Floor Deck Making Machine Easy Operate, roll forming machine for building structure, with gera box on every stage

1. Description of floor decking roll forming machine:

The floor deck roll forming machine can form the flat sheet into a customized shape, the raw amterial is gi,ppgi,color steel.

The steel floor deck is widely used in power plants, power equipment companies, automobile exhibition halls, steel structure workshops,
cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand theaters, large supermarkets,
logistics centers, Olympic venues and gymnasium Steel structures.

Our factory is manufacturing high quality floor decking roll forming machine, and regularly exported to global world, especially to Europe and South Asia etc.

2. Technical details of floor decking roll forming machinery:

floor decking roll forming Machine Specifications
Weight About 15tons
Size About 13mx1.2mx1.3m(length x width x height)
Color Machine Main color: blue or can as your requirement
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 0.8-1.2mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 28 stations
Diameter of forming rollers shafts 95mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 18.5kw*2
Hydraulic unit motor power: 7.5kw
Electric voltage According to customer’s requirement

3. Main components of floor decking roll forming machine

Decoiler 1 Set
Guiding Equipment 1 Set
Roll Forming Unit 1 Set
Post Cutting Unit 1 Set
Hydraulic Station 1 Set
PLC Control System 1 Set
Reveiving Table 1 Set

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

Floor Deck Making Machine Easy Operate, roll forming machine for building structure, with gera box on every stage
