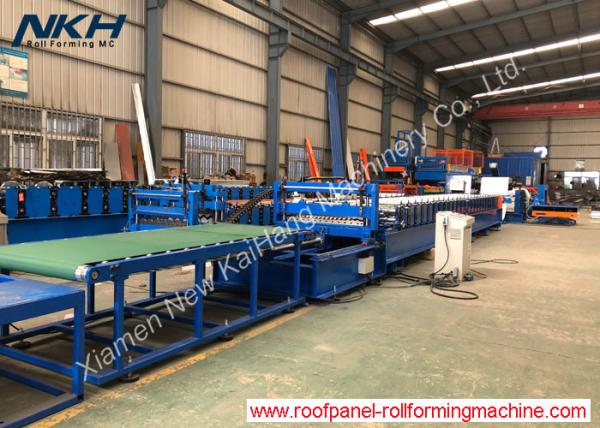

Full hard 1000mm-1250mm Corrugated Panel Roll Forming Machine Fully Automatic,Corrugated Sheet Roll Forming Machine
Full hard 1000mm-1250mm Corrugated Panel Roll Forming Machine Fully Automatic,Corrugated Sheet Roll Forming Machine
Full hard 1000mm-1250mm Corrugated Panel Roll Forming Machine Fully Automatic,Corrugated Sheet Roll Forming Machine
Full hard 1000mm-1250mm Corrugated Panel Roll Forming Machine Fully Automatic,Corrugated Sheet Roll Forming Machine
Full hard 1000mm-1250mm Corrugated Panel Roll Forming Machine Fully Automatic,Corrugated Sheet Roll Forming Machine
Full hard 1000mm-1250mm Corrugated Panel Roll Forming Machine Fully Automatic,Corrugated Sheet Roll Forming Machine
Full hard 1000mm-1250mm Corrugated Panel Roll Forming Machine Fully Automatic,Corrugated Sheet Roll Forming Machine
Full hard 1000mm-1250mm Corrugated Panel Roll Forming Machine Fully Automatic,Corrugated Sheet Roll Forming Machine
Full hard 1000mm-1250mm Corrugated Panel Roll Forming Machine Fully Automatic,Corrugated Sheet Roll Forming Machine
Full hard 1000mm-1250mm Corrugated Panel Roll Forming Machine Fully Automatic,Corrugated Sheet Roll Forming Machine
Full hard 1000mm-1250mm Corrugated Panel Roll Forming Machine Fully Automatic,Corrugated Sheet Roll Forming Machine
Full hard 1000mm-1250mm Corrugated Panel Roll Forming Machine Fully Automatic,Corrugated Sheet Roll Forming Machine
Specifications
Brand Name :
NKH MACHINERY
Model Number :
YX17.5-1200
Certification :
CE/SONCAP/CSA
Place of Origin :
CHINA
MOQ :
01
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10 UNITS/MONTH
Delivery Time :
40 WORKING DAYS
Packaging Details :
NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Name :
Corrugated Panel Roll Forming Machine
Raw Material :
Pre-Painted Sheets
Shaft Material :
45#, High Precision
Control System :
PLC Control System
keyword :
corrugated steel panel roll forming machine
Cutting Blade Material :
Cr12, Heat Treatment
Description

Full hard 1000mm-1250mm Corrugated Panel Roll Forming Machine Fully Automatic,Corrugated Sheet Roll Forming Machine

Corrugated Panel Roll Forming Machine is designed to make ibr and corrugated roof sheet.

If you want to start roofing business,ibr and corru roof sheet are best choices for you.In african market,to be more competitive is the best way.So 0.18mm thickness is good for you.

Corrugated Panel Roll Forming Machine parameter

Suitable material Color steel sheet , galvanized steel sheet,
Main motor power 11KW with Cycloidal reducer
Hydraulic station power 5.5KW
Hydraulic oil 36#
Thickness of material 0.2mm~0.5mm
Diameter of principal axis Φ95mm
Material expand width 1000mm-1320mm
Electric tension 415V 3phase 50HZ or as the customer's requirements
Material of roller High grade 45# forged steel
Rolling galvanization thickness 0.03mm
Processing speed 25m/min
Processing precision within 1.00mm
Material of cutting blade Cr12 mould steel with quenched treatment
Kind of drive 0.6 inch chain link bearing model 6210
Roller station 24 Rollers

Main Features

1. This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.

2. Rollforming process:uncoiler, rollforming, forming step effect, cut to length.

3. Fully Automatic Control System with PLC.

4. Easy operation: Key in the length and quantity on the control panel.

5. One year warranty.

6. we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.

7. One roll forming machine only can produce one profile.
