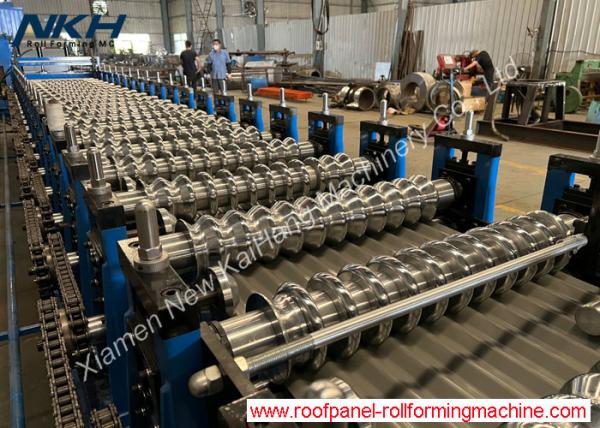

High Stress Metal Corrugated Roll Forming Machine , Corrugated Roofing Sheet Making Machine
High Stress Metal Corrugated Roll Forming Machine , Corrugated Roofing Sheet Making Machine
High Stress Metal Corrugated Roll Forming Machine , Corrugated Roofing Sheet Making Machine
High Stress Metal Corrugated Roll Forming Machine , Corrugated Roofing Sheet Making Machine
High Stress Metal Corrugated Roll Forming Machine , Corrugated Roofing Sheet Making Machine
High Stress Metal Corrugated Roll Forming Machine , Corrugated Roofing Sheet Making Machine
High Stress Metal Corrugated Roll Forming Machine , Corrugated Roofing Sheet Making Machine
High Stress Metal Corrugated Roll Forming Machine , Corrugated Roofing Sheet Making Machine
High Stress Metal Corrugated Roll Forming Machine , Corrugated Roofing Sheet Making Machine
High Stress Metal Corrugated Roll Forming Machine , Corrugated Roofing Sheet Making Machine
High Stress Metal Corrugated Roll Forming Machine , Corrugated Roofing Sheet Making Machine
High Stress Metal Corrugated Roll Forming Machine , Corrugated Roofing Sheet Making Machine
High Stress Metal Corrugated Roll Forming Machine , Corrugated Roofing Sheet Making Machine
High Stress Metal Corrugated Roll Forming Machine , Corrugated Roofing Sheet Making Machine
Specifications
Brand Name :
NKH MACHINERY
Model Number :
YX18-76.2-762
Certification :
CE/SONCAP
Place of Origin :
CHINA
MOQ :
01
Price :
Negotication
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
02 SET/MONTH
Delivery Time :
80 WORKING DAYS
Packaging Details :
NUDE CARGOES
Product Name :
Roof Panel Roll Forming Machine
Weight :
10T Or As Request
Control System :
PLC Control System
Roller Material :
45# Steel
Cutting Blade Material :
Cr12, Heat Treatment
Usage :
Steel Construction
Description

High Stress Metal Corrugated Roll Forming Machine , Corrugated Roofing Sheet Making Machine

Features of Roof Panel Roll Forming Machine​

(1). Main Forming Machines;

(2). 5 Tons Manual Uncoiler;

(3). Hydraulic System;

(4).PLC Computer Controlling System With Touching Screen (Brand: Schneider for PLC, touching

scr een, cencorder and frequency changer)

Product parameter

1.Weight capacity of decoiler 4T
2.Appearance Size(L*W*H) 9500*1500*1600
3.Raw material /feeding sheet material Colored steel & galvanized steel
4.Roller material 45#, heat treatment, hard chrome coated
5.Shaft material 45 control system joint-hidden roof panel roll forming machine high grade steel
6.Kind of drive Chain drive
7.Cutting system Automatic hydyaulic cutting, stop to cut
8.Cutting blade material Cr12 high grade steel
9.Frame material 450 H-high grade steel
10.Control system Totally automatic PLC control system
11.Main power 11kw
12.Roller stations 20 rows
13.Speed of production 40m/min
14.Thickness of colored steel 0.4-0.8mm
15.Feeding width 940mm
16.Effectiv width 762mm
15.Frame material 450 H-steel

High Stress Metal Corrugated Roll Forming Machine , Corrugated Roofing Sheet Making MachineHigh Stress Metal Corrugated Roll Forming Machine , Corrugated Roofing Sheet Making MachineHigh Stress Metal Corrugated Roll Forming Machine , Corrugated Roofing Sheet Making MachineHigh Stress Metal Corrugated Roll Forming Machine , Corrugated Roofing Sheet Making Machine
