Specifications
Brand Name :
Saibo
Model Number :
YX275-640
Certification :
CE/IS09001/SGS
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
280 sets per year
Delivery Time :
65 working days after received deposit
Packaging Details :
Suitable for ocean shipment
Product Name :
K-Span Roll Forming Machine
Usage :
Building
Steel thickness :
0.8-1.8mm
Power :
15KW+11KW+4.4KW
Roller material :
#45 forged steel with chrome
Station :
18 stations
Container need :
1X40GP+1X20GP
Shaft :
￠90mm
Description

YX275-640 K-Span Roll Forming Machine

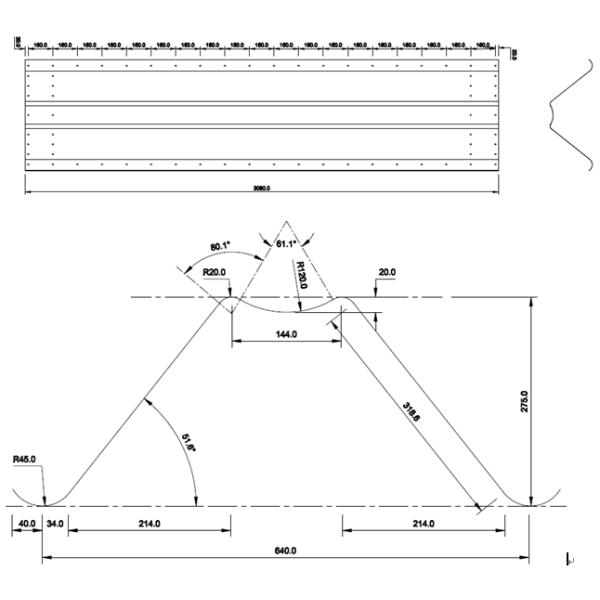

Profile:

All of our machine profile is customized, below profile is only for your reference.

1. Coil width: according the profile

2. Effective width: 640mm

3. Thickness: 0.8-1.8mm

Roof Panel Cable Tray Roll Forming Machine Hydraulic Punching 1.5 Inch Chain

Layout:

Roof Panel Cable Tray Roll Forming Machine Hydraulic Punching 1.5 Inch Chain

Hydraulic de-coiler—Servo Feeding—Punching—Roll Forming—Cutting—Out table

Specifications:

Item NO

Description

Offered specification
1 Roll Forming Machine K-span
2 Coil width According the profile
3 Rolling Speed 10-15m/min(not include cutting and punching time)
4 Rolling Thickness 0.8-1.8mm
5 Control System PLC (Panasonic) as list in the note
6 Un Coiler 5T hydraulic de-coiler
7 Servo feeding 4.4KW
8 Punching 11kw
9 Roller Stations About 18 stations (according the final design)
10 Roller Material 45# forge steel, coated with chrome
11 Shaft Material and DIA ￠90mm, material is 45# forge steel
12 Post cutting Hydraulic cutting after forming
13 Maim Motor Power 15kw
14 Hydraulic Station Power 11kw
15 Hydraulic Pressure 16-20Mpa adjustable
16 Material Of Cutting Cr12Mov quenching 58-62℃
17 Structure Of The Stations Guide pillar
18 Tolerance 3m+-1.5mm
19 Electric Source

380V, 50HZ,3 phase

According to customer’s require
20 Way Of Drive By 1.5inch chain
21 Color Of The Machine Yellow and blue
22 Size of the machine L*W*H about 10m*1.5m*1.2m
23 Container Need 1x40 feet + 1x20 feet


Main Features

1. Simple structure in linear type ,easy in installation and maintenance.

2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.

3. Running in a high automatization and intellectualization, no pollution

4. No need foundation, easy operation

Photos of each component
