Durable Ceiling Roll Forming Machine 5.5kw With Film System 15 Stations
Durable Ceiling Roll Forming Machine 5.5kw With Film System 15 Stations
Durable Ceiling Roll Forming Machine 5.5kw With Film System 15 Stations
Durable Ceiling Roll Forming Machine 5.5kw With Film System 15 Stations
Durable Ceiling Roll Forming Machine 5.5kw With Film System 15 Stations
Durable Ceiling Roll Forming Machine 5.5kw With Film System 15 Stations
Durable Ceiling Roll Forming Machine 5.5kw With Film System 15 Stations
Durable Ceiling Roll Forming Machine 5.5kw With Film System 15 Stations
Specifications
Brand Name :
Saibo
Model Number :
YX50-300
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, L/C
Supply Ability :
300 sets per year
Delivery Time :
70 working days after received deposit
Packaging Details :
Suitable for ocean shipment
Product Name :
Stud Panel Roll Forming Machine
Power :
4KW+3kw
Size Of purlin :
YX50-300
Steel thickness :
0.2-0.5mm
Decoiler :
Manual or hydraulic
Station :
15 stations
Roller material :
45# forge steel, surface with chrome
Drive :
By chain
Description

Manual Decoiler Stud Roll Forming Machine 5.5kw with Film System

1. Specification of the material

1 Suitable Material

PI/PPGI
2 Width of the raw material 450mm
3 Thickness 0.2mm-0.5mm

2. Machine Detailed Parameters

1 Roll Forming

YX50-300

2 Machine structure

Wall panel
3 Total power

Motor power-4kw

Hydraulic power-3kw
4 Roller stations

bout 15 stations
5

Productivity

 0-15m/min
6

Drive system

 By chain
7

Diameter of shaft

 ￠56mm solid shaft
8

Voltage

 380V 50Hz 3phases (Customized)
9

Container need

 20GP container
10

Color Of The Machine

Yellow and blue
11

Deliver Time

 70 days
12

Terms Of Payment

 30%T/T 70% pay before shipment

3. Profile drawing

Durable Ceiling Roll Forming Machine 5.5kw With Film System 15 Stations

4. The Chart of Process Flow

Durable Ceiling Roll Forming Machine 5.5kw With Film System 15 Stations

5. Specification of Components

(1) 3T Manual Un-coiler

  • Adopt automatic hydraulic system for expand
  • Width of feeding: 350mm
  • Capability: 3 Ton
  • Bound of expand &fight: 380mm—520mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual

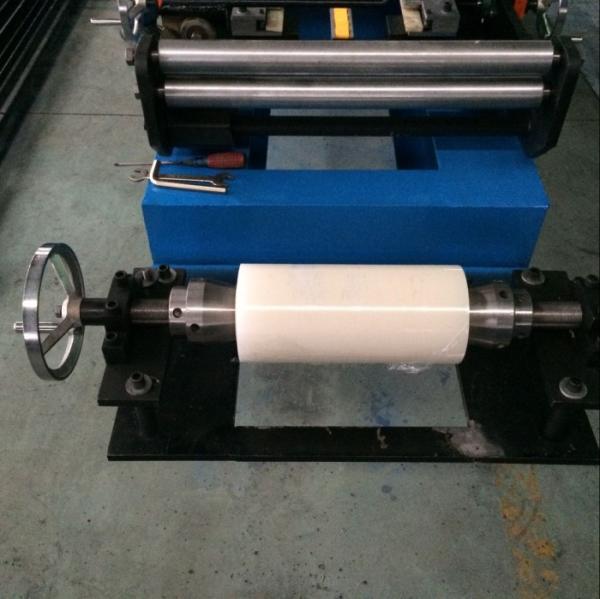

(2) Film System

  • Machine adopt film system in order to protect the coil

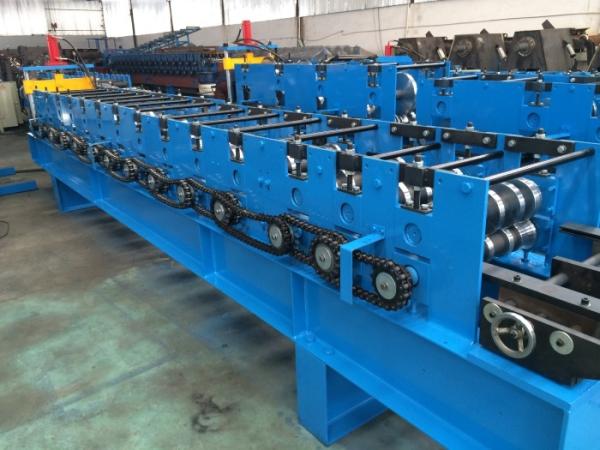

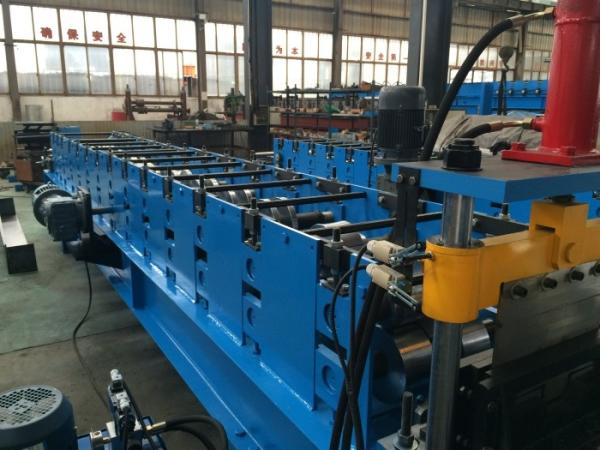

(3) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ￠56mm material: SAE1045 with quenching and tempering
  • Main frame by 350H beam welding
  • Machine structure: Wall panel

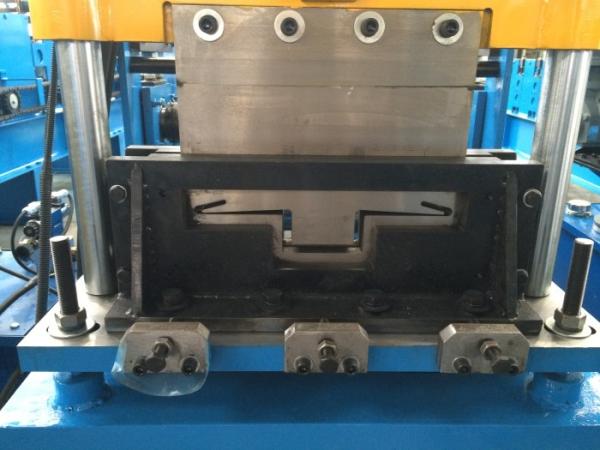

(4) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Uses two hydraulic cylinders for operation.
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,3KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product

(5) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization
