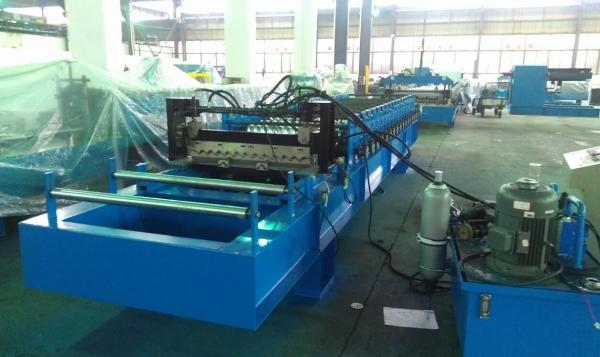

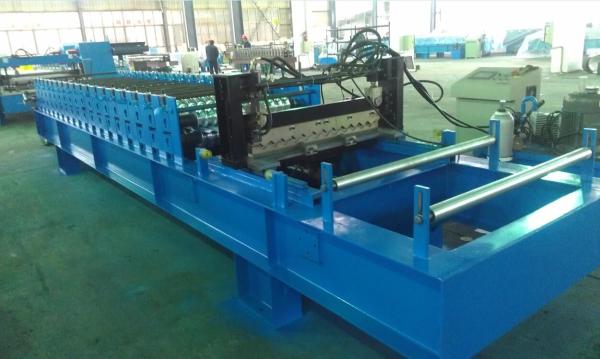

High Speed 0 - 25m / min Corrugated Roll Forming Machine Fly Cutting No Stop
High Speed 0 - 25m / min Corrugated Roll Forming Machine Fly Cutting No Stop
High Speed 0 - 25m / min Corrugated Roll Forming Machine Fly Cutting No Stop
High Speed 0 - 25m / min Corrugated Roll Forming Machine Fly Cutting No Stop
High Speed 0 - 25m / min Corrugated Roll Forming Machine Fly Cutting No Stop
High Speed 0 - 25m / min Corrugated Roll Forming Machine Fly Cutting No Stop
Specifications
Brand Name :
Saibo
Model Number :
YX17-76.3-1068.2
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T or L/C
Supply Ability :
300 sets per year
Delivery Time :
70 working days after received deposit
Packaging Details :
Suitable for ocean shipment
Product Name :
Corrugated Roll Forming Machine
Power :
7.5KW+5.5kw
Size Of purlin :
YX17-76.3-1068.2
Steel thickness :
0.3-0.8mm
Decoiler :
electrical
Station :
About 18 stations
Roller material :
ASTM1045 chrome plated surface with chrome
container :
40GP
cutting :
fly cutting, no stop
Speed :
0-25m/min
Description

YX17-76.3-1068.2 High Speed Corrugated Roll Forming Machine fly cutting no stop

YX17-76.3-1068.2 Corrugated Roll Forming Machine

1. Specification of the material

1 Suitable Material PI/ PPGI
2 Width of the raw material 1250mm
3 Thickness 0.3-0.8mm


2. Machine Detailed Parameters

1

Roll Forming Machine

 YX17-76.3-1068.2
2

Machine structure

 Wall board structure
3 Total power

Motor power-7.5kw

Hydraulic power-5.5kw
4

Roller stations

 About 18 stations
5

Productivity

 0-25m/min
6

Drive system

 By chain
7

Diameter of shaft

 ￠70mm solid shaft
8

Voltage

 380V 50Hz 3phases (Customized)
9

Color Of The Machine

 Bule and yellow
10

Deliver time

 60 days
11

Terms Of Payment

 30%T/T 70% pay before shipment

12

 cutting fly cutting, no stop

3. Profile drawing

High Speed 0 - 25m / min Corrugated Roll Forming Machine Fly Cutting No Stop

4. The Chart of Process Flow

Manual Decoiler—Roll Forming—Fly Cutting—Out table

High Speed 0 - 25m / min Corrugated Roll Forming Machine Fly Cutting No Stop

5. Specification of Components

(1) 5T electrical Un-coiler

  • Width of feeding: 1000mm
  • Capability: 5 Ton
  • Inter diameter: 500-590mm
  • Maximal out diameter: 1500mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: motor, 5.5kw

(2) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ￠70mm material: SAE1045 with quenching and tempering

(3) Machine Structure

  • Main frame by 350H beam welding
  • Machine structure: wall board

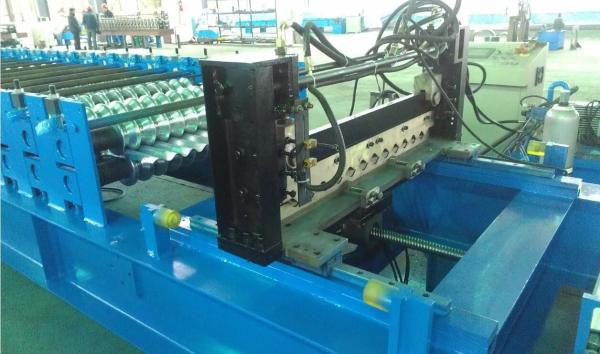

(4) Hydraulic fly cutting system

  • hydraulic fly cutting, no stop
  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,4KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product

(5) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization
  • Touch screen: MCGS
  • Inverter: YASKAWA
