16 Stations Top Hat Roll Forming Machine With Framous Electric Elements with GI Steel 2.0mm Thickness
16 Stations Top Hat Roll Forming Machine With Framous Electric Elements with GI Steel 2.0mm Thickness
16 Stations Top Hat Roll Forming Machine With Framous Electric Elements with GI Steel 2.0mm Thickness
16 Stations Top Hat Roll Forming Machine With Framous Electric Elements with GI Steel 2.0mm Thickness
16 Stations Top Hat Roll Forming Machine With Framous Electric Elements with GI Steel 2.0mm Thickness
16 Stations Top Hat Roll Forming Machine With Framous Electric Elements with GI Steel 2.0mm Thickness
16 Stations Top Hat Roll Forming Machine With Framous Electric Elements with GI Steel 2.0mm Thickness
16 Stations Top Hat Roll Forming Machine With Framous Electric Elements with GI Steel 2.0mm Thickness
Specifications
Brand Name :
Saibo
Model Number :
Hat profile
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 set
Supply Ability :
negotiation
Delivery Time :
60 working days after received deposit
Packaging Details :
Suitable for ocean shipment
PLC brand :
Mitsubishi
Motor brand :
Siemens
Encoder :
Omron
Solenoid valve :
Yuken
Transducer :
YASKAWA
Touch screen :
Mitsubishi
Limited switch :
Panasonic
Servo motor :
Misubishi
Button :
Panasonic
Container need :
40GP
Machine color :
For customer request
Description

16 Stations with Rectify Top Hat Roll Forming Machine With Framous Electric elements

How to maintain the machine
1. Gear box
① Every three months check the oil in the gear box if it is enough.
② Every six months check the oil in the gear box if it is dirty, if dirty please replace all. Noted, before you change the oil, put away the old oil first, then add new gear oil.
③ Gear oil No: 330# gear oil.
④ How much gear oil you need to add: when add the gear oil, added to the viewport position is ok.
2. Reducer
① Every three months check the oil in the reducer if it is enough.
② Every six months check the oil in the reducer if it is dirty, if dirty please replace all. Noted, before you change the oil, put away the old oil first, then add new gear oil.
③ Gear oil No: 330# gear oil.
④ How much gear oil you need to add: when add the gear oil, added to the viewport position is ok.
3. Screw of cutting system
① Add high speed grease.
② According the attrition of the grease, usually 30 days add one time.

Spectification

1Roller materialGcr15
2Roller station16 stations+ one station of rectify
3Shaft diameter￠70mm
4Machine structurewire electrode cutting
5Machine framewhole plate welding
6Feeding modeFeeding is adjustable by hand wheel
7Machine power30kw+11kw
8Servo power4kw
9Material of blade mouldCr12, 58-62 HRC hardness
10Cutting systemhydraulic track cutting system
11Suitable materialGi, 0.8-2.0mm
12Driven systemby gear box
13Speed50m/min
14Flatten system7 rollers, Up 3 rollers, down 4 rollers
15Machine include auto stacker
16Machine include 3T double head hydraulic un-coiler
17Machine include cooling system


Work flow
3T Double head hydraulic de-coiler→ Flatten→ Roll forming→ Track cutting→ finished supporter.
16 Stations Top Hat Roll Forming Machine With Framous Electric Elements with GI Steel 2.0mm Thickness
After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one
year.

Machine loading,packing and shipping
Usually the machies will be transported to the customer's workshop by shipping in containers. Sometimes, it aslo can be deliveried by train containers.
The container that we are use are commonly 20 feet and 40 feet containers. 2 feet and 40 feet high containers and top open containers are used as well.
It depends on the machines the customer ordered. We will try our best to find a most economical way for you.

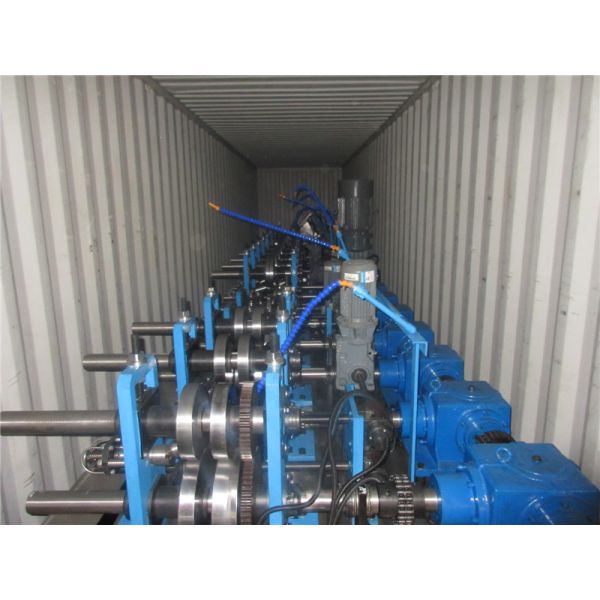

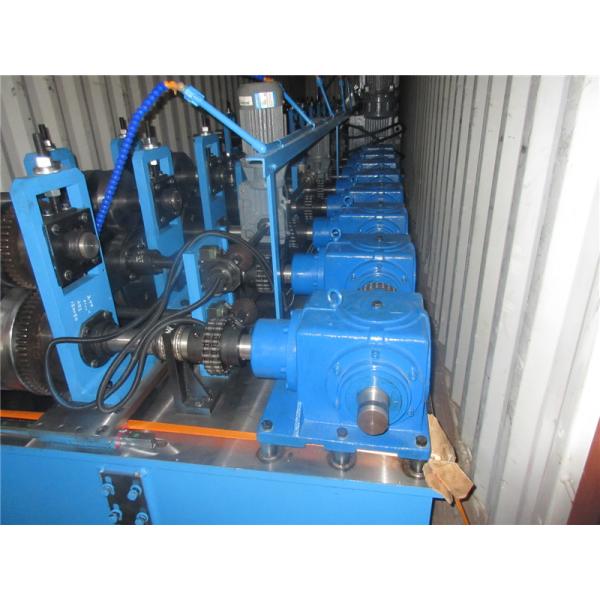

Machine lodaing pictures
16 Stations Top Hat Roll Forming Machine With Framous Electric Elements with GI Steel 2.0mm Thickness
16 Stations Top Hat Roll Forming Machine With Framous Electric Elements with GI Steel 2.0mm Thickness

Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
