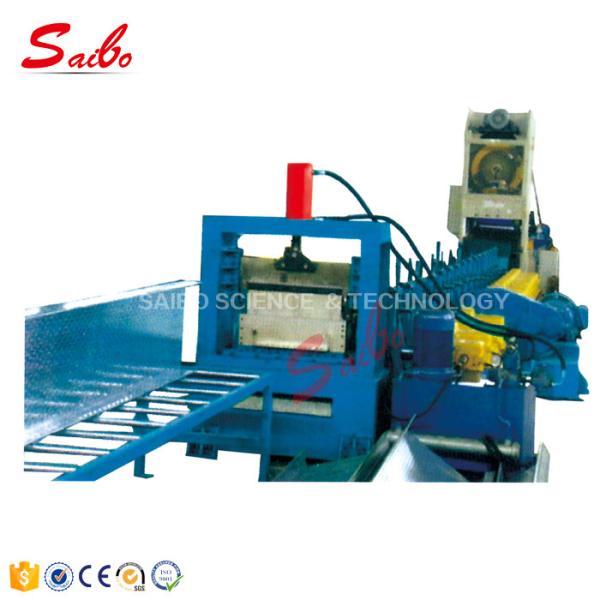

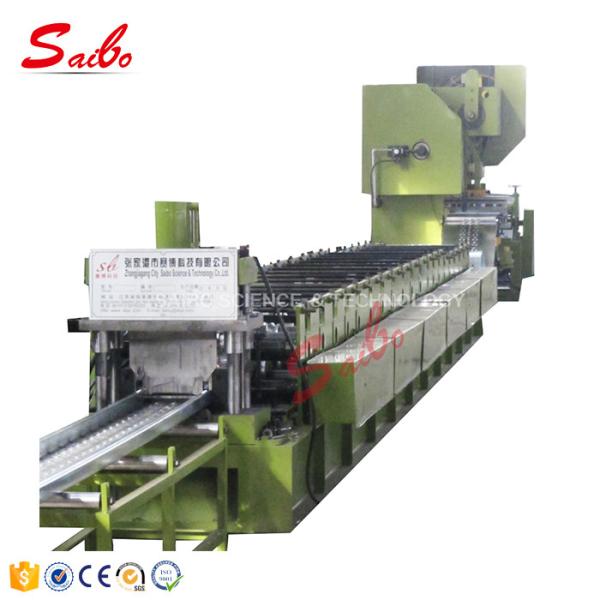

Adjustable Metal Cable Tray Roll Forming Machine With Wire Electrode Cutting Structure
Adjustable Metal Cable Tray Roll Forming Machine With Wire Electrode Cutting Structure
Adjustable Metal Cable Tray Roll Forming Machine With Wire Electrode Cutting Structure
Adjustable Metal Cable Tray Roll Forming Machine With Wire Electrode Cutting Structure
Adjustable Metal Cable Tray Roll Forming Machine With Wire Electrode Cutting Structure
Adjustable Metal Cable Tray Roll Forming Machine With Wire Electrode Cutting Structure
Adjustable Metal Cable Tray Roll Forming Machine With Wire Electrode Cutting Structure
Adjustable Metal Cable Tray Roll Forming Machine With Wire Electrode Cutting Structure
Specifications
Brand Name :
Saibo
Model Number :
Difference size
Certification :
CE/IS09001/SGS
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
280 sets per year
Delivery Time :
65 working days after received deposit
Packaging Details :
Suitable for ocean shipment
Product Name :
Metal Tray Production Line
Usage :
Building
Steel thickness :
0.55-1.5mm
Power :
15KW+5.5KW
Roller material :
Gcr15, surface with chrome, HRC58-62 degree
Station :
21 stations
Drive system :
By chain
Shaft :
￠70mm
Description

Metal Tray Production Line

1. Profile drawing:

Size 1: 50x50mm

Adjustable Metal Cable Tray Roll Forming Machine With Wire Electrode Cutting Structure

Size2: 600x50/80/100mm

Adjustable Metal Cable Tray Roll Forming Machine With Wire Electrode Cutting Structure

Size3: cover

Adjustable Metal Cable Tray Roll Forming Machine With Wire Electrode Cutting Structure

Adjustable Metal Cable Tray Roll Forming Machine With Wire Electrode Cutting Structure

No Specification of the material
1 Suitable Material

Zink Steel, 0.55-1.5mm, steel grade: 220-320Mpa

Stainless steel ,0.55mm-0.8 mm
2 Width of the raw material ≤850 mm
3 Thickness

Zink Steel, 0.55-1.5mm

Stainless steel ,0.55mm-0.8 mm

2. Machine Detailed Parameters:

1 Machine structure Wire electrode cutting structure
2 Change size By hand wheel
3 Total power

Main Power: 15KW

Hydraulic Power: 5.5kw
4 Roller stations About 21 stations
5 Forming speed 0-15m/min
6 Drive system By Chain
7 Diameter of shaft ￠70mm solid shaft
8 Voltage 380V 50Hz 3phases

3. The Chart of Process Flow

Adjustable Metal Cable Tray Roll Forming Machine With Wire Electrode Cutting Structure

5T hydraulic de-coiler—flatten—servo feeding& Punching—Servo Feeding& punching& cutting—motorized conveyor—roll forming—out table

4. Specification of Components

No Technical Specification & Remark
1

5T Hydraulic un-coiler

Adjustable Metal Cable Tray Roll Forming Machine With Wire Electrode Cutting Structure
  • Width of feeding: 1250mm
  • Capability: 5 Ton
  • Inter diameter: 470-520mm
  • Maximal out diameter: 1500mm
  • Coil placement in the coil holder: hydraulic hoist
  • Working speed: 0--20m/min adjustable
  • Main motor power: 5.5KW AC motor
  • Hydraulic power: 4kw
  • Color: blue
  • Quantity: 1
2

Flatten

Adjustable Metal Cable Tray Roll Forming Machine With Wire Electrode Cutting Structure

  • 7 rollers for leveling, up 3 rollers, down 4 rollers
  • Power: 7.5KW
3

Servo feeding& punching machine

Adjustable Metal Cable Tray Roll Forming Machine With Wire Electrode Cutting Structure

Adjustable Metal Cable Tray Roll Forming Machine With Wire Electrode Cutting Structure

Servo machine:

  • Machine adopt servo feeding and punching machine to make high speed and accuracy
  • Brand of servo: Yaskawa
  • Servo power: 4kw

Punching machine:

Description:

  • Machine adopt servo feeding and punching machine to make high speed and accuracy

Technology details of punching machine:

  • Punching machine carrying capacity 160T
  • Punching machine adopt continue punching
  • Pneumatic punching machine
  • Punching mold:three sets of molds
  • Brand of punching machine: Yang Li
4

Servo feeding& hydraulic punching& cutting

Adjustable Metal Cable Tray Roll Forming Machine With Wire Electrode Cutting Structure
  • Servo feeding system
  • This system adopt servo feeding to make high speed and precision
  • Servo power: 4KW (Brand: Yaskawa)
  • Punching system
  • Base on customer provide punching drawing, this machine need adopt one unit hydraulic punching station to punching gap.
  • The punches and dollies will be CR-12, hardness HRC 58-62.
  • Cutting system
  • Cutting will be flat cutting so no need to change the cutting blade when make different sizes.
  • Hydraulic power: 5.5kw
5

Motorized conveyor

Adjustable Metal Cable Tray Roll Forming Machine With Wire Electrode Cutting Structure
  • Maximal length: 8m
  • Width: about 850mm which base on profile request
  • Power: 3KW AC motor
  • Conveyor table with roller moving
6

Main roll forming machine

Adjustable Metal Cable Tray Roll Forming Machine With Wire Electrode Cutting Structure
  • Roller material: Gcr15, surface with chrome, HRC58-62 degree
  • Shaft diameter: ￠70mm, material: SAE1045 with tempering
  • Main power: 15KW
  • Change size: one is fixed, one is adjusted by hand wheel.
  • To avoid accidents, the driven parts will be covered with the protective cover
7

Machine structure:

Adjustable Metal Cable Tray Roll Forming Machine With Wire Electrode Cutting Structure
  • Main frame by 350H beam welding
  • Machine structure: wire-electrode cutting
  • Transmission: by chain
8

Hydraulic System

Adjustable Metal Cable Tray Roll Forming Machine With Wire Electrode Cutting Structure
  • Hydraulic power: 5.5kw
  • Working pressure: 20Mpa adjustable
  • Solenoid valve: 2 groups
  • Hydraulic oil: 46# hydraulic oil
  • Quantity :1
9

Computer Control Cabinet

Adjustable Metal Cable Tray Roll Forming Machine With Wire Electrode Cutting Structure

  • Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • Control panel: Button-type switch and touch screen
  • Unit of length: millimeter
  • PLC brand: Panasonic
10

Out table

Adjustable Metal Cable Tray Roll Forming Machine With Wire Electrode Cutting Structure
  • Jointed by steel tube
  • Maximal length: 8m
  • Quantity: 1 unit
11

Spare Parts

Adjustable Metal Cable Tray Roll Forming Machine With Wire Electrode Cutting Structure
  • Bearing: 2 pieces.
  • Limit switch: 2 pieces
  • Relay: 2 pieces.
  • Oil tube: 1 piece.
  • Chain: 1 piece
  • Screws and nuts: some.
  • Tools: spanner, hex spanner and adjustable wrench and other correlative adjust machine tools

5. Packing & Delivery

  • Deliver time: take goods after receive deposit 80 days
  • Packing: suitable of ocean transportation

6. Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3: Air ticket, transportation cost, hotel, meals and 100USD per day shall be for purchaser’s account if manufacturer’s engineer has to be for installation new machine.

7. Payment Term

30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
