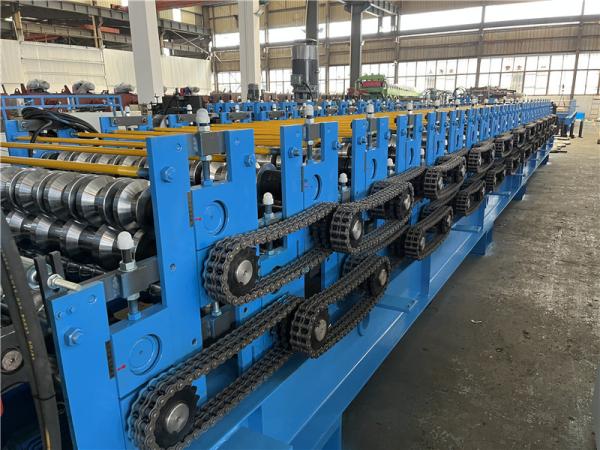

ASTM1045 Colored Steel Double Layer Panel Roll Former
ASTM1045 Colored Steel Double Layer Panel Roll Former
Specifications
Brand Name :
Saibo
Model Number :
YX19-76-684
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T or L/C
Supply Ability :
300 sets per year
Delivery Time :
70 working days after received deposit
Packaging Details :
Suitable for ocean shipment
Product Name :
Corrugated Roll Forming Machine
Power :
7.5KW+4kw
Size Of purlin :
YX19-76-684
Steel thickness :
0.3-0.8mm
Decoiler :
c
Station :
About 16 stations
Roller material :
ASTM1045 chrome plated surface with chrome
container :
20GP
Description

Colored Steel Metal Roof and Wall Panel Double Layer Roll Forming Machine line

YX19-76-684 Corrugated Roll Forming Machine

1. Specification of the material

1 Suitable Material PI/ PPGI
2 Width of the raw material 845mm
3 Thickness 0.3-0.8mm


2. Machine Detailed Parameters

1

Roll Forming Machine

 YX19-76-684
2

Machine structure

 Wall board structure
3 Total power

Motor power-7.5kw

Hydraulic power-4kw
4

Roller stations

 About 16 stations
5

Productivity

 0-20m/min
6

Drive system

 By chain
7

Diameter of shaft

 ￠70mm solid shaft
8

Voltage

 380V 50Hz 3phases (Customized)
9

Color Of The Machine

 Bule and yellow
10

Deliver time

 60 days
11

Terms Of Payment

 30%T/T 70% pay before shipment

3. Profile drawing

ASTM1045 Colored Steel Double Layer Panel Roll Former

4. The Chart of Process Flow

Manual Decoiler—Roll Forming—Cutting—Out table

ASTM1045 Colored Steel Double Layer Panel Roll Former

5. Specification of Components

(1) 5T electrical Un-coiler

  • Width of feeding: 1000mm
  • Capability: 5 Ton
  • Inter diameter: 500-590mm
  • Maximal out diameter: 1500mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: motor, 5.5kw

(2) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ￠70mm material: SAE1045 with quenching and tempering

(3) Machine Structure

  • Main frame by 350H beam welding
  • Machine structure: wall board

(4) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,4KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product

(5) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization
  • Touch screen: MCGS
  • Inverter: YASKAWA
