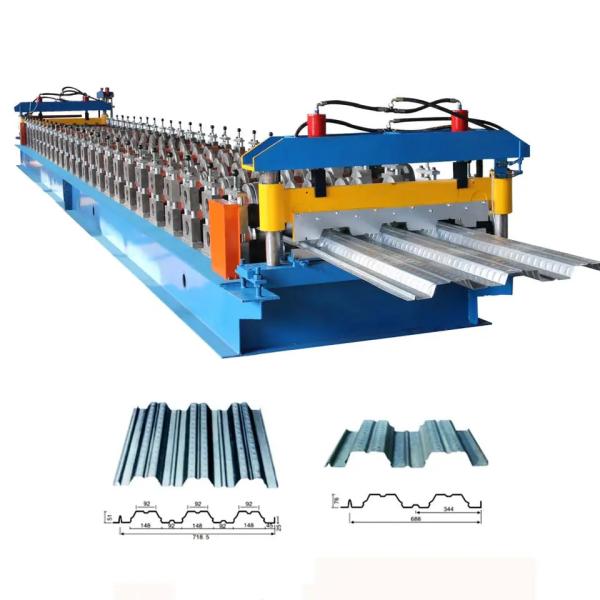

Full Automatic 0.3-0.8mm Steel Floor Deck Roll Forming Machine 5m/Min
Full Automatic 0.3-0.8mm Steel Floor Deck Roll Forming Machine 5m/Min
Full Automatic 0.3-0.8mm Steel Floor Deck Roll Forming Machine 5m/Min
Full Automatic 0.3-0.8mm Steel Floor Deck Roll Forming Machine 5m/Min
Full Automatic 0.3-0.8mm Steel Floor Deck Roll Forming Machine 5m/Min
Full Automatic 0.3-0.8mm Steel Floor Deck Roll Forming Machine 5m/Min
Specifications
Brand Name :
FMS
Model Number :
Floor Deck
Certification :
ISO CE
Place of Origin :
CHINA MAINLAND
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
20 Sets Per Month
Delivery Time :
30 Working Days
Packaging Details :
40' FLC
Product Name :
Full Automatic Metal Floor Deck Sheet Roll Forming Machine Production Line
Dimension(L*W*H) :
6500*1300*1100
Production Capacity :
8-12m/min
Rolling thinckness :
0.3-0.8mm
Core Components :
Motor, Pump, Gearbox, PLC
Weight :
10000 kg
Voltage :
380V 50Hz 3phases
Key Selling Points :
Automatic
Feature :
High Safety Level
Warranty :
1 Year
Description

Full Automatic Metal Floor Deck Sheet Roll Forming Machine Production Line

The floor deck panel produced by high tensile floor decking steel roll forming machine is widely used on the construction building because of its high pitches and strong strength .It includes manual decoiler , main roll forming machine (safety guard optional) , Hydraulic cutting system ,PLC control system , output table .

Full Automatic Metal Floor Deck Sheet Roll Forming Machine Production LineSummary:

1). To design and make the best roll forming machine, we took EUROPEAN quality standard;

2). Choose the best material and components, and adopting our 17+ years experience;

3). We achieves that the machine capacity is double of the competitors;

4). The machine working speed can be 15m/min;

5) . Very easy to install and operate the roll forming machine.

Usage:

In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working

Feature : Ensure stability , precision and lifetime.

Specification

Full Automatic Metal Floor Deck Sheet Roll Forming Machine Production Line Forming steps 22 steps
Shaft diameter 80mm
Machine stand Individual Arch Plate
Machine frame steel plate welded
roller material 45#steel
shaft material 45# steel with quenching and tempering
Work speed 8-12m/min
Transport By chains
Power of main machine 22kw
Voltage 380V-50HZ-3P(as required)
Machine dimension
6500*1300*1100
Machine weight About 5T
Machine color Yellow and blue(as required)

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
