Customizable Trapezoidal Double Layer Cold Roll Forming Machine 15m/Min
Customizable Trapezoidal Double Layer Cold Roll Forming Machine 15m/Min
Customizable Trapezoidal Double Layer Cold Roll Forming Machine 15m/Min
Customizable Trapezoidal Double Layer Cold Roll Forming Machine 15m/Min
Specifications
Brand Name :
FMS
Model Number :
Double Layer
Certification :
ISO CE
Place of Origin :
CHINA MAINLAND
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
20 Sets Per Month
Delivery Time :
30 Working Days
Packaging Details :
20' FLC
Product Name :
Customized Steel Panel Trapezoidal Double Layer Cold Roll Roofing Form Machine
Dimension(L*W*H) :
7.5m*1.6m*1.4m
Raw Material :
Galvalume, Galvanized
Production Capacity :
15m/min
Weight :
3500 kg
material of roller :
45# Cr plated
Pow supply :
380V 50Hz 3phases(customizable)
Machine cutter material :
CR12
Thickness of the plate :
0.3-0.8mm
Control system :
PLC Control
Description

Customized Steel Panel Trapezoidal Double Layer Cold Roll Roofing Form Machine

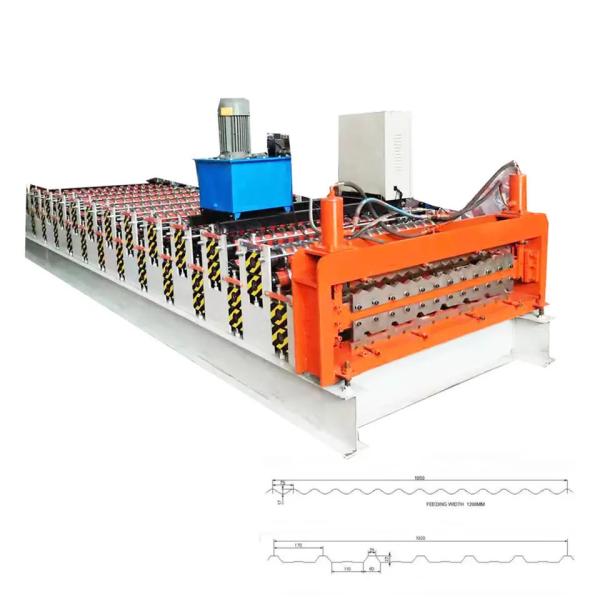

The picture shows the whole process of Customized Steel Panel Trapezoidal Double Layer Cold Roll Roofing Form Machine : MOCustomized Steel Panel Trapezoidal Double Layer Cold Roll Roofing Form MachineTORIZED UNWINDING --- Feeding guide --- Roll forming --- Leveling --- Cutting --- Run out product stacker

The double deck corrugator was a solution to the problem of limited space in the customers production facility. Two sections produced in a two level over and under configuration gives the opportunity to produce different sections from a single machine.

New Design 840 900 Double Layer IBR Type Roof Cold Roll Forming Machine
1.This roll forming machine can form smooth and beautiful metal roofing sheet without any scratch on surface
2.Roll forming process: uncoiler, roll forming, forming step effect, cut to length.
3.Fully Automatic Control System with PLC.
4.Easy operation: Set length and quantity on the control panel,machine will auto working
5.Customized your own roll forming machine, We can design the machine according to your specification and profile drawing.


Specification

No
Item
Data
1
Raw material width
1000-1200 mm
2
Sheet effective width
750-1000 mm
3
Raw material
Color steel sheet or galvanized steel sheet
4
Material thickness
0.3-0.8 mm or customized
5
Forming roller material
45# steel plated with chrome
6
Main motor power
3 KW 4 KW 5.5 KW(according to type)
7
Shaft diameter
70mm
8
Control system
PLC control

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


.

Payment terms

30% in advance as down payment
70% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.Customizable Trapezoidal Double Layer Cold Roll Forming Machine 15m/Min
