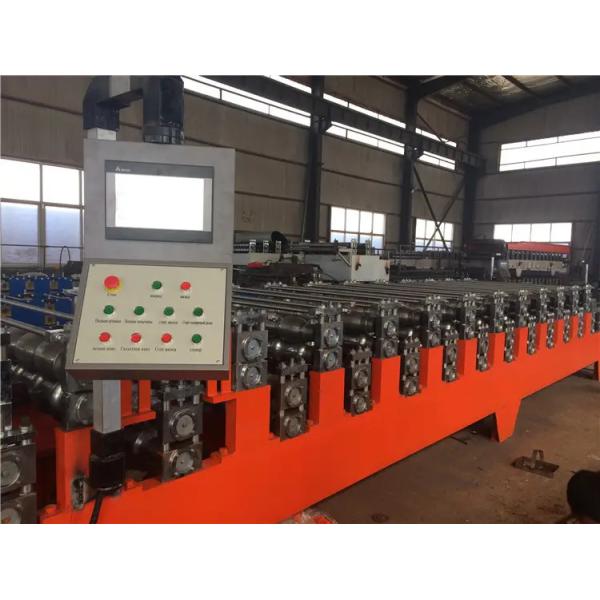

Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production
Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production
Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production
Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production
Specifications
Brand Name :
FMS
Model Number :
Double Layer
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
35 sets per month
Delivery Time :
30days
Packaging Details :
Main machine is nude,the computer control box is packed by plastic.
Product Description :
Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production
Production Capacity :
8-12 m/min
Dimension(L*W*H) :
7.5*1.3*1.3 m
Roller material :
45# Forged Steel
Control system :
PLC
Rolling thinckness :
0.3-0.8mm
Voltage :
380V 50Hz 3phases
Feeding width :
1250mm
Cutting blade material :
Cr 12 High Grade Steel
Main frame :
350H Steel
Weight :
5000 kg
Description

Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production


Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production .Compared to a single layer roof panel roll forming machine, a double layer roll forming machine is desgined to produce two different kinds of metal sheets which can be one trapezoidal roofing and one roof/wall cladding sheet.
Now our double layer metal roofing corrugated roll forming machine have been exported to many countries,We factory have already machine, welcome to visit and test. we can aslo customize the machine as ur need.

Detailed Parameters:

Part details Item Name Specification
Manual uncoiler carrying capacity 5-8 tons
Stype Manual
Raw coil Coil material steel
Coil thickness 0.3-0.8 mm
Machine body Roller station 15 station
Roller material 45# steel
Shaft material 45# steel
Shaft diameter 75 mm
Machine weight About 6.5 tons
Machine size 5-7.5*1.3*1.3 m
Speed 8-12 m/min
Cutter Operate Hydraulic cutting
Blade material Cr12
Power Operate Chain transmission
Chain size 1 inch chain
Control system PLC brand Taiwan delta
Motor power 7.5 kw
Hydraulic pump power 3 kw
Voltage 380V 50Hz 3phase
Machine color As ur need
Machine language Chinese and English

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production
