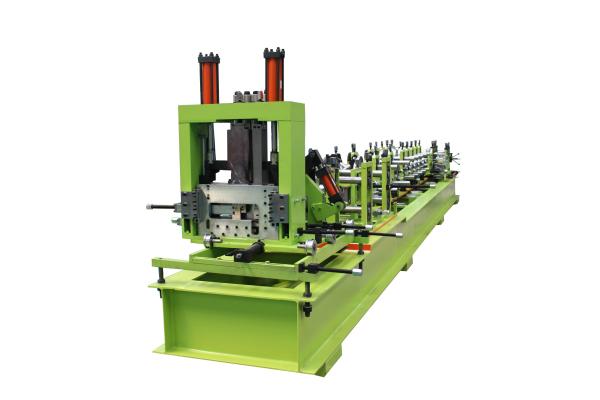

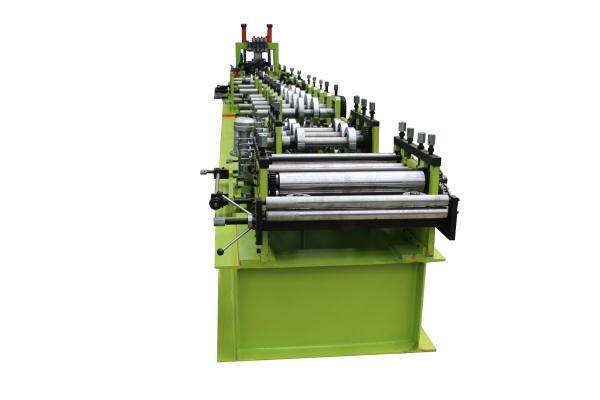

45# Steel C Z U Purlin Machine 18 Stations Rollers
45# Steel C Z U Purlin Machine 18 Stations Rollers
45# Steel C Z U Purlin Machine 18 Stations Rollers
45# Steel C Z U Purlin Machine 18 Stations Rollers
Specifications
Brand Name :
FMS
Place of Origin :
China
Control System :
PLC
Voltage :
380V/50HZ/3Phase
Forming Speed :
8-12m/min
Thickness :
1.5-3.0mm
Weight :
3.5T
Roller Material :
45# Steel
Product Name :
CZ Purlin Roll Forming Machine
Rollers :
18 Stations
Description

Product Description:

The Adjustable CZ Purlin Angle Iron Roll Forming Machine is designed to process galvanized steel to create CZ purlins. It is a wholesale China import metal CZ Purline Machine, featuring a hydraulic cutting mode, a chain drive transmission and a forming speed of 8-12m/min. It has a compact size of 7000*1250*1700mm, and is perfect for creating CZ purlins with precision and accuracy. This CZ Purlin Roll Forming Machine is a reliable and efficient choice for creating high quality CZ purlins with excellent results.

Features:

  • Product Name: CZ Purlin Roll Forming Machine
  • Weight: 3.5T
  • Material: Galvanized Steel
  • Forming Speed: 8-12m/min
  • Roller Material: 45# Steel
  • Transmission: Chain Drive
  • Special Features: Steel Frame and Purlin Making Machines, Adjustable CZ purlin angle iron roll forming machine, etc.

Technical Parameters:

Parameter Value
Weight 3.5T
Size 7000*1250*1700mm
Rollers 18 Stations
Cutting Blade Material Cr12Mov
Forming Speed 8-12m/min
Voltage 380V/50HZ/3Phase
Cutting Mode Hydraulic
Power 7.5KW
Thickness 1.5-3.0mm
Control System PLC
Product Adjustable CZ purlin angle iron roll forming machine, Steel Frame and Purlin Making Machines, CZ Purlin Roll Forming Machine

Applications:

FMS CZ Purlin Roll Forming Machine is a building material machinery specially designed for Steel Frame and Purlin Making Machines. With its 18 stations of rollers, the machine is able to adjust the angle iron for various CZ purlins, providing perfect solutions for all kinds of CZ purlin forming needs. The machine is able to form any length of CZ purlins with its specially designed cutting system. With a size of 7000*1250*1700mm and a voltage of 380V/50HZ/3Phase, the CZ Purlin Roll Forming Machine is equipped with PLC control system, offering full automation and great precision of purlin forming.

Customization:

Customized CZ Purlin Roll Forming Machine for Wholesale China Imports
  • Brand Name: FMS
  • Place of Origin: China
  • Rollers: 18 Stations
  • Size: 7000*1250*1700mm
  • Cutting Mode: Hydraulic
  • Cutting Blade Material: Cr12Mov
  • Thickness: 1.5-3.0mm
  • Purpose: Steel Frame and Purlin Making Machines
45# Steel C Z U Purlin Machine 18 Stations Rollers

Support and Services:

Technical Support and Service for CZ Purlin Roll Forming Machine

We provide comprehensive technical support and service for CZ Purlin Roll Forming Machine.

  • Provide on-site installation and commissioning services
  • Provide on-site technical training services
  • Provide in-depth maintenance instructions
  • Provide timely technical guidance and maintenance services
  • Provide 24/7 remote technical services

Packing and Shipping:

CZ Purlin Roll Forming Machine Packaging and Shipping:

The CZ Purlin Roll Forming Machine will be securely packed in wooden cases and shipped by sea. We guarantee that our machines will arrive in perfect condition and ready for operation.

FAQ:

  • Q: What is the brand name of CZ Purlin Roll Forming Machine?
    A: The brand name of CZ Purlin Roll Forming Machine is FMS.
  • Q: Where is the place of origin for CZ Purlin Roll Forming Machine?
    A: The place of origin for CZ Purlin Roll Forming Machine is China.
  • Q: What color is CZ Purlin Roll Forming Machine?
    A: The color of CZ Purlin Roll Forming Machine is Green.
  • Q: What materials can be processed with CZ Purlin Roll Forming Machine?
    A: CZ Purlin Roll Forming Machine can be used to process various kinds of metal strips such as steel, aluminum, stainless steel etc.
  • Q: What kind of features does CZ Purlin Roll Forming Machine have?
    A: CZ Purlin Roll Forming Machine has features such as high production efficiency, stable performance, low energy consumption and easy operation.
