Multi Ribs Roof Roll Forming Machine Trapezoidal Sheet Roll Forming Machine
Multi Ribs Roof Roll Forming Machine Trapezoidal Sheet Roll Forming Machine
Multi Ribs Roof Roll Forming Machine Trapezoidal Sheet Roll Forming Machine
Multi Ribs Roof Roll Forming Machine Trapezoidal Sheet Roll Forming Machine
Specifications
Brand Name :
cangzhou willing
Model Number :
C8
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, Western Union
Supply Ability :
30 sets per month
Delivery Time :
30days
Packaging Details :
Main machine is nude,the computer control box is packed by plastic.
Thickness :
0.25-0.8MM
Dimension(l*w*h) :
6700mm*1550mm*1300mm
Product name :
Multi Ribs Trapezoidal Sheet Wall Roof Roll Forming Machine
Forming speed :
20-30m/min
Material width :
1250mm
Tile type :

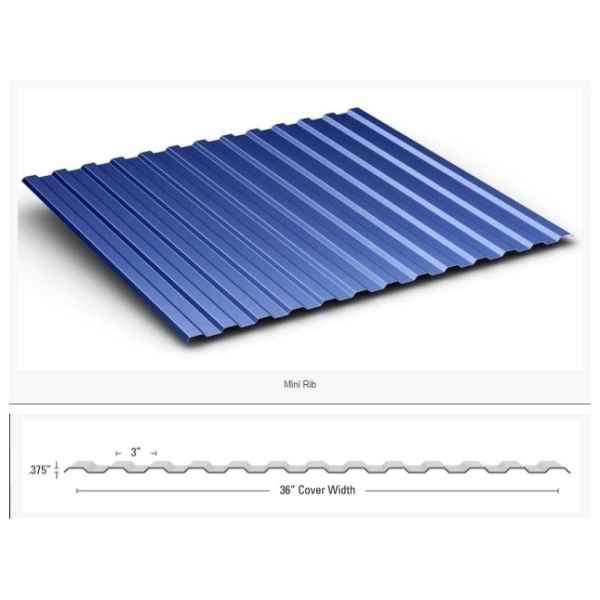

roof and wall
Description

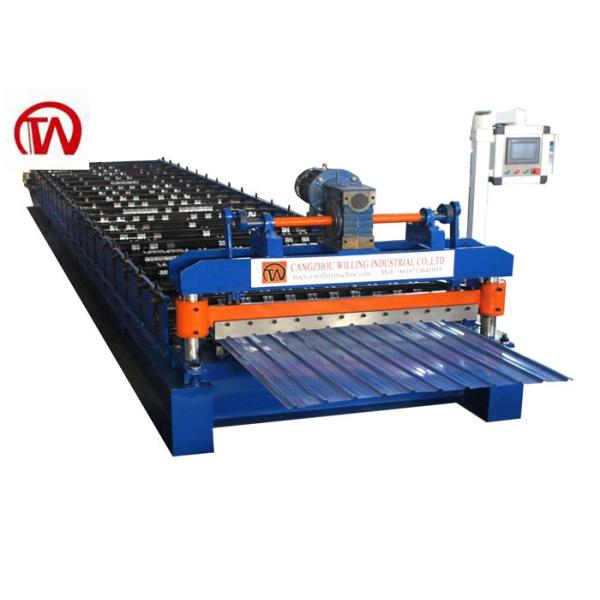

Multi RibsTrapezoidal Sheet Wall Roof Roll Forming Machine

As a professional manufacturer,we can make China Roof Roll Forming Machine by customer`s demand, with a profile drawing and thickness, we can design the machine quickly.Until now,we can do many kinds of roof panel machine,such as trapezoidal sheet making machine, corrugated sheet making machine, glazed tile making machine, Double Layer Roll Forming Machine and so on.

Equipment Detailed Parameters:

No. Item Description
1 Raw material Standard 1250mm
2 Working Speed 8-15m/min (not including cutting time)
3 Roller Stations 14 stations
4 Material of Roller 45# steel quenching process and chrome coated
5 Material of Main Shaft 45 steel forged,
6 Material of Shaft 70 mm forged 45#steel, quenching process
7 Main Motor Power 4KW
8 Electrical Hydraulic Station Power 4KW
9 Hydraulic Station Pressure 12.0 Mpa
10 Electrical Control System PLC Panasonic Japan
11 Dimension (L*W*H) 6700mm*1550mm*1300mm
12 Material of Cutter Cr12 Mov HRC 58-62
13 Driving Mode single chain 1 inch
14 Material Thickness 0.25-0.8mm
15 Cutting accuracy ±2mm
16 Power Supply 380V, 60HZ, 3 PHASES

Multi Ribs Roof Roll Forming Machine Trapezoidal Sheet Roll Forming MachineMulti Ribs Roof Roll Forming Machine Trapezoidal Sheet Roll Forming Machine

We are the most professional in China,we do our best to benefit for you,our machines are best-quality;

From the photo seeing :All kinds of tile type machine we did for customers ;

We lengthen the plate beside the machine to make the machine strong during working;

When you visit and come to China ,we can teacher you how to use it ;

Appear any questions ,we will try our best help you deal with ;

Meanwhile ,if any parts go broken and not artificial damage ,we will send you new one with free.
