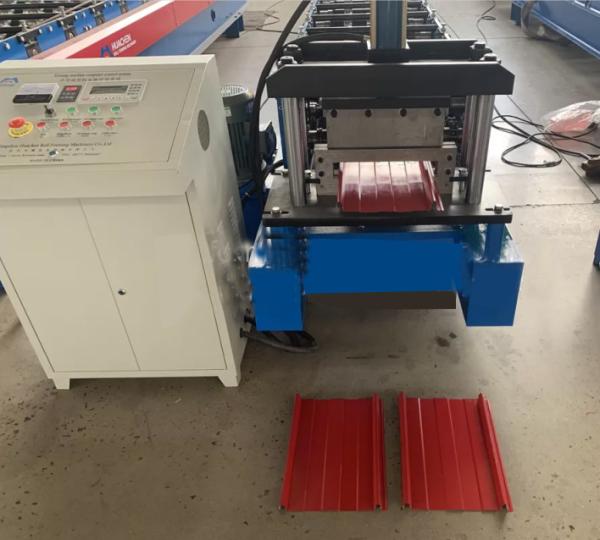

Plc Self Lock Standing Seam Roof Roll Forming Machine 15m/Min 3p
Plc Self Lock Standing Seam Roof Roll Forming Machine 15m/Min 3p
Plc Self Lock Standing Seam Roof Roll Forming Machine 15m/Min 3p
Plc Self Lock Standing Seam Roof Roll Forming Machine 15m/Min 3p
Specifications
Brand Name :
FMS
Model Number :
610
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
30 sets per month
Delivery Time :
30days
Packaging Details :
Main machine is nude,the computer control box is packed by plastic.
Product name :
Plc Self Lock 15m/Min 3p Roof Sheet Rolling Machine Hot In Ghana
Suitable to process :
Color steel plate
Width of the plate :
500mm
Rollers :
16 rows
Dimensions :
7.8*1.35*1.51m
Use :
Nail Strip Snap Lock Panel Standing Seam
Condition :
New
Thickness of the plate :
0.3-0.7mm
Description
Plc Self Lock 15m/Min 3p Roof Sheet Rolling Machine Hot In Ghana​

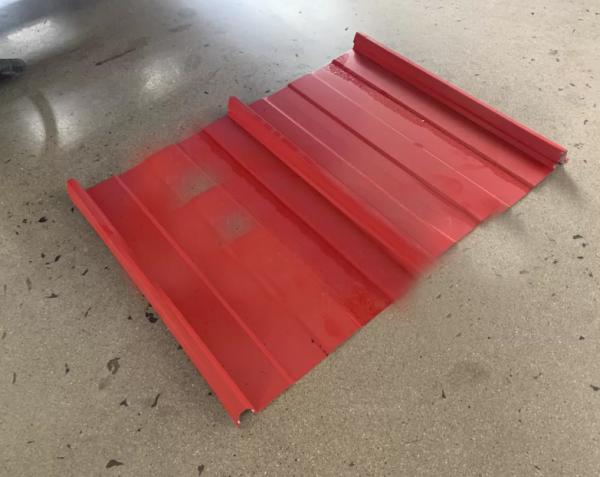

Roofing colored steel tile, also known as: colored pressing tile, is the use of color coating steel plate, cold bending through the roll into a variety of wave plate.

This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.

Equipment Detailed Parameters:

No. Main parameter of Roof Sheet Roll Forming Machine
1 Suitable to process Color steel plate
2 Width of the plate 500mm

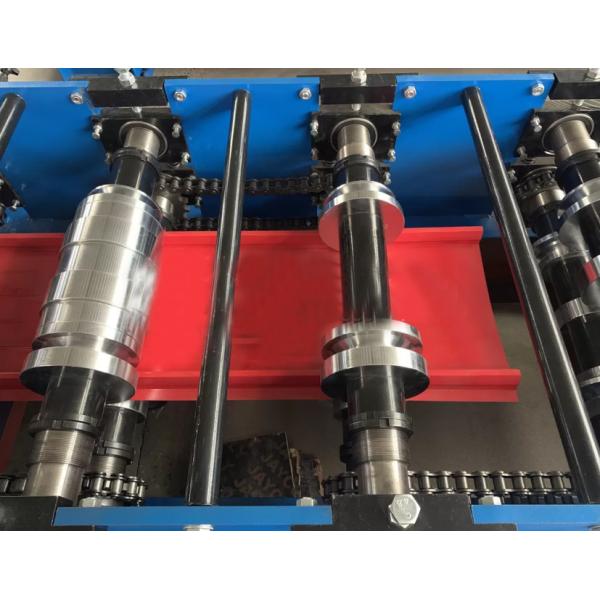

3 Rollers 16 rows
4 Dimensions 7800*1350*1510mm
5 Power 3+3kw
6 Rolling material 45# steel(plated chrome on surface)
7 Thickness of the plate 0.3-0.6mm
8 Productivity 8-10m/min
9 Diameter of the roller Φ66mm
10 Voltage 380V 50Hz 3phases
11 Material of the cutting plate Cr12
12 Hydraulic 40#
13 Processing precision Within 1.00mm
14 Control system PLC control


Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
