Galvanized Profile C10 Steel Roofing Roll Forming Machines Metal Computerised
Galvanized Profile C10 Steel Roofing Roll Forming Machines Metal Computerised
Galvanized Profile C10 Steel Roofing Roll Forming Machines Metal Computerised
Galvanized Profile C10 Steel Roofing Roll Forming Machines Metal Computerised
Specifications
Brand Name :
FMS
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
30 sets per month
Delivery Time :
30days
Packaging Details :
Main machine is nude,the computer control box is packed by plastic.
Product name :
Galvanized Steel Profile Metal Roofing Roll Forming Machines C10
Suitable to process :
Color steel plate
Roller material :
high grade No.45 forged steel
Cutter blade :
Cr12 mould steel with quenched treatment
Machine Weight :
4.5T
Rollers :
45# Steel
Cutting Blade :
Cr12
Voltage :
380V 50Hz 3phases
Description

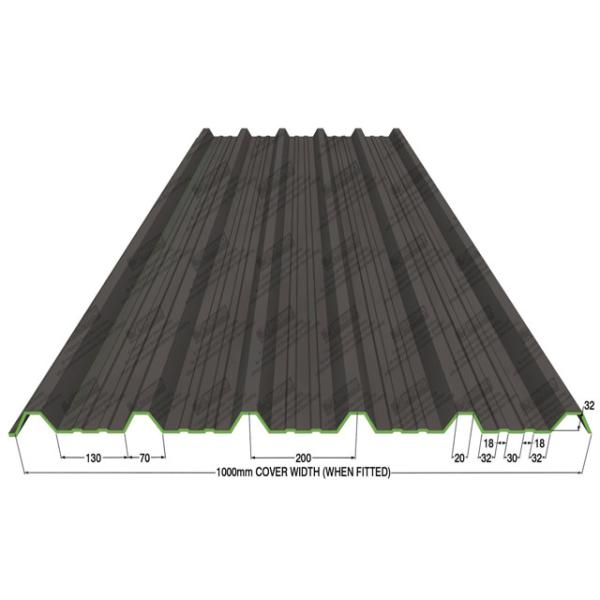

Galvanized Steel Profile Metal Roofing Roll Forming Machines C10

The equipment automatically set in accordance with the computer data to produce different lengths of finished products.there is the construction of the computer controller to set up multiple sets of different data,easy operate.

This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.


Equipment Detailed Parameters:

Description Specification
Main moter power 5.5KW
Hydraulic station power 4KW
Hydraulic oil pump CB-E310
Sprocket P-25.4
Roller station 14
Yield strength 32MPa
Diameter of principal axis 95MM
Material of roller 45#steel hard chrome plating
Processing speed 8m/min
Thickness 0.3-1mm
Installation dimension about(L*W*H) 7.5*1.5*1.2M
Total weight 3.8T


Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
