High Strength 380v 1220mm Cz Purlin Roll Forming Machine Automatic
High Strength 380v 1220mm Cz Purlin Roll Forming Machine Automatic
High Strength 380v 1220mm Cz Purlin Roll Forming Machine Automatic
High Strength 380v 1220mm Cz Purlin Roll Forming Machine Automatic
Specifications
Brand Name :
FMS
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
20 sets per month
Delivery Time :
30days
Packaging Details :
Main machine is nude,the computer control box is packed by plastic.
Product Name :
High Strength C Purlin Roll Forming Machine Automatic
Weight :
About 4.5 Tons
Rolling thinckness :
0.3-0.8mm
Cutting type :
Hydraulic Cutting
Control system :
PLC
Key Selling Points :
Automatic
Voltage :
380v
Feeding width :
1220mm
Dimension(L*W*H) :
11000*1700*1600Mm
Description

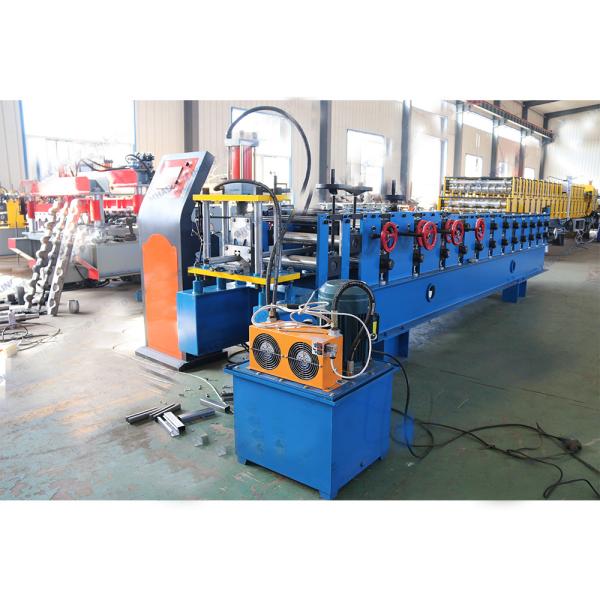

High Strength C Purlin Roll Forming Machine Automatic

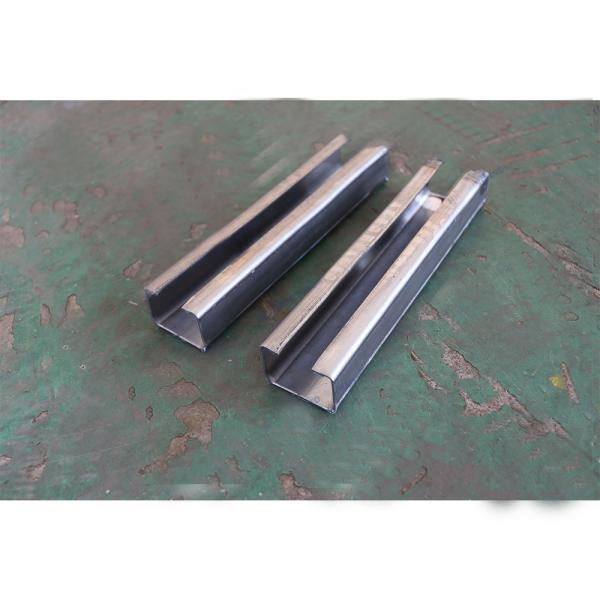

C Purlins Roll Forming Machine can produce different size of the C purlin, when it produce different size of C purlin, it need need change the blade and rollers, just need adjust the rollers and cutting device. In this way to meet customer's different requirements. The whole line of Multy Size Galvanized Steel C Channel Purlin Roll Forming Machine mian inculd five part, they are decoiler, main roll forming machine , PLC control system, Cutting system and product receiving table.C purlin is widly used in large-scal steel structure, such as warehouse, workshop and so on. It has a large marke


specifications

Main structure of the machine
400 H steel
Side panel of machine
20mm( A3 steel)
Rollers
18rollers+ leveling shaft+straightening shaft
Diameter of the shaft
Φ80mm
Rolling materials
GCr15(bearing steel)hard chrome plated after heat treatment (Bearing steel quenching)
Diameter of the shaft
Φ80mm
Shaft material
40Cr Modulation of heat treatment after polishing hard chromium plating
Operating Mode
Automatic CZ Free Replacement By Motor Drive
Main Motor size
Hydraulic Motor pump station 25Kw
Material of the cutting blade
Cr12,Quenched treatment 58℃-60℃
Control system
PLC control (Siemens)
Drive mode
Motor/Motor (Siemens)

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
