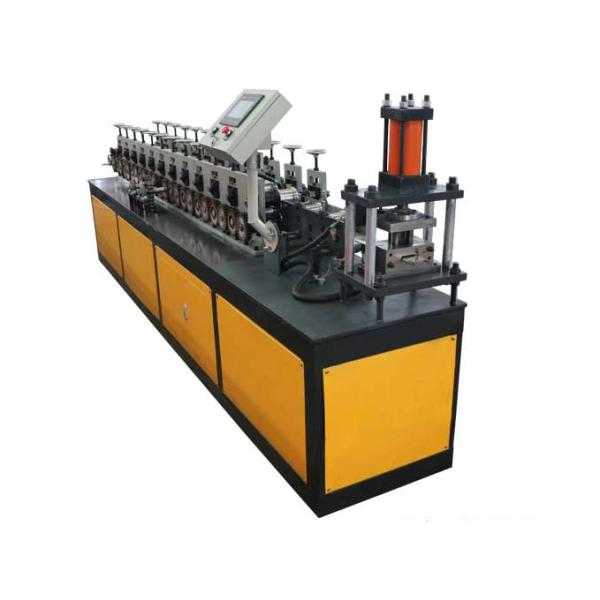

0.6mm Gear Shutter Door Roll Forming Machine Automatic Steel Sheet Roller
0.6mm Gear Shutter Door Roll Forming Machine Automatic Steel Sheet Roller
0.6mm Gear Shutter Door Roll Forming Machine Automatic Steel Sheet Roller
0.6mm Gear Shutter Door Roll Forming Machine Automatic Steel Sheet Roller
Specifications
Brand Name :
CANGZHOU FMS
Model Number :
Shutter Door
Certification :
ISO CE
Place of Origin :
CHINA MAINLAND
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
20 Sets Per Month
Delivery Time :
30 Working Days
Packaging Details :
20' FLC
Product Name :
Automatic Steel Sheet Roller Shutter Door Roll Forming Machine Manufacturers
Suitable Thickness :
0.3-0.6mm
Voltage :
380V 50Hz 3phases
Cutting type :
hydrualic
Profile Drawing :
Customized
Core Components :
Motor, Bearing, Gear, Pump, PLC
Cutting mode :
auto tracking cutting
Control system :
PLC
Description

Automatic Steel Sheet Roller Shutter Door Roll Forming Machine Manufacturers

Rolling shutter door machine adopts cold-formed steel door and window material made of color-coated plate and stainless steel plate, which has the characteristics of good sealing performance, beautiful appearance and long service life; composite rolling door uses cold-formed steel, which is a new type of material for fireproof doors. A large number of cold-formed steels are also used in various keels and decorative strips for decoration in the construction industry. There are many types and specifications of cross-sections required. The materials used include galvanized sheets, color-coated sheets, stainless steel and aluminum alloys.

Specification

General InformationCoil MaterialGI/GL
Coil Thickness0.6~1.2MM
Coil Width---
Speed15-20M/MIN
VoltageAs Customer's Request
Roll Forming UnitRoller Station12
Driving Motor5.5KW
Shaft Diameter50mm Solid
Shaft Material45# Hard Steel
Roller MaterialCr12
Under FrameSquare Tube Welded
Sidewall ThicknessMemorial Archway Type
TransmissionGear
Feeding Device1 Set
Cutting UnitCutting TypeHydraulic Non-stop TO Cut
Hydraulic Pump Power3KW
Cutting Die MaterialCr12Mov
Hydraulic Oil46# Abrade Oil
Control UnitControl MethodPLC
Length ControlEncoder
OperationTouch Screen
LanguageChinese & English

0.6mm Gear Shutter Door Roll Forming Machine Automatic Steel Sheet Roller
Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
