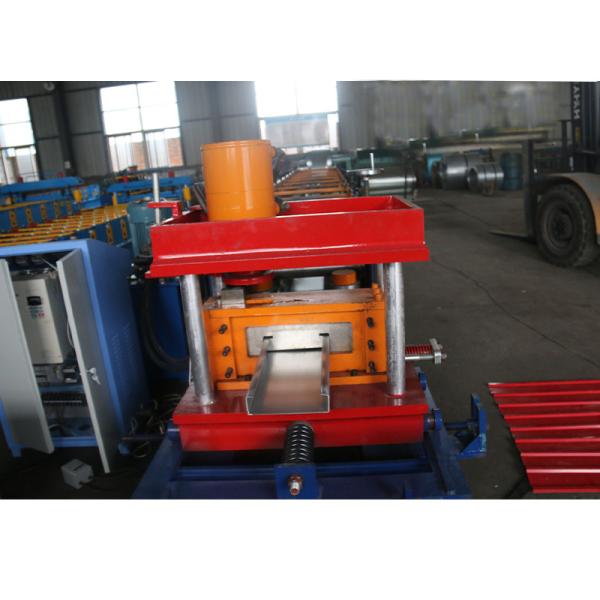

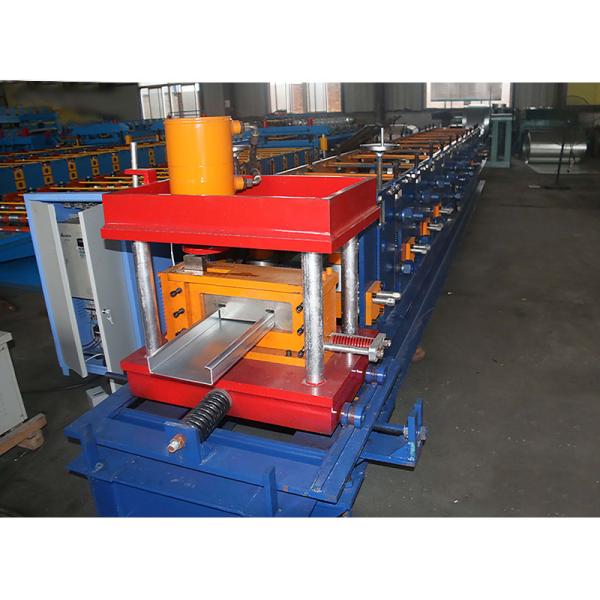

Hydrulic Driving C Purlin Roll Forming Machine With Cr12Mov Cutter
Hydrulic Driving C Purlin Roll Forming Machine With Cr12Mov Cutter
Hydrulic Driving C Purlin Roll Forming Machine With Cr12Mov Cutter
Hydrulic Driving C Purlin Roll Forming Machine With Cr12Mov Cutter
Hydrulic Driving C Purlin Roll Forming Machine With Cr12Mov Cutter
Hydrulic Driving C Purlin Roll Forming Machine With Cr12Mov Cutter
Specifications
Brand Name :
FMS
Model Number :
C Purlin
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
20 sets per month
Delivery Time :
30days
Packaging Details :
Main machine is nude,the computer control box is packed by plastic.
Product Name :
Hydrulic Driving C Purlin Roll Forming Machine with Cr12Mov cutter
Form Speed :
15-20m/min
Voltage :
380 V or as per drawing
Hydraulic motor :
7.5kw
Automation :
Automatic
Cutting blade material :
Cr 12 Mov
Weight :
8 T
Hydraulic pressure range :
0-16Mpa
Description

Hydrulic Driving C Purlin Roll Forming Machine with Cr12Mov cutter

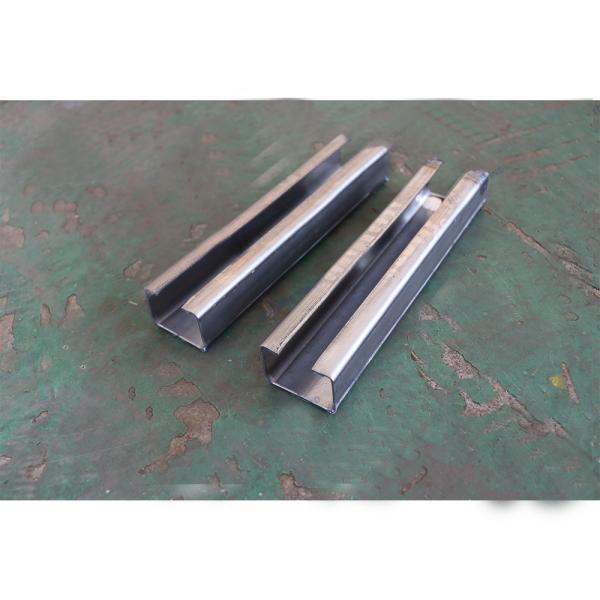

Type C galvanized bars use galvanized steel plates. The roller is cooled bending. You can automatically complete the molding process according to the given sizes. It is suitable for industrial and civilian buildings, warehouses, special buildings, large -span steel structured roofs, wall surfaces, and internal and external wall decorations. It has light quality, high -strength, rich color, convenient construction, earthquake resistance, fire prevention, rainproof, life span The characteristics of long, exempt maintenance, have been widely promoted and applied to the color steel encirclement building system

specifications

Raw material
Steel Coil gi ppgi
Control system
PLC(imported Brand)
Punching
Roller Station
main motor
15kw
Weight
8 t
main shaft diameter
80mm
material thickness
1.2-2.5mm
Warranty of core components
1.5 years

Advantage

1 It produces different purlin machines that automatically change rollers or spacers.
2. No need to change cutters for different sizes
3. Low maintenance costs, easy to operate.
Infinite sizing (any size within the machine range), helps save materials
A punch hole can be made at any position on the web side and flange side of the purlin.
