Specifications
Brand Name :
CANGZHOU WILLING
Model Number :
Square/Round Down Spout
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
20 Sets Per Month
Delivery Time :
30 Working Days
Packaging Details :
20' FLC
Product Name :
Square And Round Down Spout Roll Forming Machine Aluminium Rain For Building
Raw Material :
PPGI
Voltage :
As per requested
thickness :
0.3-0.8 mm
Control system :
PLC
Usage :
roofing
Description

Square And Round Down Spout Roll Forming Machine Aluminium Rain For Building

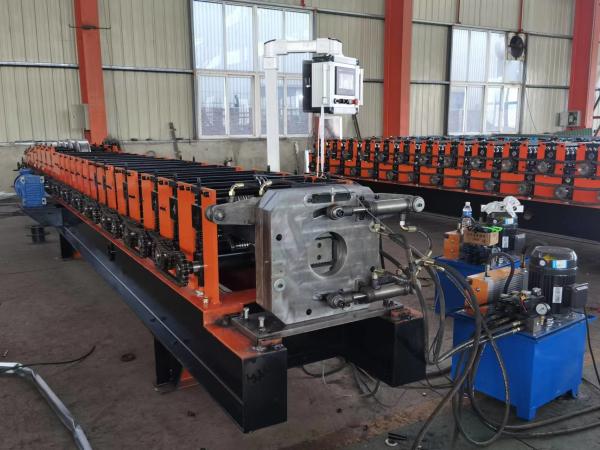

This downpipe roll forming machine is for steel sheet or aluminum sheet cold-form industries. It can roll-forming the steel sheet according to the customer’s requirement continuously, automatically cut to length.
The equipment adopts PLC control, AC frequency, and adjusting the speed technology, and it realizes the continuous automatic production, therefore, it is really a new type of energy-saving and high-effective producing equipment for the metal downpipe.
Our downpipe roll forming machine has many advantages, just like high forming speed, low noise, stable transmission, easy operation, good appearance, and so on.

Specification

No. Item Description
1 Coil PPGI
2 Raw Material Thickness 0.3 mm - 0.6 mm
3 Working Speed 7-15 m/min
4 Roller Station 26 Stations
5

Dimension (L*W*H)

 8000 mm*800 mm*1200 mm
6 Machine Weight 6000 KG
7

Electrical Control System

PLC

8

Drive Motor Power

 4 KW
9

Hydraulic Station Power

 4 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)
11

Cutting Accuracy

± 2 mm
12

Driving Mode

Single Chain 1 inch
13

Material of Shaft

60 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining

Installation


During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.

Guarantee

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).

Payment terms

40% in advance

60% is paid before shipping

Square And Round Downspout Roll Forming Machine Aluminium Rain For Building
