Metal Roofing Corrugated Steel Plc Wall Panel Roll Forming Machine Double Layer
Metal Roofing Corrugated Steel Plc Wall Panel Roll Forming Machine Double Layer
Metal Roofing Corrugated Steel Plc Wall Panel Roll Forming Machine Double Layer
Metal Roofing Corrugated Steel Plc Wall Panel Roll Forming Machine Double Layer
Metal Roofing Corrugated Steel Plc Wall Panel Roll Forming Machine Double Layer
Metal Roofing Corrugated Steel Plc Wall Panel Roll Forming Machine Double Layer
Metal Roofing Corrugated Steel Plc Wall Panel Roll Forming Machine Double Layer
Metal Roofing Corrugated Steel Plc Wall Panel Roll Forming Machine Double Layer
Specifications
Brand Name :
cangzhou willing
Model Number :
Double Layer
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, Western Union
Supply Ability :
30 sets per month
Delivery Time :
30days
Packaging Details :
Main machine is nude,the computer control box is packed by plastic.
Product Description :
Double Layer Roll Forming Machine
Thickness :
0.25-0.8 mm
Shaft material :
material is 45# forge steel
Dimension(l*w*h) :
9500*1550*1500mm
Control system :
PLC
Speed :
15-20 M/Min
Voltage :
380V 50HZ 3PH
Weight :
6.5T
Description

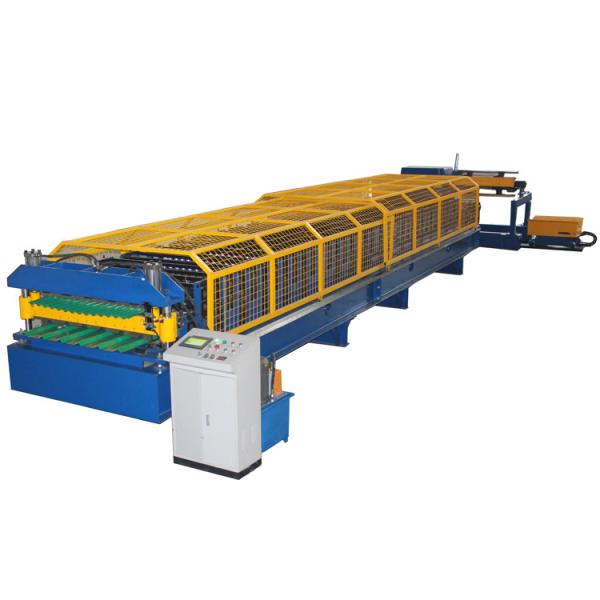

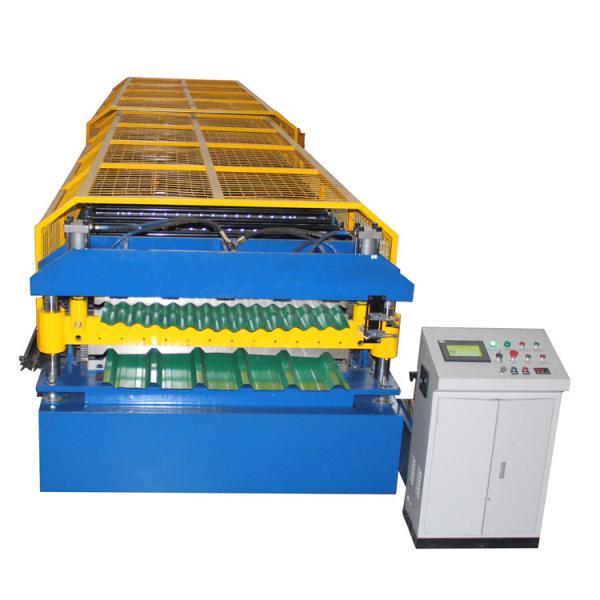

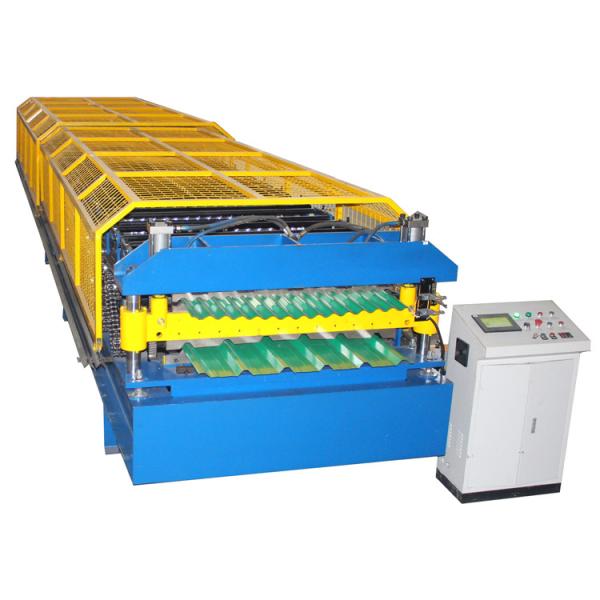

Metal Roofing Corrugated Steel Wall Panel Double Layer Roll Forming Machine


In order to meet the needs of forming two sections on a limited site area, and to quickly change products, the double-layer rolling mill of the tile press is also designed and manufactured. This double-layer color steel tile forming machine is installed in the high or low frame Change between.


Equipment Detailed Parameters:

1

 Suitable Material PPGI (235Mpa)

2

 Width of the raw material 1250mm
3 Rows of rollers 15 rows & 16 rows
4 Dimension 7300*1550*1200mm
5

Main servo

7.5kw
6 Hydraulic station power 11kw
7 Thickness of raw material 0.3-0.8mm

8

Productivity

 15-20m/min
9 Diameter of shaft ￠75mm

10

 Voltage 380V 50Hz 3phases
11 Frame 350H steel
112 Middle plate 16mm

Application

The double-layer tile machine is economical and can combine two types of equipment into one. In other words, it saves floor space, and the equipment cost of a double-layer tile machine is much lower than that of two single-layer machines. The profiled plate rolled by the double-layer tile machine is not only solemn and elegant, but also beautiful and novel. And the appearance is flat, the pressure is uniform, and the utilization rate is high.

Advantage

The double-layer tile machine equipment adopts PLC control system and electric control system, which can be displayed on the touch screen. The operation is simple and easy to use. The double-layer tile machine adopts advanced automatic control software. To achieve production information management, in order to make the performance of the automation system more superior, the color steel tile equipment also has the advantages of operation, maintenance, maintenance, mechanical debugging, and convenient mold replacement.
