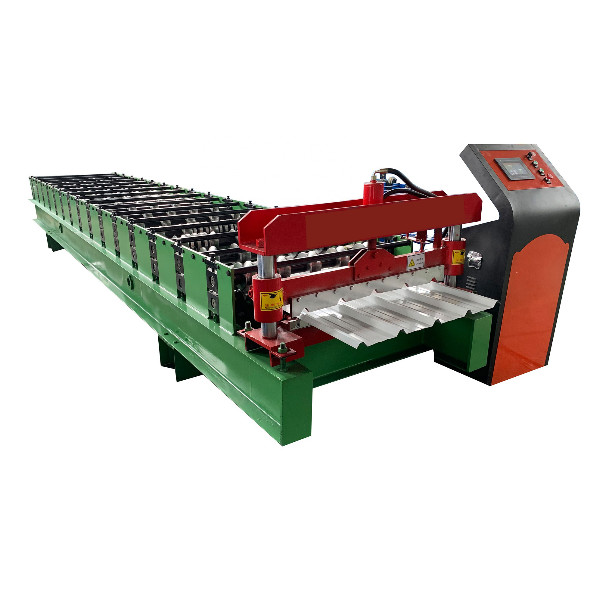

Painted Steel Tr5 0.8mm Roof Tile Roll Forming Machine
Painted Steel Tr5 0.8mm Roof Tile Roll Forming Machine
Painted Steel Tr5 0.8mm Roof Tile Roll Forming Machine
Painted Steel Tr5 0.8mm Roof Tile Roll Forming Machine
Specifications
Brand Name :
CANGZHOU FMS
Certification :
ISO CE
Place of Origin :
CHINA MAINLAND
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
20 Sets Per Month
Delivery Time :
35 Working Days
Packaging Details :
40' FLC
Product Name :
Painted Steel Tr5 Roofing Tile Roll Forming Machine For Cameroon
Core Components :
Motor, Pump, PLC
Voltage :
380V 50Hz 3Phases Or Customerization
Cutting type :
Hydraulic Cutting
Diameter Of Shaft :
75mm
Control system :
Fully Automatic
Rolling thinckness :
0.3-0.8mm
Key Selling Points :
Automatic
Production Capacity :
8-12m/min
Description

Painted Steel Tr5 Roofing Tile Roll Forming Machine For Cameroon


The trapezoidal metal roofing making machine used fully automatic control system,It has the characteristics of high output and high quality.
The Painted Steel Tr5 Roofing Tile Roll Forming Machine For Cameroon is a affordable metal roofing machine . This roof machine include the decoiler , feeding table , main machine , cutting device , plc control box , oil pump and receving table .
The machine is used to construct external roofing & wall panels of houses & interior panels or ceilings to enhance the appearance of the roof or walls,And durability.

Specification

Feeding width
1000 mm (According to the profile)
Thickness
0.3-0.8mm
Roller Stage
16 rows
Roller Material
45# forging steel with chromium plate
Roller station
15 steps (According to the profile)
Material of cutting blade
Cr12Mov, Quenched treatment 58℃-60℃
Main Structure of the Machine
350H beams
Side Panel of Machine
16mm
Chain
1.2 inch
Motor power
4 kw
Hydraulic pump power
4 kw
Voltage
380V 50Hz 3phases or Customerization


Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
