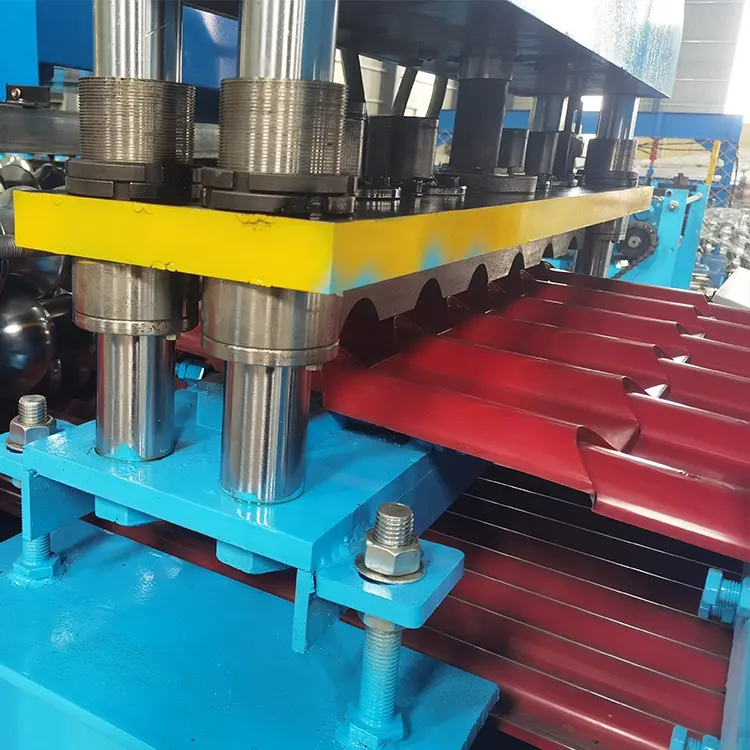

Shear Head.

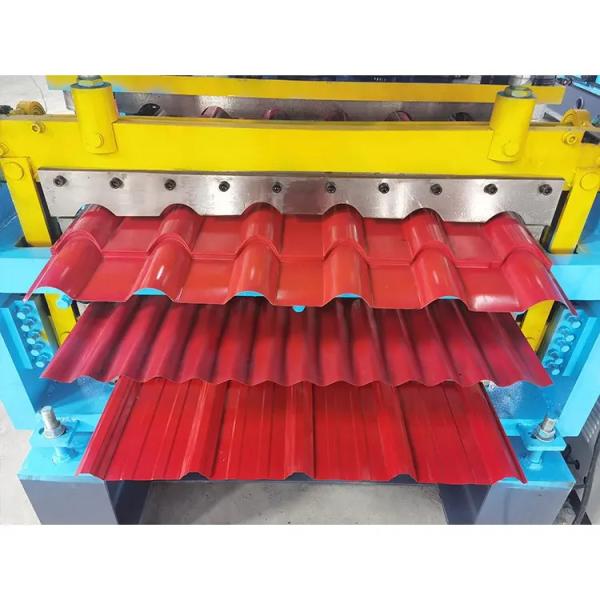

The shear head of the roof sheet roll forming machine adopts the guide column type shear, and there are reinforcement bars at the top, bottom and left and right, so the shear is more stable. The double cylinder mode makes the shear balance. The cutting head adopts blanking type cutting, and the color steel plate can be directly dropped on the workbench, saving labor. Three shapes, 828 glazed tile, 850 corrugated tile, 900 trapezoidal tile
|
|

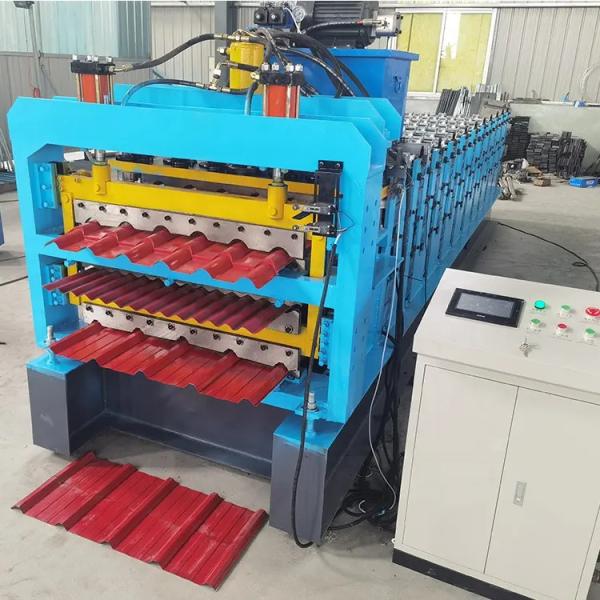

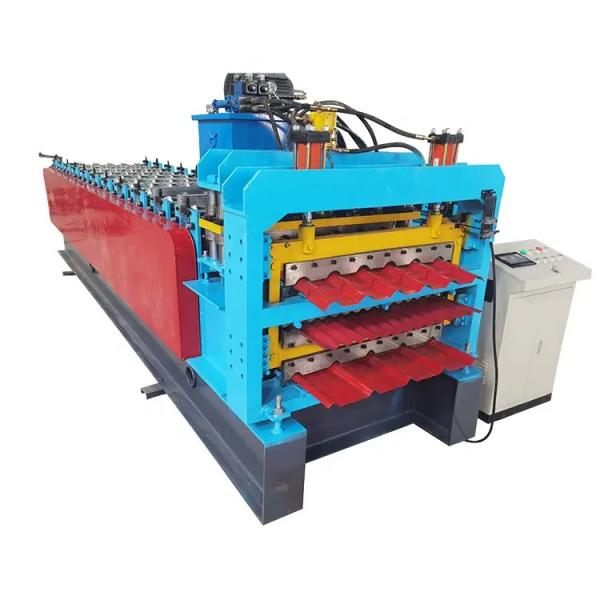

Machine frame.
The three-layer roof sheet roll forming machine adopts welded steel frame structure to ensure more stable operation of the roof plate machine. The steel frame surface is painted and can be customized. The steel frame is equipped with roller shaft, roller wheel, chain, drive motor, hydraulic pump station and control electric box to form the whole body. AC variable frequency motor reducer drive, chain drive, roller surface polishing, hard plating, heat treatment and chrome plating
.
 |
|

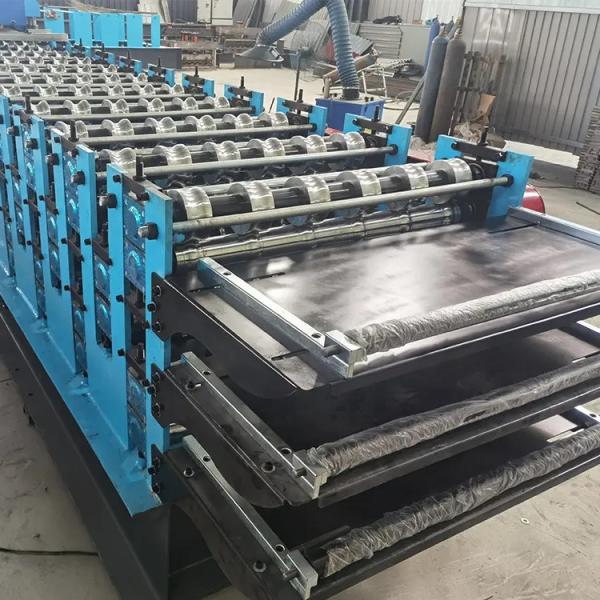

Forming roller.
The quality of the forming rollers of the three-layer roof sheet roller press will determine the shape of the roof panel. We can customize different types of rollers. The work of the roller forming machine is to drive the roller shaft through the power group, and use the roller forming wheel to roll the color steel plate with the specified thickness. The gap of the forming wheel can be adjusted to ensure the forming effect, and the thin plate or thick plate can be selected
 |
|
Control System.
There are different types of control components of the three-layer roof plate rolling forming machine. The standard type has button control, and different functions are realized through the button. PLC touch screen type can set data on the screen. Its price is
slightly higher, but it is more intelligent and automatic. The picture is a Spanish touch screen. We set two languages, one is English, and the other can be customized according to your needs. It is easy to identify and operate. |
 |
