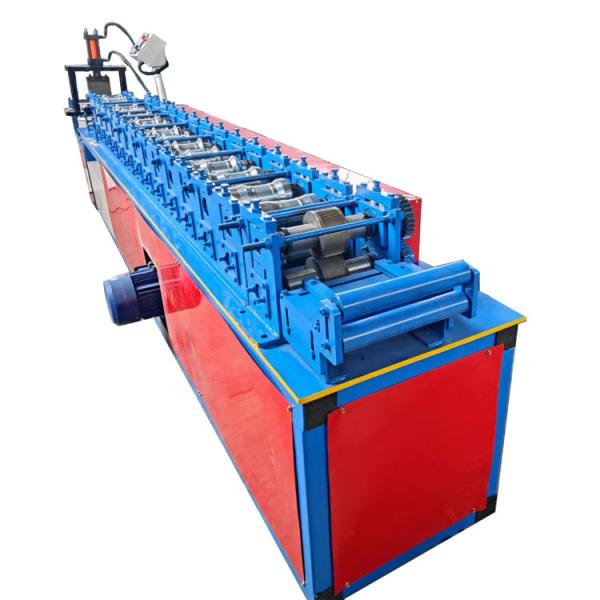

0.3-2MM Shutter Door Roll Forming Machine With 15 Stations
0.3-2MM Shutter Door Roll Forming Machine With 15 Stations
0.3-2MM Shutter Door Roll Forming Machine With 15 Stations
0.3-2MM Shutter Door Roll Forming Machine With 15 Stations
0.3-2MM Shutter Door Roll Forming Machine With 15 Stations
0.3-2MM Shutter Door Roll Forming Machine With 15 Stations
0.3-2MM Shutter Door Roll Forming Machine With 15 Stations
0.3-2MM Shutter Door Roll Forming Machine With 15 Stations
0.3-2MM Shutter Door Roll Forming Machine With 15 Stations
0.3-2MM Shutter Door Roll Forming Machine With 15 Stations
0.3-2MM Shutter Door Roll Forming Machine With 15 Stations
0.3-2MM Shutter Door Roll Forming Machine With 15 Stations
Specifications
Brand Name :
fms
Model Number :
173
Certification :
ce
Place of Origin :
china
MOQ :
1
Price :
8000-12000USD
Payment Terms :
T/T
Supply Ability :
1000
Delivery Time :
45Days
Packaging Details :
Nude
Machine Weight :
3000kg
Form Speed :
10-15
Roller Materials :
45#Steel
Warranty :
1
Thickness :
0.3-2MM
Hydraulic Motor :
11KW
Forming Stations :
15
Cutting Method :
Hydraulic cutting
Color :
depend on customer
Motor :
9.5KW
Description

COMPANY DESCRIPTION:

Botou FMS Roll Forming Machinery Co.,Ltd is a professional manufacturer located in Hebei province China. We are specialized in manufacturing different kinds of cold roll forming machine and automatic production line. Our main products include:
Roll forming machine: Wall steel panel roll forming machine Roof steel tile roll forming machine
Corrugated steel tile roll forming machine
Color coated steel glazed tile roll forming machine
JCH roll forming machine
Double deck roll forming machine C/Z type steel purlin roll forming machine
Color steel sandwich panel forming machine
Steel floor deck roll forming machine
Highway guardrail roll forming machine
Shutter door roll forming machine
Downpipe roll forming machine
Decoiler/ Recoiler
Bending/Shearing/Slitter/Leveling machine
Other cold roll forming machine as per your special requests. With the mature domestic market, we also pay much attention and energy on the oversea market. So far we have our customers in more than 20 countries in the Middle East, Southeast Asia, India, Russia, Africa, Middle Asia, etc. Your precious interest and inquiry will be highly appreciated. We are always looking forward to cooperating for mutual benefit in the future.
0.3-2MM Shutter Door Roll Forming Machine With 15 Stations0.3-2MM Shutter Door Roll Forming Machine With 15 Stations0.3-2MM Shutter Door Roll Forming Machine With 15 Stations0.3-2MM Shutter Door Roll Forming Machine With 15 Stations

Customized Manufacturer Steel Floor Deck Roll Forming Machine
Size of main part
about 6000 х 850 х 1300 mm(as your requirement)
Weight of main part
about 3 t
Processing material
galvanized coils yield strength till 550 Mpa
Material thickness
0.8-1.2mm
Input material width
Customized
Voltage
380 v 50 hz 3 phase or as request
Frame
400 H beam steel welded
Roller fixer
Middle plate (thickness 20mm)
Drive mode
2 inches double chain with chain tensors(gearbox type optional)
Material of rollers
Gcr15 quenching treat HRC58-60
Material of shafts
45# steel precision-machined
Diameter of shafts
φ 95 mm(as your requirement)
Number of rollers
as your requirement
Drive motor power
9.5KW
Forming speed
15-20 m per minute
0.3-2MM Shutter Door Roll Forming Machine With 15 Stations

Hydraulic decoiler with loading car

5 tons ,7 tons,8 tons,10 tons,12 tons,15 tons optional(or other customized)Click picture for details.8tons hot sale to U.S.

Full automatic easy installation and operation
0.3-2MM Shutter Door Roll Forming Machine With 15 Stations0.3-2MM Shutter Door Roll Forming Machine With 15 Stations
shearing system
Adopt double oil cylinder, more stable and more good cutting shaped.
0.3-2MM Shutter Door Roll Forming Machine With 15 Stations
transmission
Gear and chain,with chain tensors device can guarantee the chain is not loose after long time use.
0.3-2MM Shutter Door Roll Forming Machine With 15 Stations0.3-2MM Shutter Door Roll Forming Machine With 15 Stations

Feeding device

1.With handwheels adjustable for feeding different thickness
2.Rubber rollers for contact material surface.
0.3-2MM Shutter Door Roll Forming Machine With 15 Stations

FAQ

1. Q:Are you manufacturer?
A:Yes, we focus on cold roll forming machine manufacture over 20 years.

2. Q: if you can accept OEM? Design and manufacture according our photo.
A: Yes, we can accept OEM,we owned expert engineer team, professional design CAD drawings and use famous brand components according your demands.

3. Q:What's the warranty for your machine?
A: we provide 2years guarantee and provide lifetime technical support.

4. Q:How many workers is needed for the machine operation
A: One worker is enough, the machine use automatic PLC control system.

5. Do you have after sales support?
A: Yes,Our engineer can supply remote-video technical support and online support teach your worker.

6. Q.Can you be responsible for transport?
A.Yes,we owned expert export team, we can arrangement for you to your destination port or address.

7. Q:What service can you provide before order?
A:About the pre-sale service, We provide professional solutions according your demands,such as design,technical parameter,delivery flow etc. At the same time, we can supply invitation letter for your visit our factory and showing the machine operationfor you .

8. Q: What is the after- sale service?
A: we will supply lifetime technical support,quick-wear parts within 2years,Also can provide field maintenance and repair service.

9. Q:Any other service?
A: We can help you purchase raw material for machine,help you check ship date,update for you ship date etc

10. Q:Any certification?
A:Yes, we have SGS ISO certification.

Packaging & Shipping

0.3-2MM Shutter Door Roll Forming Machine With 15 Stations1.All export goods will be packed according to customer requirements before shipment and used in roof sheet roll forming machine.
2.Before the goods arrived destination port, we will provide customer bill of lading and clearance documents for making clearance customs.

Payment Term

1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of XinGang
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,
Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.

After Sales Service

1. The warranty of c purlin roll forming machine
is two years after the client receives the machine.
Within the two years, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost

0.3-2MM Shutter Door Roll Forming Machine With 15 Stations
