Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making
Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making
Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making
Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making
Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making
Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making
Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making
Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making
Specifications
Brand Name :
FMS
Model Number :
840/820/850
Certification :
CE
MOQ :
1
Price :
10000-15000USD
Payment Terms :
L/C, T/T, D/P
Supply Ability :
1000
Delivery Time :
45days
Packaging Details :
7500*1500*1400
Place of Origin :
china
Machine Size :
Depend on profiles
Machine Weight :
5000kg
Form Speed :
10-15
Roller Materials :
45#Steel
Warranty :
1
Thickness :
0.3-0.8
Hydraulic Motor :
5.5KW
Forming Stations :
18
Cutting Method :
Hydraulic cutting
Color :
depend on customer
Description

Triple Layer Roof Sheet Roll Forming Machine
Roof Sheet Double Layer Forming Machine,it is our company most popular products in building materials machine. For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.
When you choose roof sheet three layers roll forming machine, you had better learn popular shape in local,also raw material is an important considering data, if do not have good supplier in local, we can assist you purchase it in China together. we are professional factory and in this area for many years, any requires please contact us at any time
Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making
Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet MakingThree Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet MakingThree Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making
working principle.
The tile pressing machine belongs to the cold bending roll forming machine, which mainly presses the color steel plate into the required shape, size and shape by rolling. When the machine works, the power group drives the roller shaft, and the roller forming wheel is used to roll the color steel plate with the specified thickness. It is widely used in industrial and civil buildings, such as factory buildings, warehouses, gymnasiums, exhibition halls, cinemas and other rooms and walls.
Product Specification
No
Item
Data
1
Raw material width
1000-1200 mm
2
Sheet effective width
750-1000 mm
3
Raw material
Color steel sheet or galvanized steel sheet
4
Material thickness
0.3-0.8 mm or customized
5
Forming roller material
45# steel plated with chrome
6
Shaft diameter
80mm
7
Forming roll station
13-18steps
8
Main motor power
3 KW 4 KW 5.5 KW(according to type)
9
Hydraulic power
4 KW (according to type)
10
Control system
PLC control

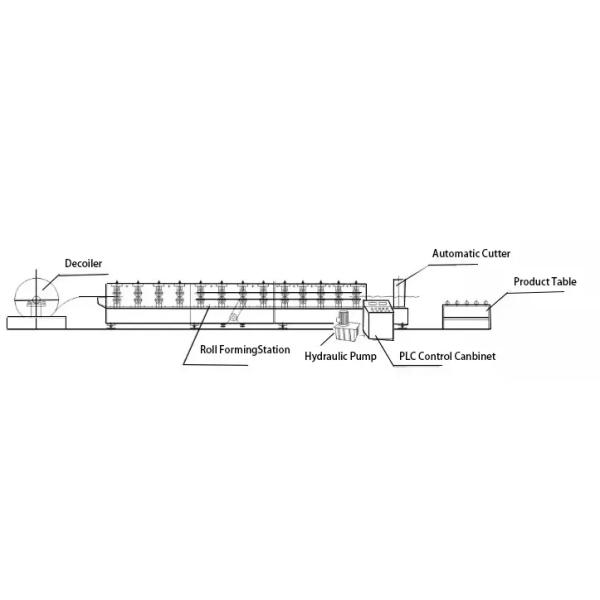

Roll Forming Machine Components:

No. Name Qty
1 De-coiler 3Set
2 Roll Forming Machine 1 Set
3 Hydraulic Cutting Devic 1 Set
4 PLC Control Box 1 Set
5 Output table 1 Set

Display and Application
Roof sheet three/double layer roll forming machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
