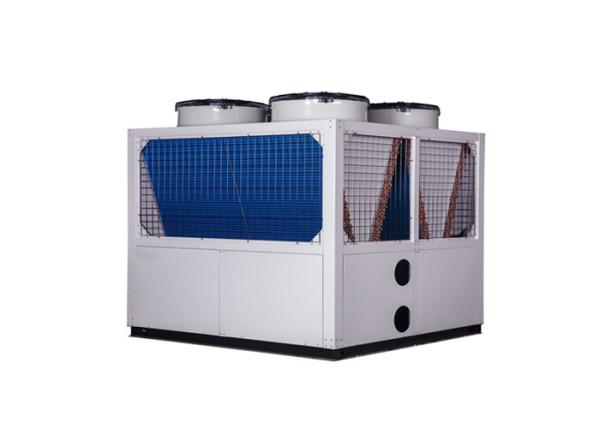

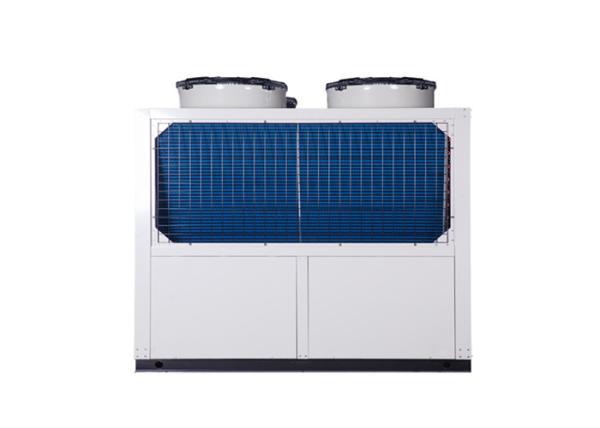

EVI Heating Cooling Domestic Heat Pump , Air Source Heat Pump Pool Heater
EVI Heating Cooling Domestic Heat Pump , Air Source Heat Pump Pool Heater
EVI Heating Cooling Domestic Heat Pump , Air Source Heat Pump Pool Heater
EVI Heating Cooling Domestic Heat Pump , Air Source Heat Pump Pool Heater
Specifications
Brand Name :
Shenglin
Model Number :
KFXFC series
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Payment Terms :
T/T, Western Union
Supply Ability :
1000 PCS/month
Delivery Time :
18~25 days
Packaging Details :
Plywood case
COP :
2.8~3.0
Compressor :
Copeland EVI compressor
Air side heat exchanger type :
Finned heat exchanger
Water side heat exchanger type :
Shell and tube heat exchanger
Supply power :
380v 3N~50Hz
Refrigerant :
R22, R407C and R410A
Working ambient temperature :
-35~+43℃
Heating capacity range :
9~150kW
Water outlet temp. :
55° C
Application :
It is suitable for villa, hotel, office etc
Description

EVI Heating & Cooling Heat Pump

Description:

This series heat pump can work in very low climate area down to -30℃. The heat pump is equipped with EVI compressor and high efficiency in low temperature conditions, its heating performance is higher by 50%-80% than normal heat pump. It is widely used in cold area and even work well at -30℃, can be matched with fan coil, floor radiator heating, it is suitable for villa, hotel, office etc.

Features:

Heating capacity range: 9kW, 14kW, 17kW, 32kW, 45kW, 65kW, 75kW, 90kW, 150kW.
Copeland EVI compressor and Schneider electrical components.
Working ambient temperature down to -30℃
Automatically defrosting.
Intelligent controller and adjustment by microprocessor.
High efficiency tube in shell heat exchanger.
Match with floor heating, fan coils and central AC function.

Optional:

Galvanized metal cabinet or stainless steel cabinet.
Refrigerant: R22, R407C and R410A
Only heating function is optional.


Technical paramater:

MODEL KFXFC-009SEI KFXFC-014SI KFXFC-018SI KFXFC-020UII DKFXFC-032UII
Ambient temp. range ℃ -30~+43 -30~+43 -30~+43 -30~+43 -30~+43
Power supply / 220V 1N~50Hz 220V 1N~50Hz 220V 1N~50Hz 380V 3N~50Hz 380V 3N~50Hz
Electric shock proof grade / Class I Class I Class I Class I Class I
Protection grade / IPX4 IPX4 IPX4 IPX4 IPX4
Cooling capacity/COP KW/- 7.3/2.8 12.0/3.0 14.5/2.6 27.0/2.8 27.0/2.8
Low-temperature heating(A-12W41)/COP KW/- 5.1/2.2 9.2/2.4 11.0/2.3 20.0/2.3 20.0/2.3
Normal temperature heating(A7W45)/COP KW/- 8.8/3.3 14.4/3.7 18.4/3.6 32.0/3.6 32.0/3.6
COP A7W35а/COP KW/- 9.4/4.1 14.5/4.5 18.5/4.3 33.0/4.3 33.0/4.3
A-7W45/COP KW/- 5.8/2.3 9.4/2.6 13.1/2.6 23.5/2.3 23.5/2.6
A-15W45/COP KW/- 4.5/2.2 8.0/2.2 10.2/2.1 19.5/2.2 19.5/2.2
A-20W45/COP KW/- 4.2/1.9 6.5/1.9 8.6/2.0 16.5/2.0 16.5/2.0
Rated cooling input power KW 2.61 4 5.6 9.6 9.6
Low temperature heating input power KW 2.32 3.83 4.8 8.7 8.7
Max. working current A 20 32 40 25 25
Compressor Type / Scroll Scroll Scroll Scroll Scroll
Quantity PCS 1 1 1 2 2
Fan motor Quantity PCS 1 2 2 2 2
Water yield L/h 1600 2500 2500 4600 4600
Refrigerant type/Weight -/kg R407c/2.2 R407c/4.5 R407c/5.0 R407c/7.5×2 R407c/4.0×2
Dimension (W×D×H) mm 1087×435×901 1052×362×1346 1120×435×1355 1500×850×1750 1530×750×1370
Packing dimension (W×D×H) mm 1230×500×1050 1160×540×1460 1230×540×1530 1600×950×1900 1650×850×1470
Noise dB(A) 54 58 56 65 65
Net weight kg 70 140 172 350 350
Gross weight kg 80 150 185 380 380
Circulating pipe diameter inch G1" external thread G1 1/4" external thread G1.2" external thread G1.5" external thread G1.5" external thread

MODEL DKFXFC-032UII KFXFC-045UII KFXFC-065UII KFXFC-075UII KFXFC-090UMII KFXFC-150UII KFXFC-180UMII
Ambient temp. range ℃ -35~+43
Power supply / 380V 3N~50Hz
Electric shock proof grade / Class I
Protection grade / IPX4
Cooling capacity/COP KW/- 27.0/2.8 35/3.0 53.0/3.0 65.0/3.1 70.0/2.8 130.0/2.8 140.0/2.8
Low-temperature heating
(A-12W41)/COP		 KW/- 20.0/2.3 26.0/2.3 37.5/2.5 41.0/2.5 55.0/2.4 82.0/2.5 110.0/2.4
Normal temperature heating(A7W45)/COP KW/- 32.0/3.6 43.5/3.6 63.0/3.9 73.0/3.9 90.0/3.6 146.0/3.9 180.0/3.6
Heating capacity A7W35а/COP KW/- 33.0/4.3 45.0/4.3 65.0/4.5 75.0/4.5 92.0/4.3 150.0/4.5 185.0/4.3
A-7W45/COP KW/- 23.5/2.6 30.5/2.6 41.0/2.6 45.0/2.6 62.0/2.6 90.0/2.6 122.0/2.6
A-15W45/COP KW/- 19.5/2.2 25.0/2.2 34.0/2.2 38.0/2.2 50.0/2.2 76.0/2.2 100.0/2.2
A-20W45/COP KW/- 16.5/2.0 21.0/2.0 30.2/2.0 33.0/2.0 43.0/2.0 66.0/2.0 86.0/2.0
Rated cooling input power KW 9.6 11.7 17.7 21 25 46.4 50
Low temperature heating input power KW 8.7 11.3 15 16.4 22.9 32.8 45.8
Normal temperature heating input power KW / / 16.2 18.7 25 37.4 50
Max working current A 25 32 47 55 65 110 130
Compressor Type / Scroll
Quantity PCS 2 4
Fan motor Quantity PCS 2 4
Max. water temperature ℃ 60
Water yield L/h 4600 6000 9100 11200 12000 22400 24100
Refrigerant type/Weight -/kg R410a/4.0×2 R410a/8.0×2 R410a/12×2 R410a/15×2 R410a/15×2 R410a/15×4 R410a/15×4
Dimension (W×D×H) mm 1530×750×1370 1500×850×1750 2100×1100×2000 2100×2060×2250
Packing dimension (W×D×H) mm 1650×850×1470 1750×950×1900 2260×1360×2270 2230×2250×2400
Noise dB(A) 65 65 68 68 68 69 69
Net weight kg 350 380 850 950 950 1900 1900
Gross weight kg 380 420 900 1000 1000 2000 2000
Circulating pipe diameter inch G1.5"external thread G1.5"external thread DN50 flange DN50 flange DN65 flange DN65 external thread DN65 external thread

Household heating+ cooling installation diagram:

EVI Heating Cooling Domestic Heat Pump , Air Source Heat Pump Pool Heater

Packing:

EVI Heating Cooling Domestic Heat Pump , Air Source Heat Pump Pool Heater EVI Heating Cooling Domestic Heat Pump , Air Source Heat Pump Pool Heater


Reference:

Country: Taiwan,China, middle school
Model: KFXR-018 UII,KFXR-045UII
Application: Domestic hot water		 Country: Taiwan,China,residential building
Model: KFXR-036UII,KFXR-900UII
Application: Domestic hot water
EVI Heating Cooling Domestic Heat Pump , Air Source Heat Pump Pool Heater EVI Heating Cooling Domestic Heat Pump , Air Source Heat Pump Pool Heater
Country: Beijing, China
Model: KFXF-180 UII
Application: Breeding heating		 Country: Yunan, China
Model: /
Application: Aloe drying
EVI Heating Cooling Domestic Heat Pump , Air Source Heat Pump Pool Heater EVI Heating Cooling Domestic Heat Pump , Air Source Heat Pump Pool Heater
