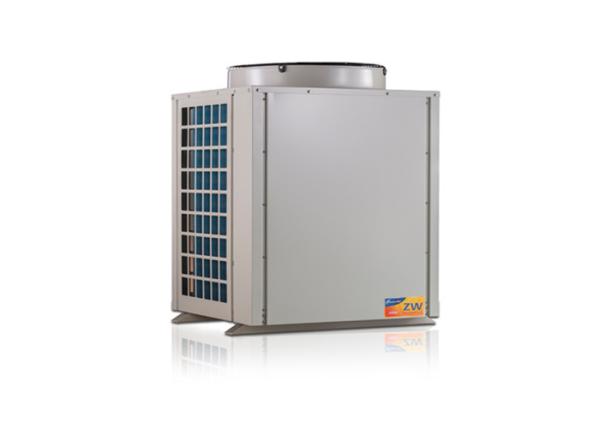

EVI Scroll DKFXR Air To Water Heat Pump 60KW Domestic For Commercial Use
EVI Scroll DKFXR Air To Water Heat Pump 60KW Domestic For Commercial Use
EVI Scroll DKFXR Air To Water Heat Pump 60KW Domestic For Commercial Use
EVI Scroll DKFXR Air To Water Heat Pump 60KW Domestic For Commercial Use
Specifications
Brand Name :
Shenglin
Model Number :
DKFXR series
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
1700~7250USD
Payment Terms :
T/T, Western Union
Supply Ability :
1000 PCS/month
Delivery Time :
18~25 days
Packaging Details :
Plywood case
COP :
3.8
Compressor :
Copeland EVI compressor
Air side heat exchanger type :
Finned heat exchanger
Water side heat exchanger type :
Shell heat exchanger
Supply power :
380v 3N~50Hz
Refrigerant :
R22, R407C and R410A
Working ambient temperature :
-30~+43℃
Heating capacity range :
16.5~60kW
Water outlet temp. :
55° C
Description

EVI Air Source Heat Pumps For Commercial Use


Description:

This series water heater can work in very low temp., down to -30℃. The heat pump is equipped with EVI compressor and high efficiency in low cold conditions, its heating performance is higher by 50-80% than normal water heater heat pump. It is widely used in cold climate and even work well at -30℃, supply the hot water for villa, hotel, office, hospital etc.

Technical paramater:

-30℃ Low temperature commercial water heater heat pump
MODEL DKFXR-017SII DKFXR-033UII DKFXR-060UII
Ambient temp. range ℃ -30~+43℃ -30~+43℃ -30~+43℃
Rated heating capacity KW 16.5 33 60
COP W/W 3.7 3.8 3.8
Rated power input KW 4.45 8.7 15.6
Max. running current A 12.5 26 48
Power supply / 380V 3N~50Hz
IP code / IPX4
Safety function / High and low pressure protection; Overload protection;
Temperature protection; Power phase sequence protection, etc.
Refrigerant type/weight -/kg R407c/4.0 R407c/4.0×2 R407c/8.5×2
Compressor QTY PCS 1 2 2
Compressor type / EVI Scroll Compressor
Max. temp. outlet water ℃ 60
Water side heat exchanger type / Shell heat exchanger
Air side heat exchanger type / Finned heat exchanger
Waterpipe nozzle size / G1'' Internal thread G1.5'" Internal thread DN100
Rated water flow m³/h 2.8 5.7 10.3
Air out type / Sideward Top discharge Top discharge
Fan motor QTY PCS 1 1 2
Noise dB/(A) 56 62 69
Machine dimension (W×D×H) mm 1120×405×1355 1500×690×1270 2100×1100×2000
Packing dimension (W×D×H) mm 1200×540×1530 1550×740×1400 2140×1200×2040
Net weight kg 155 350 700
Gross weight kg 165 370 750
Remarks:
1. Test conditions: (DB/WB) 7°C/6°C, inlet water temperature 9°C, outlet water temperature 55°C.
2. Due to product improvement, above datas are subject to change without prior notice, please take the rating plate as standard.

Packing:

EVI Scroll DKFXR Air To Water Heat Pump 60KW Domestic For Commercial Use EVI Scroll DKFXR Air To Water Heat Pump 60KW Domestic For Commercial Use

EVI heat pump diagram:

EVI Scroll DKFXR Air To Water Heat Pump 60KW Domestic For Commercial Use

Reference:

Country: Taiwan,China, middle school
Model: KFXR-018 UII,KFXR-045UII
Application: Domestic hot water		 Country: Taiwan,China,residential building
Model: KFXR-036UII,KFXR-900UII
Application: Domestic hot water
EVI Scroll DKFXR Air To Water Heat Pump 60KW Domestic For Commercial Use EVI Scroll DKFXR Air To Water Heat Pump 60KW Domestic For Commercial Use
Country: Beijing, China
Model: KFXF-180 UII
Application: Breeding heating		 Country: Yunan, China
Model: /
Application: Aloe drying
EVI Scroll DKFXR Air To Water Heat Pump 60KW Domestic For Commercial Use EVI Scroll DKFXR Air To Water Heat Pump 60KW Domestic For Commercial Use
