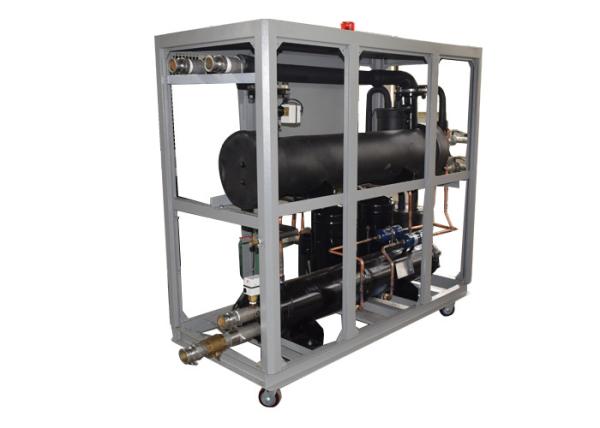

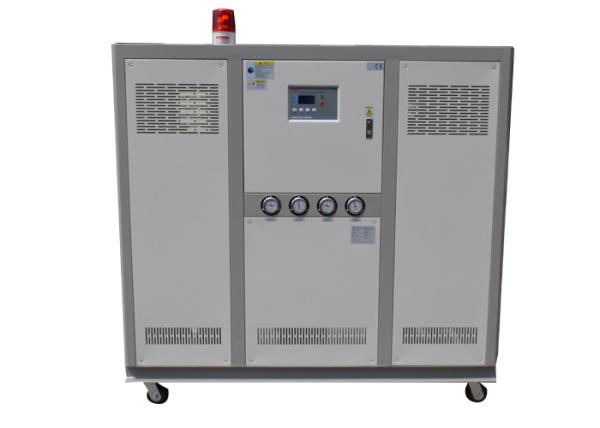

Hermetic Scroll Water Cooled Chiller
Hermetic Scroll Water Cooled Chiller
Hermetic Scroll Water Cooled Chiller
Hermetic Scroll Water Cooled Chiller
Specifications
Brand Name :
Shenglin
Model Number :
SJ Series
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
1000~69000 USD/unit
Payment Terms :
Western Union, T/T
Supply Ability :
100 units per month
Delivery Time :
30~35 days
Packaging Details :
Plywood wooden box
Refrigerant :
R22 or R404A
Compressor :
Imported brand compressor
Warranty :
One year after leave the factory
Water outlet temperature :
10 ℃
Condenser type :
Shell and tube heat exchanger
Evaporator type :
Shell and tube heat exchanger
Supply power :
380V~415V/3N/50HZ
Controller :
Micro-computer or PLC(optional)
Description

R22 Or R404A Water-cooled Industrial chiller

Features:
High/Low pressure protection for the compressor and overheating protection inside the machine. Low water level alarm and low temperature alarm. Imported compressor from Europe,US and Japan.Refrigerating system welded with oxygen free method, to reduce oxides and ensure the smooth surface.Throttle components from Danfosss(Denmark) and Alco(US). SUS304 stainless steel water tank, to avoid corrosion or water leak.
Stainless plate, coil, shell, and tube or fin type efficient heat exchanger. RS485 communication function, to realize automatic management(optional). Electrical devices supplied from OMRON, FUJI.TE,LG,MOELLER and SCHNEIDER. Control mode:imported micro-computer or PLC(optional) Perfect safety protection, failure display, and not requiring professional personel for maintenance. Highly efficient evaporator and conderser, to save over 30% energy. 2 compressor heads for over SJ-10WD, for individual or joint operation

Technical parameters table of Water-cooled Industrial chiller:

Model
parameter

SJ-

03WS

SJ-

04WS

SJ-

05WS

SJ-

06WS

SJ-

08WD

SJ-

10WD

SJ-

12WD

SJ-

15WD

SJ-

20WD

SJ-

25WD

SJ-

30WT

SJ-

36WT

SJ-

40WF

SJ-

50WF

SJ-

60WF
Cooling capacity KW(50HZ) 9.34 12.4 16.1 19 24.8 32.2 38 49.1 66 76 99 114 132 152 198
Kcal/h 8032 10664 13846 16340 21328 27370 32680 42226 56760 65360 85140 98040 113520 130720 170280
Motor input KW 3.2 3.68 4.21 4.51 7.36 8.42 9.02 11.56 15.4 17 23.6 26 30.2 33.5 39.6
Maximum Current A 6.07 6.75 9.8 10.5 13.5 19.6 21 24 29.6 31.8 45.6 48.6 58.3 62.3 76.2
Power Supply 3N 380V/415V 50HZ 3N 380V/415V 50HZ
Refrigerant Name R22 R22
Charge(KG) 1.7 2.2 2.8 3.4 2.2*2 2.8*2 3.4*2 4.2*2 5*2 6.3*2 5*3 6.2*3 5*4 6.2*4 5*6
Control Type Capillary Tube/External Balanced Thermostatic Expansion Valve
Compressor Type Hermetic Scroll or Piston
Motor(KW) 2.81 3.31 3.46 3.76 3.31*2 3.46*2 3.76*2 3.46+6.6 6.6*2 7.4*2 6.6*3 7.4*3 6.6*4 7.4*4 6.6*6
Cooling Water Flow(m3/h) 2.1 3.2 4.1 4.8 6.4 8.2 9.6 11.9 15.9 18.2 21.32 27.3 31.7 36.4 47.5
In/Out Pipe Size G1" G1" G1" G1" G1-1/2" G2" G2" G2" G2" G2" G2-1/2" G3" G3" G3" G3"
Flow(m3/h) 1.65 2.14 2.8 3.3 4.3 5.6 6.6 8.5 11.3 13.1 17.06 19.7 22.8 26.2 34
Tank(m3) 0.038 0.038 0.065 0.08 0.188 0.188 0.188 0.285 0.28 0.4 0.4 0.4 0.55 0.3 ～
Chilled Water In/Out Pipe Size G3/4" G3/4" G1" G1" G1-1/2" G2" G2" G2" G2-1/2" G2-1/2" G2-1/2" G3" G3" G3" G3"
Water Pump Motor(KW) 0.375 0.375 0.75 0.75 0.75 1.5 1.5 1.5 2.2 2.2 3.75 3.75 3.75 3.75 ～
Pressure(Kpa) 242 242 290 290 290 205 205 205 220 220 250 250 250 250 250
Size Length(mm) 830 830 1080 1080 1300 1300 1300 1680 1680 1880 2200 2200 2400 2400 2400
Width(mm) 460 460 580 580 610 610 710 775 775 914 1000 1000 1000 1000 1150
Height(mm) 1020 1020 1230 1230 1445 1445 1445 1480 1480 1650 1650 1650 1650 1650 1650
Weight(KG) KG 120 140 150 200 210 290 310 400 440 580 690 760 900 1000 1000

Cooling capacity reference: inlet 15℃ cold water, outlet 10℃ cold water, inlet air temperature 35℃.

We reserve the right to make changes to the above specification without notification.
Application:
Plastics Industry Printing Industry Medical Industry


Hermetic Scroll Water Cooled Chiller


Hermetic Scroll Water Cooled Chiller


Hermetic Scroll Water Cooled Chiller
Laser Cutting Industry Brewery Industry Chemical Industry


Hermetic Scroll Water Cooled Chiller


Hermetic Scroll Water Cooled Chiller


Hermetic Scroll Water Cooled Chiller
Food Industry Ice Rink Industry HVAC industry


Hermetic Scroll Water Cooled Chiller


Hermetic Scroll Water Cooled Chiller


Hermetic Scroll Water Cooled Chiller

Why choose us:

1) We can help buyers design specific products or produce products according to buyers' design

2) We can print logo according to buyers' requirement

3) We has exported to many countries,such as Singapore, Philippines, Vietnam, Argentina, Peru, Mongolia, Hong Kong, UAE,Russia, Poland etc.

4) Design term:We have professional design team.

5) Professional factory: We are manufacturer, specializing in manufacturing heat exchangers and air conditioning units for over 16years, competitive price with good quality.
6) Rapid response to your needs: We will reply within 24 hours after receiving you letter. If you have urgent thing, welcome to call us.

7) The Most Efficient Service, Best Quality and Excellent Reputation.
