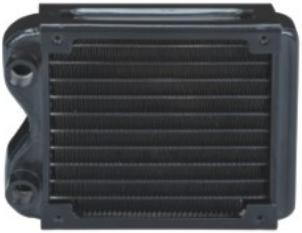

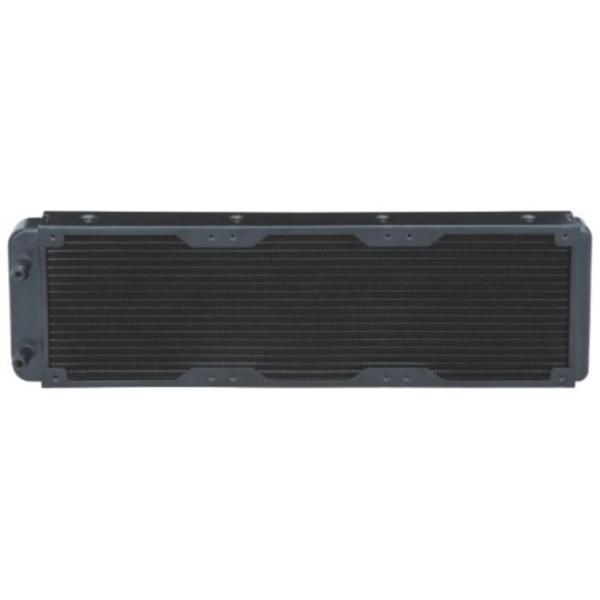

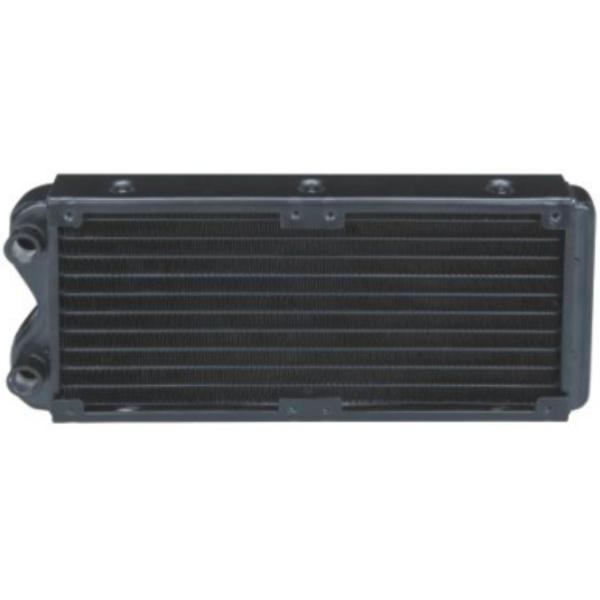

3003 Aluminum Pc Radiator
3003 Aluminum Pc Radiator
3003 Aluminum Pc Radiator
3003 Aluminum Pc Radiator
3003 Aluminum Pc Radiator
3003 Aluminum Pc Radiator
3003 Aluminum Pc Radiator
3003 Aluminum Pc Radiator
Specifications
Brand Name :
Shenglin
Certification :
RoHS
Place of Origin :
China
MOQ :
10 pcs
Price :
6~30USD/Unit
Payment Terms :
T/T, Western Union
Supply Ability :
10000 Pcs Per Month
Delivery Time :
7~10 days
Packaging Details :
Plywood wooden box or carton box+ pallet
Tube material :
Aluminum
Fin material :
Aluminum
Plate material :
Aluminum
Application :
PC, 3D printer (circuit control), laser printer, medical equipment......
Tube type :
Flat
Frame treating :
Powder coating
If in stock or not :
Some models are in stock
Match fan :
Available
Description

Water Cooling Radiator For PC Cooling

Features

1. Material: 3003 aluminum
2. Flat tube: 22,18,26,32,16mm
3. Fin height: 7~8mm, fin space 2.2~3.5mm
4. Fin height: 4.5~4.55mm, fin space 1.8~2.2mm
5. Can do powder coating.

Technical parameter

Model Product data Product photo Remark
CPU-001 Core dimension:89.5*99*16mm Outside dimension:131*100*32mm
Installation dimension:82.5*82.5mm Inlet and outlet:G 1/4 screw thread		 3003 Aluminum Pc Radiator
CPU-120A-10 Core dimension:116*108*16mm Outside dimension:156*121*32mm
Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm		 3003 Aluminum Pc Radiator The inlet and outlet diameter of this model has two type, Φ8 and 10mm
CPU002B-10 Core dimension:116*108*16mm Outside dimension:156*121*32mm
Installation dimension:105*105mm Inlet and outlet:G 1/4 screw thread		 3003 Aluminum Pc Radiator
CPU-003A-10 Core dimension:234*118*16mm Outside dimension:275*121*32mm
Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm		 3003 Aluminum Pc Radiator The inlet and outlet diameter of this model has two type, Φ8 and 10mm
CPU-003B-10 Core dimension:234*118*16mm Outside dimension:275*121*32mm
Installation dimension:105*105mm Inlet and outlet:G 1/4 screw thread		 3003 Aluminum Pc Radiator
CPU-004 Core dimension:80*80*16mm Outside dimension:105*83*26mm
Installation dimension:71*71mm Inlet and outlet:∅ 8mm		 3003 Aluminum Pc Radiator
CPU-120A-12 Core dimension:116*119*16mm Outside dimension:156*121*32mm
Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm		 3003 Aluminum Pc Radiator The inlet and outlet diameter of this model has two type, Φ8 and 10mm
CPU-120A-18 Core dimension:116*119*16mm Outside dimension:156*121*32mm
Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm		 3003 Aluminum Pc Radiator The inlet and outlet diameter of this model has two type, Φ8 and 10mm
CPU-120B-18 Core dimension:116*119*16mm Outside dimension:156*121*32mm
Installation dimension:105*105mm Inlet and outlet:G 1/4 screw thread		 3003 Aluminum Pc Radiator
CPU-240A-12 Core dimension:234*118*16mm Outside dimension:275*121*32mm
Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm		 3003 Aluminum Pc Radiator The inlet and outlet diameter of this model has two type, Φ8 and 10mm
CPU-240A-18 Core dimension:234*118*16mm Outside dimension:275*121*32mm
Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm		 3003 Aluminum Pc Radiator The inlet and outlet diameter of this model has two type, Φ8 and 10mm
CPU-240B-18 Core dimension:234*118*16mm Outside dimension:275*121*32mm
Installation dimension:105*105mm Inlet and outlet:G 1/4 screw thread		 3003 Aluminum Pc Radiator
CPU-360A-18 Core dimension:354*118*16mm Outside dimension:395*121*32mm
Installation dimension:105*105mm Inlet and outlet:∅ 10mm/∅ 8mm		 3003 Aluminum Pc Radiator The inlet and outlet diameter of this model has two type, Φ8 and 10mm

Application:

PC, 3D printer (circuit control), laser printer, medical equipment, hairdressing equipment, CNC machine tool computer version, electrical cabinet (water cooling), automation equipment (such as CNC machine), welding machine, wine cabinet, small system Ice machine and small air conditioner.
