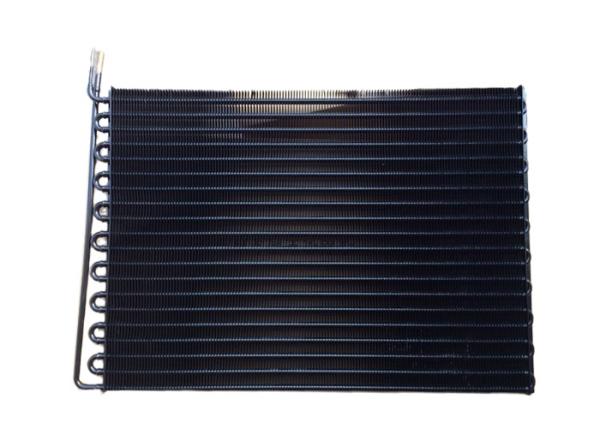

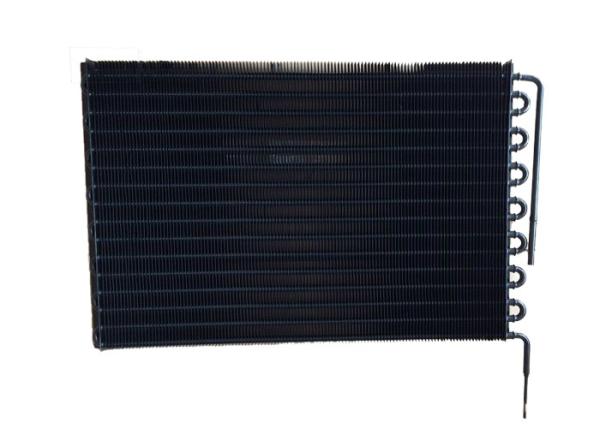

Aluminum Tube Fin Heat Exchanger Flat Corrugated Window Type
Aluminum Tube Fin Heat Exchanger Flat Corrugated Window Type
Aluminum Tube Fin Heat Exchanger Flat Corrugated Window Type
Aluminum Tube Fin Heat Exchanger Flat Corrugated Window Type
Aluminum Tube Fin Heat Exchanger Flat Corrugated Window Type
Aluminum Tube Fin Heat Exchanger Flat Corrugated Window Type
Specifications
Brand Name :
Shenglin
Certification :
RoHS
Place of Origin :
China
MOQ :
10 pcs
Price :
50~5000USD/Unit
Payment Terms :
T/T, Western Union
Supply Ability :
10000 Pcs Per Month
Delivery Time :
15~20 days
Packaging Details :
Plywood wooden box or pallet
Tube material :
Aluminum
Fin material :
Aluminum
Plate material :
Stainless steel/Aluminum/Galvanized steel
Fin type :
Flat, corrugated or window type
Tube type :
Plain copper tube or inner grooved copper tube
Medium :
Mainly freon and water
Cooling way :
Air cooled
Application :
Refrigerator or automobile industry
Description

Aluminum Tube Aluminum Fin Heat Exchanger

Feature:

1. Widely used in air conditioning industry, refrigeration industry, cold room and other cooling system.
2. Pitch of fins can be adjusted between 1.8—5.8mm.
3. We can supply products as per customized samples or drawing
4. Did gas examination under 3.0Mpa air pressure to ensure the tightness.
5. Suitable for water, R134A, R22, R404A, R407C refrigerant and so on

Mold:

Fin Pattern Al Tube O.D.(mm) Row Space(mm) Hole Space(mm) Common Al tube thickness(mm) Fin Space(mm)
A 7 12.7 21 0.5~0.71 1.3~2.5
B 7.94 17.05 20.05 0.5~0.71 1.8~3.0
C 7.94 15.88 25.4 0.5~0.71 1.8~3.0
D 9.52 15.88 25.4 0.5~0.71 1.6-2.6
E 9.52 12.7 25.4 0.5~0.71 1.6-2.5
F 9.52 21.65 25 0.5~0.71 1.6~5
G 12.75 27.5 31.75 0.7-1.2 2.5~5
H 15.88 33 38.1 0.7-1.2 2.5~5

Fin Type:

Flat fin Sine wave with blade fin Smooth sine wave fin
Aluminum Tube Fin Heat Exchanger Flat Corrugated Window Type Aluminum Tube Fin Heat Exchanger Flat Corrugated Window Type Aluminum Tube Fin Heat Exchanger Flat Corrugated Window Type
Window fin Sesamoid fin
Aluminum Tube Fin Heat Exchanger Flat Corrugated Window Type Aluminum Tube Fin Heat Exchanger Flat Corrugated Window Type

Application:

Aluminum Tube Fin Heat Exchanger Flat Corrugated Window Type
