Power Plant 2.0mm Frame Air Dry Coolers
Power Plant 2.0mm Frame Air Dry Coolers
Power Plant 2.0mm Frame Air Dry Coolers
Power Plant 2.0mm Frame Air Dry Coolers
Power Plant 2.0mm Frame Air Dry Coolers
Power Plant 2.0mm Frame Air Dry Coolers
Power Plant 2.0mm Frame Air Dry Coolers
Power Plant 2.0mm Frame Air Dry Coolers
Specifications
Brand Name :
Shenglin
Model Number :
SHSL-D4 Series
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
100 units per month
Delivery Time :
30~35days
Packaging Details :
Plywood wooden box or pallet
Price :
500~30000 USD/Unit
Tube material :
Copper
Fin material :
Aluminum
Frame material :
2.0mm galvanized steel
Power supply :
380V/3P/50Hz or 380V/3P/60Hz
Fin coating :
Epoxy resin is available
Frame colour :
White
Options A :
Frame material can be stainless steel
Options B :
Frame material can aluminum also
Description

Air Dry Cooler For Power Plant And Power Station

Features
1. High efficiency heat exchanger: capacity designs for maximizing the heat transfer relative to the energy consumption of the fan. Tube and tube coupling design for low pressure drop in the coil on the media sides(maximum 100KPa at water designing condition). Our thermodynamic and aerodynamic designing software is long year tested and proved in Germany
2. Fan: only choose low specific energy consumption fans. Fan nozzle designs for maximum air flow and air throw.Our fans from the world`s leading manufacturer are practically proved to be reliable in operation and long lasting. Motor: protection class IP 54 and insulation class F. Air separator for each fan.
3. We facilitate you to have a long lasting and low maintainance operation. Durable material and rigid enclosure with hard gloss powder coated finish. Protective enclosure for both manifolds and U-bends. Unit design for outdoor installation. 100% leakage tested at 31bar.

Options
1. Coil design refrigerant: water, oil, glycol.
2. Multiple circuits.
3. Sub-cooling circuits.
4. Stainless steel or aluminum casing.
5. Coated aluminum or copper fins.
6. Explosion proof motor.
7. Customized fin spacing.

Technical parameter
Dry cooler D4 series parameter(fin space 2.1mm)

Type

D4-176-

4X800

D4-191-

4X800

D4-205-

4X800

D4-267-

6X800

D4-291-

6X800

D4-315-

6X800

D4-361-

8X800

D4-394-

8X800

D4-414-

8X800
Capacity Water 35℃ outdoor temp. Inlet 45℃, KW 175.6 190.6 205.4 266.5 291.2 314.6 361.4 394.4 414.4
outlet 40℃
20% Glycol Inlet 45℃ 171.5 186.5 201 258 282.3 308.6 352.9 385.6 405.6
outlet 40℃
Medium Water flow M3/h 30.5 33.1 35.7 46.3 50.6 54.7 62.8 68.6 72.1
Pressure drop kPa 98 84 70 48 39 93 98 82 65
Air flow M3/h 86771 83195 79955 13054 124786 119924 173533 166376 159905
Fan motor(400V/3N/50HZ) W 7200 7200 7200 10800 10800 10800 1440 1440 1440
A 15.2 15.2 15.2 22.8 22.8 22.8 30.4 30.4 30.4
Fan No X φ 2X2X800 2X2X800 2X2X800 2X3X800 2X3X800 2X3X800 2X4X800 2X4X800 2X4X800
Sound pressure level dB(A) 54 54 54 56 56 56 58 58 58
10m

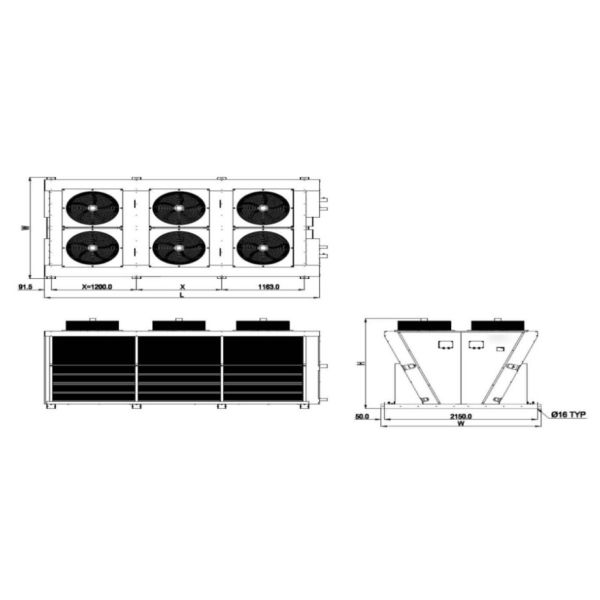

Dimension L mm 2670 2670 2670 3870 3870 3870 5070 5070 5070
W mm 2250 2250 2250 2250 2250 2250 2250 2250 2250
H mm 2000 2000 2000 2000 2000 2000 2000 2000 2000
Inlet φ mm 2X2-1/2” 2X2-1/2” 2X2-1/2” 2X3” 2X3” 2X3” 2X4” 2X4” 2X4”
Inlet φ mm 2X2-1/2” 2X2-1/2” 2X2-1/2” 2X3” 2X3” 2X3” 2X4” 2X4” 2X4”
Product weight(empty) kg 698 735 835 1135 1225 1617 1753 1894 2042

Power Plant 2.0mm Frame Air Dry Coolers


Application:
Industrial field: process engineering, heat / power plant, power generation, chemical industry, air conditioning chiller, heat transformer, smelting, etc.. It is suitable for all equipment which needs heat dissipation and is installed in the open air.
