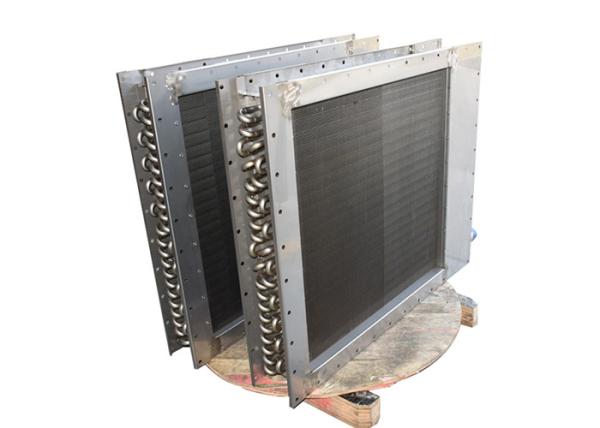

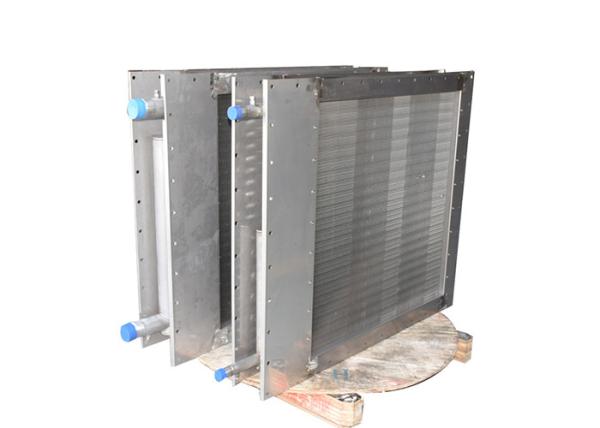

15.88mm Stainless Steel Tube Fin Heat Exchanger for Air conditioner
15.88mm Stainless Steel Tube Fin Heat Exchanger for Air conditioner
15.88mm Stainless Steel Tube Fin Heat Exchanger for Air conditioner
15.88mm Stainless Steel Tube Fin Heat Exchanger for Air conditioner
15.88mm Stainless Steel Tube Fin Heat Exchanger for Air conditioner
15.88mm Stainless Steel Tube Fin Heat Exchanger for Air conditioner
15.88mm Stainless Steel Tube Fin Heat Exchanger for Air conditioner
15.88mm Stainless Steel Tube Fin Heat Exchanger for Air conditioner
Specifications
Brand Name :
Shenglin
Certification :
RoHS
Place of Origin :
China
MOQ :
10 pcs
Price :
100~10000USD/Unit
Payment Terms :
T/T, Western Union
Supply Ability :
10000 Pcs Per Month
Delivery Time :
15~25 days
Packaging Details :
Plywood wooden box or pallet
Tube material :
Stainless steel
Fin material :
Stainless steel
Coating :
Powder coating, epoxy resin, painting, heresite coating is available
Plate material :
Stainless steel
HS code :
8415901000
Fin type :
Flat, corrugated/sine wave
Basic tube O.D. :
9.52/12.75/15.88
Application :
Air conditioner, freezer, laser machine, heat pump, ice maker......
Description

Stainless Steel Tube And Stainless Fin Heat Exchangers

Mold:

No.

Tube O.D.

(mm)

Fin Pattern

Fin

Type

 Fin space Remark

Row Space

(mm)

Hole Space

(mm)
1 5 11.6 19.5 Flat, corrugated/sine wave, window 1.2~1.6
2 7 12.7 21 Corrugated/sine wave, window 1.2~3.0 Aluminum tube is available
3 7 12.7 19.05 Corrugated/sine wave, window 1.3~3.0
4 7.94 15.88 25.4 Flat,Corrugated/Sine wave,WindowFlat, corrugated/sine wave, window
5 7.94 19.05 22 Flat, corrugated/sine wave, window 1.4~3.0
6 7.94 21.65 25 Flat, corrugated/sine wave, window 1.4~3.0
7 9.52 12.7 25.4 Flat, corrugated/sine wave, window 1.6~2.5
8 9.52 16.5 19.05 Flat, corrugated/sine wave, window 1.6~3.2 Aluminum and stainless steel tube is available
9 9.52 15.88 25.4 Flat, corrugated/sine wave, window 1.6~3.2
10 9.52 21.65 25 Flat, corrugated/sine wave, window 1.6~6.0 Aluminum and stainless steel tube is available
11 9.52 22 25.4 Flat, corrugated/sine wave, window 1.6~6.0 Aluminum and stainless steel tube is available
12 9.52 25 25 Corrugated/sine wave 2.5-4.2
13 9.52 30 30 Sesamoid fin 4.0~6.0
14 12.0 35 35 Corrugated/sine wave 4.0~6.0
15 12.75 27.5 31.75 Flat, corrugated/sine wave, window 1.5~3.5 Aluminum and stainless steel tube is available
16 14.5 52 45 Corrugated/sine wave 4.0~7.0
17 15.2 75 25 Corrugated/sine wave 8.0~10
18 15.2 60 30 Corrugated/Sine wave 8.0~10
19 15 50 50 Corrugated/Sine wave 4.5~9
20 15.88 33 38.1 Flat, corrugated/sine wave, window 1.5~7.5 Aluminum and stainless steel tube is available

Application:

15.88mm Stainless Steel Tube Fin Heat Exchanger for Air conditioner
