Specifications
Brand Name :
Shenglin
Model Number :
SHSL-D3 Series
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
650~33000 USD per unit
Payment Terms :
T/T, Western Union
Supply Ability :
100 units per month
Delivery Time :
35~40days
Packaging Details :
Stretch film and Pallet
Tube material :
Copper tubes
Fin material :
Hydrophilic aluminum foil or epoxy resin aluminum foil
Frame material :
Galvanized steel plate or stainless steel
Power supply :
380V/3P/50Hz or 380V/3P/60Hz
Fan brand :
Ziehl-Abegg
Frame painting colour :
White or gray
Product category :
Dry Cooler
Cooling way :
Immersed Cooling
Structure :
Table type
Media :
Electrocool dielectric coolants
Description

Blockchain Bitcoin Mining Farm Adiabatic Cooling System Submerged Cooling System

Advantages and disadvantages of dry cooler immersion cooling system

Pros:

- High build quality by necessity

- Up to 98% reduction in cooling power

- Long life fluid (20 years)

- High cooling capacity (4kw per liter)

- Equipment is dry and clean when removed

- Fairly simple plumbing

- Excellent scaling

Cons:

- Not ideal at small scales

- Control costs are the same for 250kW and 10kW

- Controls are complex and expensive

- Cannot use HDDs

- Tanks must be stainless

- Fluids leak easily so quality control must be tightly adhered

Options

Coil design refrigerant: water, oil, glycol Multiple circuits
Sub-cooling circuits Stainless steel or aluminum casing
Coated aluminum or copper fins Explosion proof motor
Customized fin spacing

Technical parameter

Dry cooler D3 series parameter (fin space 2.1mm)

Type D3- 042-1X800 046-1X800 051-1X800 087-2X800 094-2X800 103-2X800 125-3X800 146-3X800 153-3X800 175-4X800 188-4X800
Capacity
(KW)		 Water 35℃ outdoor temp. Inlet 45℃ 42.1 46.1 50.6 87.3 93.6 102.9 124.9 145.9 153.3 174.5 187.9
outlet 40℃
20% Glycol Inlet 45℃ 40.8 45.1 49.7 84.5 91.8 100.9 119.4 143 150.4 168.9 184.3
outlet 40℃
Medium Water flow M3/h 7.3 8 8.8 15.2 16.3 17.9 21.7 25.4 26.6 30.3 32.7
Pressure drop kPa 49 69 97 48 98 93 21 97 89 48 98
Air flow M3/h 21454 20531 19696 42906 41061 39390 64364 61585 59087 85811 82120
Fan motor(400V/3N/50HZ) W 1800 1800 1800 3600 3600 3600 5400 5400 5400 7200 7200
A 3.8 3.8 3.8 7.6 7.6 7.6 11.4 11.4 11.4 15.2 15.2
Fan No X φ 1x1x800 1x1x800 1x1x800 1x2x800 1x2x800 1x2x800 1x3x800 1x3x800 1x3x800 2x2x800 2x2x800
Sound pressure level dB(A) 50 50 50 51 51 51 53 53 53 54 54
10m
Dimension L mm 2000 2000 2000 3800 3800 3800 5600 5600 5600 3800 3800
W mm 1084 1084 1084 1084 1084 1084 1084 1084 2108 2108 2108
H mm 1328 1328 1328 1328 1328 1328 1328 1328 1328 1328 1328
A mm 1728 1728 1728 3528 3528 3528 5328 5328 5328 3528 3528
B1 mm -- -- -- 1764 1764 1764 1776 1776 1776 1764 1764
B2 mm -- -- -- 1764 1764 1764 1776 1776 1776 1764 1764
B3 mm -- -- -- -- -- -- 1776 1776 1776 -- --
B4 mm -- -- -- -- -- -- -- -- -- -- --
X mm 997 997 997 997 997 997 997 997 997 2021 2021
Inlet φ mm 2” 2” 2” 2 1/2” 2 1/2” 2 1/2” 3’ 3’ 3’ 4” 4”
Inlet φ mm 2” 2” 2” 2 1/2” 2 1/2” 2 1/2” 3’ 3’ 3’ 4” 4”
Product weight(empty) kg 225 233 241 357 373 392 796 527 749 812 1062

Why Choose us

Professional system integration
Customized size
Thermodynamic calculations
Authoritative seismic design
Integrated wet curtain celdek7090		 Frame:
Galvanized sheet sprayed (rai 7035)
Hot dip galvanized sheet
Stainless steel plate
Galvanized sheet		 AC-EC fan:
Protection grade ip55
Low energy consumption
Inverter control
High temperature resistant fan
Explosion-proof fan		 Various diameter fans are available:
800, 1~14 psc
910, 1~18 psc
1250, 1~8 psc
1800, 1~7 psc
Pipe:
Copper
Copper nickel alloy
Stainless steel
Titanium		 Fin:
Epoxy coating
Aluminum
Copper:
Tinned copper foil
Blygold coating
Stainless steel
Titanium		 Overhaul and cleaning:
Easy to clean
Optional access door or hinged fan panel
Fin form for easy cleaning
Robust material with high mechanical strength
Easy to maintain		 Different connection options:
Flange connection
Threaded connection
Welding

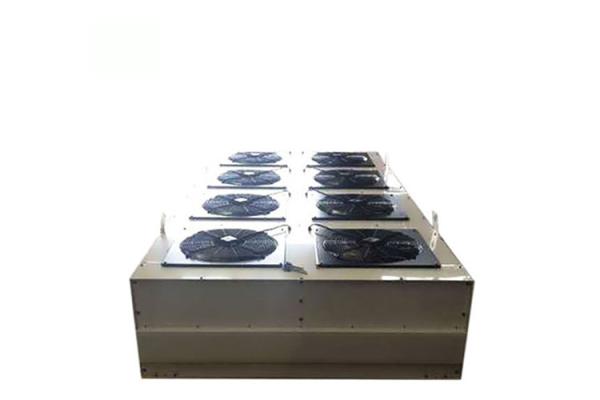

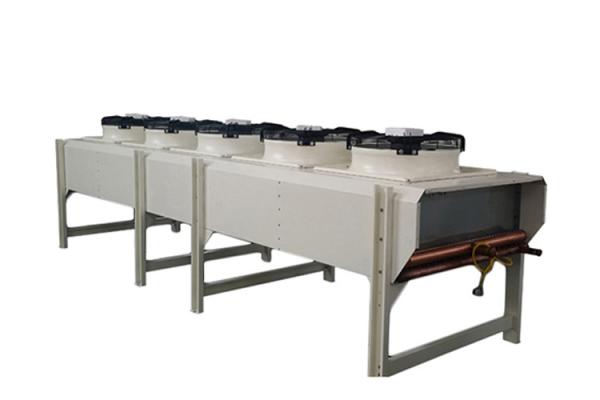

Some product photo

Table Type Blockchain Bitcoin Mining Adiabatic Submerged Cooling SystemTable Type Blockchain Bitcoin Mining Adiabatic Submerged Cooling SystemTable Type Blockchain Bitcoin Mining Adiabatic Submerged Cooling SystemTable Type Blockchain Bitcoin Mining Adiabatic Submerged Cooling System
