Cryptocurrency Mining Submerged Cooling System Air Cooler Dry Cooler
Cryptocurrency Mining Submerged Cooling System Air Cooler Dry Cooler
Specifications
Brand Name :
Shenglin
Model Number :
SHSL-D1 Series
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
865~45005 USD per unit
Payment Terms :
T/T, Western Union
Supply Ability :
100 units per month
Delivery Time :
35~40days
Packaging Details :
Stretch film and Pallet
Tube material :
Seamless copper tube
Fin material :
Usually hydrophilic aluminum foil
Frame material :
Galvanized steel plate or stainless steel
Power supply :
380V/3P/50Hz or 380V/3P/60Hz
Fan brand :
Usually Chinese brand
Frame painting colour :
White powder coating
Product category :
Air cooler
Cooling way :
Cryptocurrency mining Iimmersion cooling
Advantage :
Liquid cooling is a energy saving method
Media :
Electrocool dielectric oil
Option :
Spray system
Description

Cryptocurrency Mining Submersion Cooling System Air Cooler Dry Cooler

What's Immersion Cooling or Submersion Cooling?

Immersion cooling refers to the process of immersing servers, GPUs, ASICs, and other IT hardware in a non-conductive fluid. The fluid is a far more effective cooling medium than air is and so higher efficiencies are achievable. Two-phase immersion cooling is similar but the fluid boils on the hot components.

Benefits of Immersion Cooling:

Reduce Operating Costs by 50%+

Power reduction by removing the fans from the miners (~18% – 25%)

Removal of supplementary cooling systems (Intake / Exhaust fans, etc. account for another 20% – 25%)

Increase the hash rate of your current equipment

Increase hardware lifespan

Increase the density of miners in your facility

Built in fire protection as our dielectric fluid is non-flammable

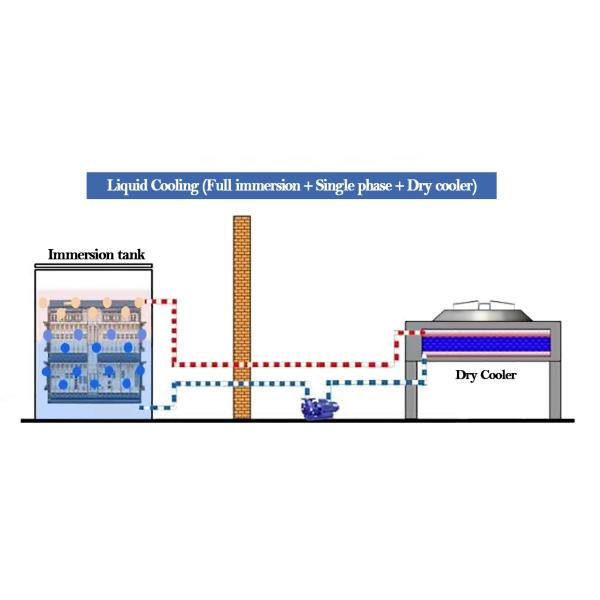

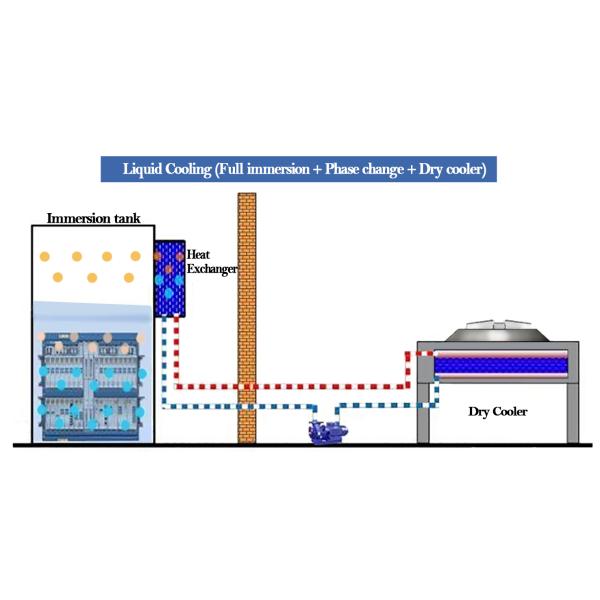

Working Diagram:

Cryptocurrency Mining Submerged Cooling System Air Cooler Dry Cooler

Cryptocurrency Mining Submerged Cooling System Air Cooler Dry Cooler

For Cryptocurrency mining farm, if use immersion cooling system, our dry cooler is the most cost-effective way to remove heat and a necessary component of the immersion cooling system, We designed a full range of immersion optimized dry coolers. From 5kW single fan unit to the V-shaped 48-921kW dry coolers. Made in China, sized to your needs.

Also, we have whole immersion cooling system clients, they can also offer the whole system proposal for you.

Features of dry cooler

High efficiency heat exchanger: capacity designs for maximizing the heat transfer relative to the energy consumption of the fan. Tube and tube coupling design for low pressure drop in the coil on the media sides(maximum 100KPa at water designing condition). Our thermodynamic and aerodynamic designing software is long year tested and proved in Germany
Fan: only choose low specific energy consumption fans. Fan nozzle designs for maximum air flow and air throw.Our fans from the world`s leading manufacturer are practically proved to be reliable in operation and long lasting. Motor: protection class IP 54 and insulation class F. Air separator for each fan.
We facilitate you to have a long lasting and low maintainance operation. Durable material and rigid enclosure with hard gloss powder coated finish. Protective enclosure for both manifolds and U-bends. Unit design for outdoor installation. 100% leakage tested at 31bar.

Options

Coil design refrigerant: water, oil, glycol. Multiple circuits.
Sub-cooling circuits. Stainless steel or aluminum casing.
Coated aluminum or copper fins. Explosion proof motor.
Customized fin spacing.

Technical parameter

Dry cooler D3 series parameter (fin space 2.1mm)

Type D3- 042-1X800 046-1X800 051-1X800 087-2X800 094-2X800 103-2X800 125-3X800 146-3X800 D53-3X800 175-4X800 188-4X800
Capacity
(KW)		 Water 35℃ outdoor temp. Inlet 45℃ 42.1 46.1 50.6 87.3 93.6 102.9 124.9 145.9 153.3 174.5 187.9
outlet 40℃
20% Glycol Inlet 45℃ 40.8 45.1 49.7 84.5 91.8 100.9 119.4 143 150.4 168.9 184.3
outlet 40℃
Medium Water flow M3/h 7.3 8 8.8 15.2 16.3 17.9 21.7 25.4 26.6 30.3 32.7
Pressure drop kPa 49 69 97 48 98 93 21 97 89 48 98
Air flow M3/h 21454 20531 19696 42906 41061 39390 64364 61585 59087 85811 82120
Fan motor(400V/3N/50HZ) W 1800 1800 1800 3600 3600 3600 5400 5400 5400 7200 7200
A 3.8 3.8 3.8 7.6 7.6 7.6 11.4 11.4 11.4 15.2 15.2
Fan No X φ

1x1

x800

1x1

x800

1x1

x800

1x2

x800

1x2

x800

1x2

x800

1x3

x800

1x3

x800

1x3

x800

2x2

x800

2x2

x800
Sound pressure level dB(A) 50 50 50 51 51 51 53 53 53 54 54
10m
Dimension L mm 2000 2000 2000 3800 3800 3800 5600 5600 5600 3800 3800
W mm 1084 1084 1084 1084 1084 1084 1084 1084 2108 2108 2108
H mm 1328 1328 1328 1328 1328 1328 1328 1328 1328 1328 1328
A mm 1728 1728 1728 3528 3528 3528 5328 5328 5328 3528 3528
B1 mm -- -- -- 1764 1764 1764 1776 1776 1776 1764 1764
B2 mm -- -- -- 1764 1764 1764 1776 1776 1776 1764 1764
B3 mm -- -- -- -- -- -- 1776 1776 1776 -- --
B4 mm -- -- -- -- -- -- -- -- -- -- --
X mm 997 997 997 997 997 997 997 997 997 2021 2021
Inlet φ mm 2” 2” 2” 2 1/2” 2 1/2” 2 1/2” 3’ 3’ 3’ 4” 4”
Inlet φ mm 2” 2” 2” 2 1/2” 2 1/2” 2 1/2” 3’ 3’ 3’ 4” 4”
Product weight(empty) kg 225 233 241 357 373 392 796 527 749 812 1062

Why choose us:

1) We can help buyers design specific products or produce products according to buyers' design

2) We can print logo according to buyers' requirement

3) We has exported to many countries,such as Singapore, Philippines, Vietnam, Argentina, Peru, Mongolia, Hong Kong, UAE,Russia, Poland etc.

4) Design term:We have professional design team.

5) Professional factory: We are manufacturer, specializing in manufacturing heat exchangers for over 16years, competitive price with good quality.
6) Rapid response to your needs: We will reply within 24 hours after receiving you letter. If you have urgent thing, welcome to call us.

7) The Most Efficient Service, Best Quality and Excellent Reputation.

Packing and loading photo example:

Cryptocurrency Mining Submerged Cooling System Air Cooler Dry Cooler Cryptocurrency Mining Submerged Cooling System Air Cooler Dry Cooler
Cryptocurrency Mining Submerged Cooling System Air Cooler Dry Cooler Cryptocurrency Mining Submerged Cooling System Air Cooler Dry Cooler

Some immersion cooling system dry cooler reference:

Cryptocurrency Mining Submerged Cooling System Air Cooler Dry Cooler Cryptocurrency Mining Submerged Cooling System Air Cooler Dry Cooler

Country: USA

Application: Bitcoin immersion cooling system

Cooling capacity: 1270kW

Cooling medium: BC-888

Supply power: 415V/3P/60Hz

Fan brand: Ziehl-Abegg

Country: USA

Application: Bitcoin immersion cooling system

Cooling capacity: 171kW

Cooling medium: bitcoin fluid

Supply power: 415V/3P/60Hz

Fan brand: Chinese brand
