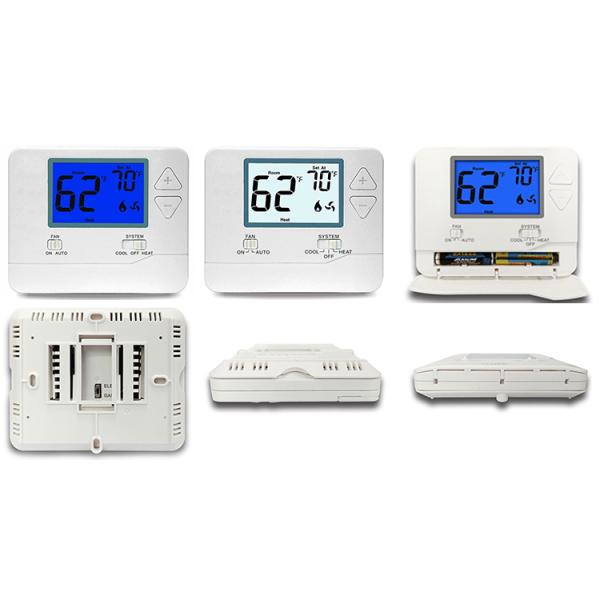

24 VAC Power Supply HVAC Thermostat For Air Conditioning System
24 VAC Power Supply HVAC Thermostat For Air Conditioning System
24 VAC Power Supply HVAC Thermostat For Air Conditioning System
24 VAC Power Supply HVAC Thermostat For Air Conditioning System
24 VAC Power Supply HVAC Thermostat For Air Conditioning System
24 VAC Power Supply HVAC Thermostat For Air Conditioning System
Specifications
Brand Name :
OEM
Model Number :
STN701
Certification :
CE/UL
Place of Origin :
Guangdong
MOQ :
100 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, /Paypal
Supply Ability :
100000 pieces/month
Delivery Time :
1-45 days
Packaging Details :
Standard box
Name :
Thermostat
Programmability :
Non-Programmable
Voltage :
24V or battery
Usage :
Household & Industry,Indoor,HAVC System
Shape :
Square
Size :
12x 9.8 x 2.8 CM
Commodity weight: :
227 g
Display :
4.5 SQ inch
Material :
Plastic
Certificate :
CE/UL
Description

24 VAC Power Supply HVAC Thermostat For Air Conditioning System

ISO certifications .pdf

S701 Instruction.pdf

Product Description :

This thermostat is compatible with single-stage heating/cooling systems for heating and cooling. Can't flush

heat with electric skirting board (120 – 240 V) Heat pump system backup or multi-stage heating/cooling.

Warranty information with suit this non-programmable thermostat for one years warranty.

Terminal Designations:

RH------- ----24VAC (system power supply) HEAT=RH TO W

RC------------COOL= RC to Y FAN=RC TO G

C--------------Common24VAC (system power supply)

W------------- HEAT

Y-------------- COOL

G---------------FAN

B---------------REV VALVE HEAT

O---------------REV VALVE COOL

Specifications:

Model :STN701
Single stage--1 heat, 1 cool
Non-programmable
4.5 sq. inch display
2*AAA 1.5V Alkaline batteries power
Display temperature range ......................32℉ to 99℉ (1℃ to 40℃)
Setpoint Range.........................................44℉ to 90℉ (7℃ to 32℃)
Load rating.............................................. 1.0Amp per terminal, 1.5Amp maximum all terminals combined
Display accuracy......................................±1℉(under 68℉)
Power source.......................................... 24 VAC(18 to 30 VAC), 50/60 Hz for hardwire (common wire)
Low battery indicator................................Under 2.7 V (without 24V power supply)
Backlight...................................................Blue, light on for 15 seconds
Dimensions of thermostat........................120 x 98 x 28 MM

Technical Parameters:

Easy to use battery
Electric or gas configurable
Independent B & O terminal block
Independent heating and cooling swing cycle rate adjustment
Indoor temperature correction adjustment
5 minutes compressor delay Protection selectable to turn on or off
Convenient wire color terminal block Buildings

Terminal Designations:RH, RC,C,W,Y, G, B, O

Universal sub-base
Can be mounted to wall or junction box
Battery Or 24 VAC power supply

Package Including:

STN701 thermostat - 1pcs

Color box - 1pcs

Screws and anchor - 2pcs

User manual - 1pcs
