Iron Custom Three Lobe Roots Blower 10-80kpa Discharge Differential Pressure

About BC Three Lobes Roots Blower
BC series roots blower, with the intergral structure of impeller and shaft, has a waide application in environmental protection, electric power, architecture, gas supply and etc.

Main Chrarcteristics:
1) Working smoothly as helical timing gears is adopted.
2) It is flexible mounting ways because of the same structure in inlet and outlet.
3) It adopts more reasonable bearing structure, which can incresase the bearing operation life.
4) It is low noise, vibration and energy consumption.

Specifications:

Model BC6015
Air capacity 14.23-37.95m3/Min
Discharge differential pressure 10-80KPA
Rotary speed 850rpm-1800rpm
Motor type 5.5KW-45KW
380/400/415/440V, 3PHASES, 50/60HZ
Motor brand Standard: Siemens Beide or Wannan motor
Siemens and ABB motor for your option
Installation type Standard: horizontal type.
Vertical type available for your option
N.W. of blower without motor 415kg
Packing size Approx. 1.80*1.20*2.00m (length*width*height)
Features 1. Helical type timing gears for smooth operation
2. Compact, flexibility in installation gives users more choices.
3. Integral structure of impeller and shaft avoiding shortcomings of the split structure blower
4. Adopt imported oil seals made from fluoric rubber with better wear resistance and high-temperature resistance.
5. Low noise, low vibration and energy consumption.


Parameter

Port Dia Speed Inlet airflow(m3/min)and shaft power(KW)at different conditions
10kpa 20kpa 30kpa 40kpa 50kpa
rpm m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW
150(6'') 850 16.66 4.61 15.65 8.08 14.89 11.00 14.23 13.94
1000 20.02 5.43 19.01 9.50 18.25 12.94 17.60 16.40 17.04 20.39
1150 23.38 6.24 22.37 10.93 21.61 14.88 20.96 18.86 20.40 23.45
1250 25.62 6.78 24.61 11.88 23.85 16.18 23.20 20.50 22.64 25.49
1400 28.99 7.60 27.98 13.30 27.21 18.12 26.56 22.96 26.00 28.55
1500 31.23 8.14 30.22 14.25 29.46 19.41 28.81 24.60 28.25 30.59
1650 34.59 8.96 33.58 15.68 32.82 21.35 32.17 27.05 31.61 33.65
1800 37.95 9.77 36.94 17.01 36.18 23.29 35.53 29.51 34.97 36.71

Features:

1. Helical type timing gears for smooth operation
2. Compact, flexibility in installation gives users more choices.
3. Integral structure of impeller superior to split structure, more stable in power transmission
4. Adopt imported oil seals made from fluoro rubber, which is of great wear resistance and high-temperature resistance.
5. Small vibration and economical energy consumption.

Working Principle

Roots blower is a cubage blower, and it discharges a fixed amount of air in proportion to its rotation speed. Every rotation, there is two lobes to finish three times absorbing and dischargeing air. Compared with two lobes blower, it is of less air pulses, smaller load change, higher strength, lower noise and vibration.

Two paraller shafts have three lobes each, all the lobes keep small clearance with each other and housing inside. Every lobes rotatiomn, a certain air will be absorbed at inlet and transfeered form the housing inside surface to blower's diacharge port.

Two shafts will be turned by the timing gears, no any touching between lobes, so it can be turned at high speed without any lubrication inside. It has the following chaaracteristics: simply configuration; running smoothly;good performance stabilization. It has been widely applied in various industries.

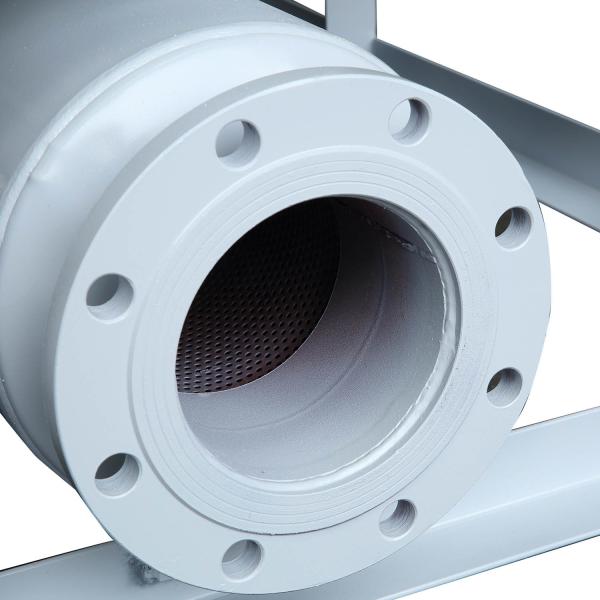

Iron Custom Three Lobe Roots Blower 10-80kpa Discharge Differential Pressure

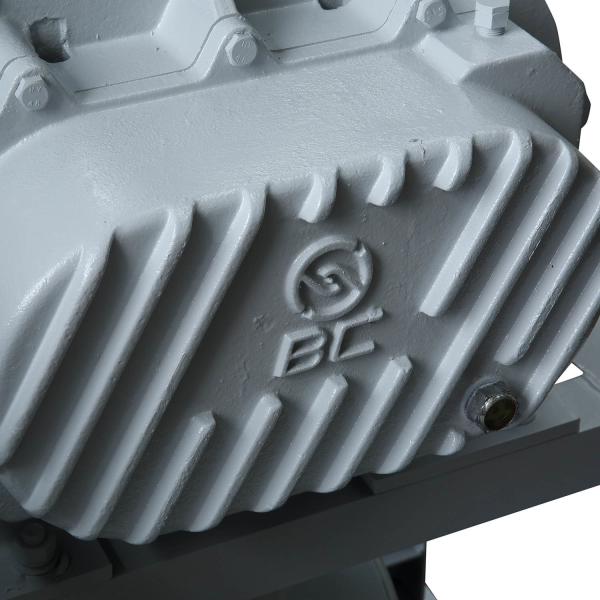

Iron Custom Three Lobe Roots Blower 10-80kpa Discharge Differential Pressure

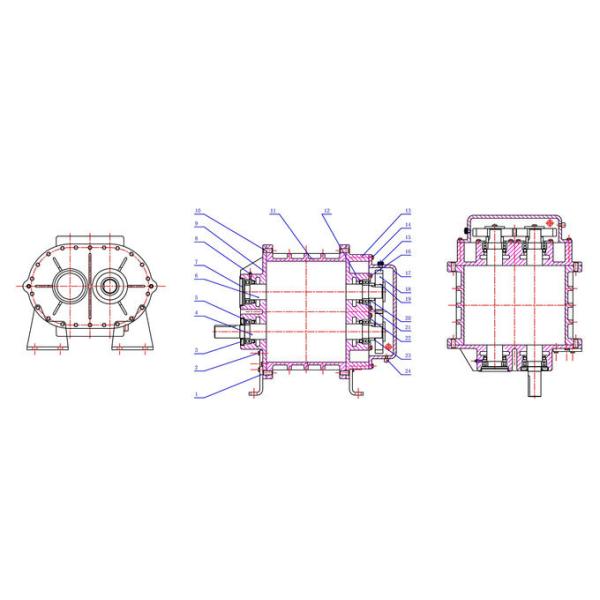

Structure of blower main body

Iron Custom Three Lobe Roots Blower 10-80kpa Discharge Differential Pressure

No. Part Name Qty. No. Part Name Qty. No. Part Name Qty.
1 Footing 2 9 Left end cover 1 17 Oil tank 1
2 Hexagon bolt 4 10 Round pin 4 18 Gear 2
3 Antidust seal 1 11 Casing 1 19 Key 2
4 Drive impeller 1 12 Oil seal 4 20 Axial sleeve 2
5 Bearing 2 13 Right end cover 1 21 Bearing 2
6 Driven impeller 2 14 Bolt 16 22 Bearing plate 2
7 Dust cup 1 15 Breather 1 23 Adjustable pad several
8 Grease nipple 2 16 Bolt 8 24 Magnetic nut 1

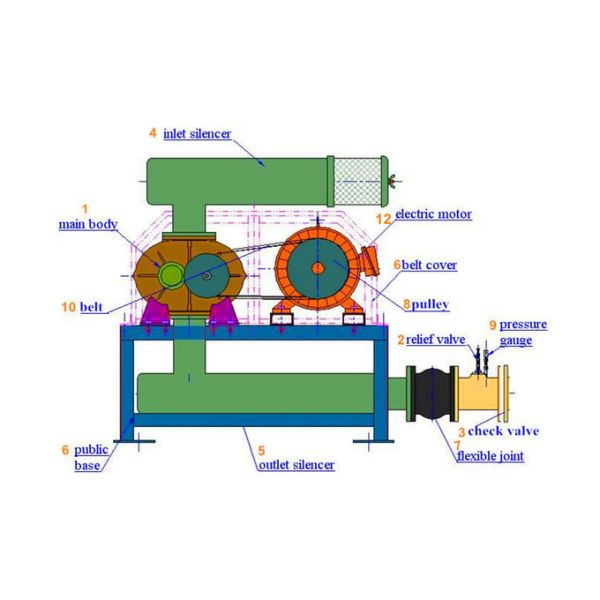

Assembling drawing of blower package

Iron Custom Three Lobe Roots Blower 10-80kpa Discharge Differential Pressure

Standard supply of scope
1. bare shaft blower
2. pressure relieve valve
3. wafer check valve (slim type)
4. inlet silencer(with air filter)
5. outlet silencer
6. public base (with belt cover)
7. rubber flexible joint and shock pad
8. motor pulley
9. pressure meter
10. V-belt
11. bolts and nuts and other connection parts
12. electric motor​
