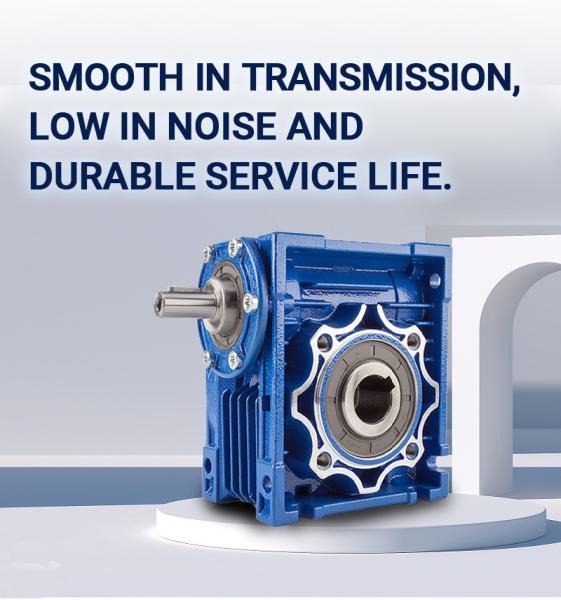

5:1-100:1 RV63 Worm Gear Speed Reducer 24mm Square Flange NMRV063 90 Degree
5:1-100:1 RV63 Worm Gear Speed Reducer 24mm Square Flange NMRV063 90 Degree
Specifications
Brand Name :
FANBAO
Model Number :
NMRV Worm Gear Speed Reducer
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
150sets per month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
Gearing Arrangement :
Worm
Output Torque :
2.6-1195N.M
Rated Power :
0.06-15KW
output Speed :
14-280rpm
Voltage :
220V-380v
Weight (KG) :
6kg
Speed ratio :
5 7.5 10 15:1 20 25 30 40 50 60 80 100:1 for customers
Description

5: 1-100:1 RV63 Worm Gear Reducer Input Hole 24mm Square Flange NMRV063 90 Degree

Description

The worm gear reducer is suitable for motors which can completely match the installation size.
Small size worm gear reducer, very convenient for the machine which has limited space.
This worm gear reducer is mainly used to reduce the speed of motors and is widely used on machines.
A worm gear reducer is a power transmission mechanism that uses the speed converter of the gears to decelerate the number of revolutions of a motor (motor) to the desired number of revolutions and to obtain a larger torque.
Due to the difference of monitors, and different conditions when taking the picture, the color may be slightly different.

Technical Parameters:

Material for worm reducer:

housing: aluminum alloy die cast

Worm gear: Nodular cast iron and bronze

Feature of worm reducer gearbox:

1) High quality aluminum alloy die cast gearbox

2) High accuracy worm gear and worm shaft

3) Less noise and lower temperature increase

4) Easy mounting anc connection, high efficiency

Specification:


Model:
NMRV025,030,040,050,063,075,090,110,130,150
Ratio: 1:5,7.5,10,15,20,25,30,40,50,60,80,100
Color: Blue,Silver Or On Customer Request
Noise: low noise(<50DB)
Advantage

Eficient and safe operating
Material:
Housing Die-Cast Aluminum Alloy

Worm Gear-Bronze 9-4#
Worm-20CrMnTi with carburizing and quenching,surface harness is 56-
62HRC
Shaf-chromium steel-45#
Packing Carton and Wooden Case
Bearing C&U Bearing
Seal: NAK SKF
Certificate: IS09001,CE,3C,OEM
Warranty 12 months
Input Power. 0.06kw,0.09kw,0.12kw,0.18kw,0.25kw,0.37kw,0.55kw,0.75kw,1.1kw,
1.5kw,2.2kw,3kw,4kw,5.5kw,7.5kw,11kw,15kw
IEC Flange:
56B5,56B14,63B5,63B14,71B5,71B14,80B5,80B14,90B5,90B14,
100B5,100B14,112B5,112B14,132B5,160B5
Lubricant Synthetic &Mineral
