SF37 SA37 SAF37 SAT37 Helical Bevel Speed Reducer Inline Motor Gearbox
SF37 SA37 SAF37 SAT37 Helical Bevel Speed Reducer Inline Motor Gearbox
SF37 SA37 SAF37 SAT37 Helical Bevel Speed Reducer Inline Motor Gearbox
SF37 SA37 SAF37 SAT37 Helical Bevel Speed Reducer Inline Motor Gearbox
Specifications
Brand Name :
FANBAO
Model Number :
S/sa/saf/saz/sf37
Certification :
CE. ISO9001
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Output Torque :
10-4890(N.M)
Input Speed :
1450rpm
Output Speed :
0.12-397(rpm)
Warranty :
1 year
Color :
customer Requirement
Efficiency :
94%~98%(depends on the transmission stage)
Mounting Position :
Foot,flange,torque,arm,hollow/s
Gearing Arrangement :
Worm
Description

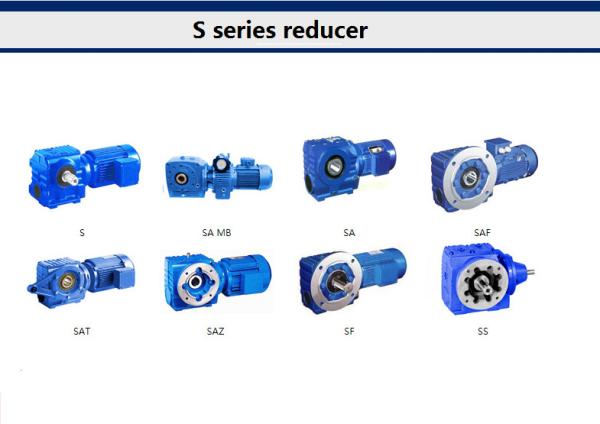

S37 SF37 SA37 SAF37 SAT37 90 Degree Helical Worm Gear Speed Reducer Motor S series gear reducer

Description :

There is a combination of helical gear and worm gear to improve the torque and efficiency of the machine. This S series of gearbox reducer has complete specifications, wide speed range, good versatility, adapt to various installation methods, performance, safety and reliability, long service life, and implementation of international standards.

The surface of the body has concave and convex heat dissipation, strong vibration absorption, low temperature rise and low noise.

The helical worm motor reducer has good sealing performance and strong adaptability to the working environment.

The S series reducer has high transmission precision, especially suitable for working in places with frequent starting. It can be connected with various types of reducers and equipped with various types of motor drives. It can be installed in the 90-degree transmission operation position.

The key components of the geared motor adopt high wear-resistant materials and have special heat treatment. It has the characteristics of high processing precision, stable transmission, small volume bearing capacity and long service life.

The reducer can be equipped with various types of motors to form an electromechanical integration, which fully guarantees the quality characteristics of the products.

Main Features:

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Specification :

Gear material 20CrMnTi alloy steel

Surface hardness of gears
HRC58°~62°
Gear core hardness HRC33~40

Input/Output shaft material
42CrMo alloy steel
Input /Output shaft hardness
HRC25~30

Machining precision of gears		 Accurate grinding,6~5 Grade

Lubricating oil		 GB L-CKC220-460,Shell Omala220-460
Heat treatment
Tempering,cementiting,quenching,etc.

Eficiency		 94%~96%(depends on the trans mis sion stage)
Noise (MAX) 60~68dB

Temp.rise(MAX)		 40℃

Temp.rise (Oil)(MAX)		 50°℃

Vibration
s20μm
Backlash
s20Arcmin

Brand of bearings
China top brand bearing,or other brands requested
SIZE Shaft Dia. (mm) Center
Height		 Output Flange
Dia. (mm)		 Power
(kw)		 Ratio Permissible
Torque(N.m)		 Weight
(kgs)

Solid Hallow
37 φ20k6 φ20h7 82 φ120/160 0.18-0.75 10.27-165.71 90 7
47 φ25k6 φ25h7 100 φ160 0.18-1.50 11.46-244.74 170 10
57 φ30k6 φ30h7/35h7 180 φ200 0.18-3.0 10.78-196.21 300 14
67 φ35k6 φ40h7/45h7 140 φ200 0.25-5.50 11.55-227.20 520 26
77 φ45k6 φ50h7/60h7 180 φ250 0.55-7.50 9.96-241.09 1270 50
87 φ60m6 φ60h7/70h7 225 φ350 0.75-15.0 11.83-223.26 2280 100
97 φ70m6 φ70h7/90h7 280 φ450 1.50-22.0 12.5-230.48 4000 170
SF37 SA37 SAF37 SAT37 Helical Bevel Speed Reducer Inline Motor GearboxSF37 SA37 SAF37 SAT37 Helical Bevel Speed Reducer Inline Motor Gearbox
SF37 SA37 SAF37 SAT37 Helical Bevel Speed Reducer Inline Motor Gearbox
SF37 SA37 SAF37 SAT37 Helical Bevel Speed Reducer Inline Motor Gearbox
