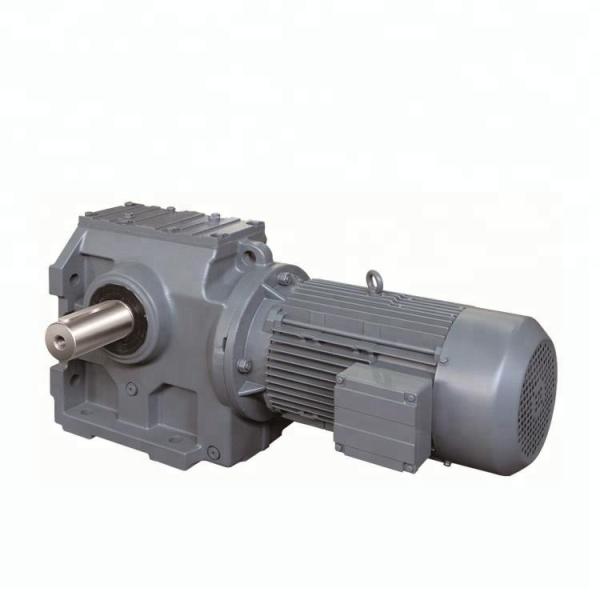

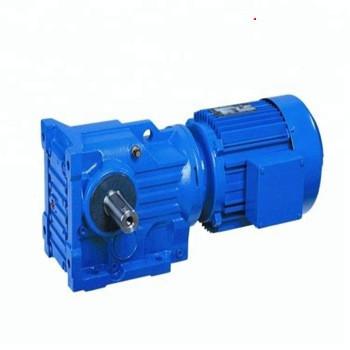

S series Helical-Worm Gear Reducer Hollow Shaft Output Heavy Load Low Noise Worm Gearbox S37 S67 S97 OEM ODM

Description :

1,Highly Standard Modular Designed: The S series helical worm gear reducers are connected with and driven by different types of motors or other kinds of input power .The same type geared motor can be adapted to optioned powers of motors. It is therefore easy to realize different solutions for varied requirements.
2,Ratio:Featured many closely divided ratios and wide ranges of them. Very big final ratios can be obtained through combined unites to reach extremely low output speeds.
3,Mounting Arrangement: No strict limitation to the mounting arrangement.
4,High Strength,Compact Dimension: Housings are made of high strength cast iron. Gears and shaft gears are finished with a gas carburizing process and precise grounding to sequentially get a high loading capacity of per certain volume.
5,Long Service Life: Under the conditions of accurately selecting type size and the normal maintenance and use, main components(except those easily-disabled parts ) can last as long as up to more than 25,000 hours. Easily-disabled parts include lubricating oil, oil seals, and bearings.
6,Low Noise: All key components are finished by precise machining, accurate assembly, and finally tested, and therefore, fairly low noise is reached.
7,Highly Efficiency: The efficiency of the gear unit is more than 95%, The efficiency of worm gear unit can reach 89%.
8,Large Radial Loading Ability

Specification :

Gear material 20CrMnTi alloy steel

Surface hardness of gears
HRC58°~62°
Gear core hardness HRC33~40

Input/Output shaft material
42CrMo alloy steel
Input /Output shaft hardness
HRC25~30

Machining precision of gears		 Accurate grinding,6~5 Grade

Lubricating oil		 GB L-CKC220-460,Shell Omala220-460
Heat treatment
Tempering,cementiting,quenching,etc.

Eficiency		 94%~96%(depends on the trans mis sion stage)
Noise (MAX) 60~68dB

Temp.rise(MAX)		 40℃

Temp.rise (Oil)(MAX)		 50°℃

Vibration
s20μm
Backlash
s20Arcmin

Brand of bearings
China top brand bearing,or other brands requested
SIZE Shaft Dia. (mm) Center
Height		 Output Flange
Dia. (mm)		 Power
(kw)		 Ratio Permissible
Torque(N.m)		 Weight
(kgs)

Solid Hallow
37 φ20k6 φ20h7 82 φ120/160 0.18-0.75 10.27-165.71 90 7
47 φ25k6 φ25h7 100 φ160 0.18-1.50 11.46-244.74 170 10
57 φ30k6 φ30h7/35h7 180 φ200 0.18-3.0 10.78-196.21 300 14
67 φ35k6 φ40h7/45h7 140 φ200 0.25-5.50 11.55-227.20 520 26
77 φ45k6 φ50h7/60h7 180 φ250 0.55-7.50 9.96-241.09 1270 50
87 φ60m6 φ60h7/70h7 225 φ350 0.75-15.0 11.83-223.26 2280 100
97 φ70m6 φ70h7/90h7 280 φ450 1.50-22.0 12.5-230.48 4000 170
