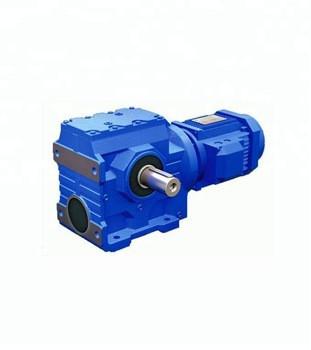

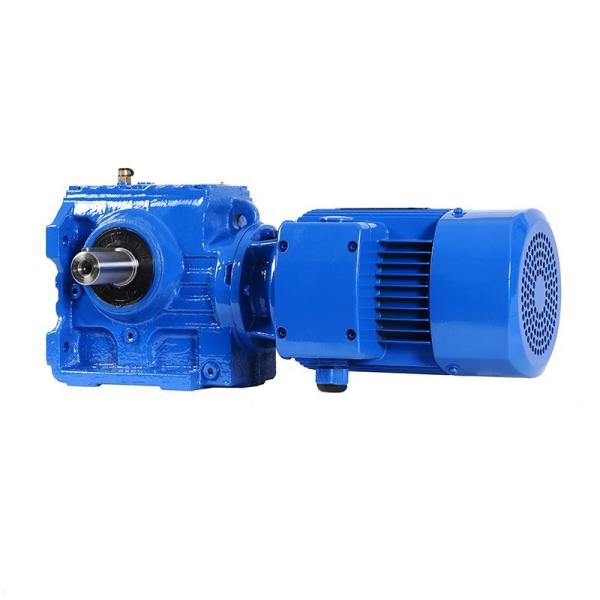

S57 S47 Vertical Helical Gear Reducer Parallel Shaft Gearbox 0.12-22KW
S57 S47 Vertical Helical Gear Reducer Parallel Shaft Gearbox 0.12-22KW
S57 S47 Vertical Helical Gear Reducer Parallel Shaft Gearbox 0.12-22KW
S57 S47 Vertical Helical Gear Reducer Parallel Shaft Gearbox 0.12-22KW
S57 S47 Vertical Helical Gear Reducer Parallel Shaft Gearbox 0.12-22KW
S57 S47 Vertical Helical Gear Reducer Parallel Shaft Gearbox 0.12-22KW
S57 S47 Vertical Helical Gear Reducer Parallel Shaft Gearbox 0.12-22KW
S57 S47 Vertical Helical Gear Reducer Parallel Shaft Gearbox 0.12-22KW
Specifications
Brand Name :
FANBAO
Model Number :
S/sa/saf/saz/sf37
Certification :
CE. ISO9001
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Output Torque :
10-4890(N.M)
Input Speed :
1450rpm
Output Speed :
0.12-397(rpm)
Warranty :
1 year
Color :
customer Requirement
Efficiency :
94%~98%(depends on the transmission stage)
Mounting Position :
Foot,flange,torque,arm,hollow/s
Gearing Arrangement :
Worm
Lubricating oil :
GB L-CKC220-460,Shell Omala220-460
Description

S57 S47 Vertical 0.12-22KW helical gearbox K series gear Reducer

Description :

The S-series worm-helical gearbox reducer is a highly efficient mechanical transmission device. This reducer combines the design of worm and helical gear, which makes it have excellent torque transmission and high efficiency. The S-series reducer has a simple and sophisticated design, which can achieve cost-effectiveness and provide excellent performance.

The S-series worm-helical gearbox reducer can be individually adjusted for torque and speed according to needs, thus realizing space-saving installation. These reducers are available with two-stage, three-stage, four-stage and five-stage reduction ratios, and can be installed in foot, flange or shaft according to needs. In addition, reducer models with motor, ready-to-install motor or with keyway input shaft can be selected to meet different application scenarios and needs.

The S-series worm-helical gearbox reducer is widely used in various industrial fields through its reliability, high efficiency and flexibility, and is an ideal choice for power transmission and speed regulation.

Specification :

Gear material 20CrMnTi alloy steel

Surface hardness of gears
HRC58°~62°
Gear core hardness HRC33~40

Input/Output shaft material
42CrMo alloy steel
Input /Output shaft hardness
HRC25~30

Machining precision of gears		 Accurate grinding,6~5 Grade

Lubricating oil		 GB L-CKC220-460,Shell Omala220-460
Heat treatment
Tempering,cementiting,quenching,etc.

Eficiency		 94%~96%(depends on the trans mis sion stage)
Noise (MAX) 60~68dB

Temp.rise(MAX)		 40℃

Temp.rise (Oil)(MAX)		 50°℃

Vibration
s20μm
Backlash
s20Arcmin

Brand of bearings
China top brand bearing,or other brands requested
SIZE Shaft Dia. (mm) Center
Height		 Output Flange
Dia. (mm)		 Power
(kw)		 Ratio Permissible
Torque(N.m)		 Weight
(kgs)

Solid Hallow
37 φ20k6 φ20h7 82 φ120/160 0.18-0.75 10.27-165.71 90 7
47 φ25k6 φ25h7 100 φ160 0.18-1.50 11.46-244.74 170 10
57 φ30k6 φ30h7/35h7 180 φ200 0.18-3.0 10.78-196.21 300 14
67 φ35k6 φ40h7/45h7 140 φ200 0.25-5.50 11.55-227.20 520 26
77 φ45k6 φ50h7/60h7 180 φ250 0.55-7.50 9.96-241.09 1270 50
87 φ60m6 φ60h7/70h7 225 φ350 0.75-15.0 11.83-223.26 2280 100
97 φ70m6 φ70h7/90h7 280 φ450 1.50-22.0 12.5-230.48 4000 170
S57 S47 Vertical Helical Gear Reducer Parallel Shaft Gearbox 0.12-22KWS57 S47 Vertical Helical Gear Reducer Parallel Shaft Gearbox 0.12-22KW
S57 S47 Vertical Helical Gear Reducer Parallel Shaft Gearbox 0.12-22KW
S57 S47 Vertical Helical Gear Reducer Parallel Shaft Gearbox 0.12-22KW

Why choose us :

S57 S47 Vertical Helical Gear Reducer Parallel Shaft Gearbox 0.12-22KWS57 S47 Vertical Helical Gear Reducer Parallel Shaft Gearbox 0.12-22KWS57 S47 Vertical Helical Gear Reducer Parallel Shaft Gearbox 0.12-22KW

Reducer process :
S57 S47 Vertical Helical Gear Reducer Parallel Shaft Gearbox 0.12-22KW
Packing and shipping way :
S57 S47 Vertical Helical Gear Reducer Parallel Shaft Gearbox 0.12-22KW
