Specifications
Brand Name :
FANBAO
Model Number :
S/sa/saf/saz/sf37
Certification :
CE. ISO9001
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Output Torque :
10-4890(N.M)
Input Speed :
1450rpm
Output Speed :
0.12-397(rpm)
Warranty :
1 year
Color :
customer Requirement
Efficiency :
94%~98%(depends on the transmission stage)
Mounting Position :
Foot,flange,torque,arm,hollow/s
Gearing Arrangement :
Worm
Description

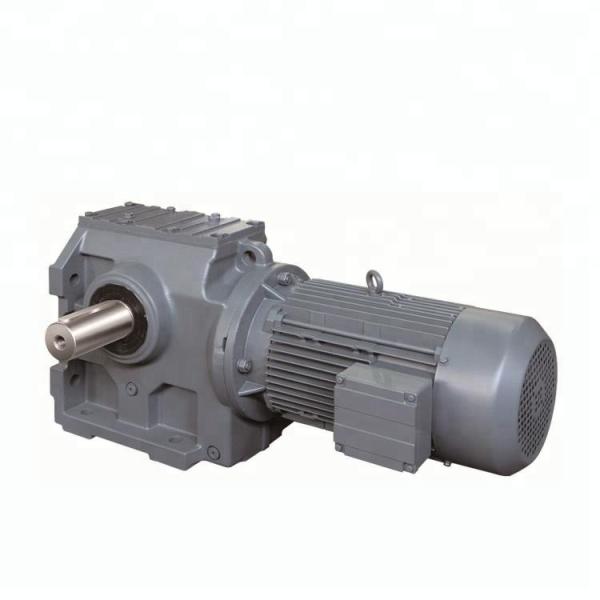

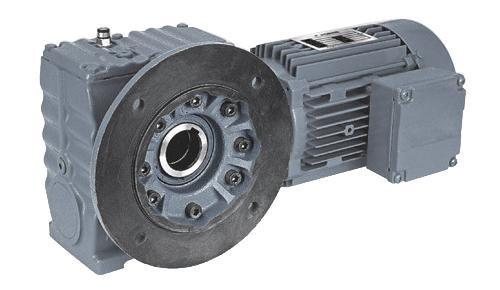

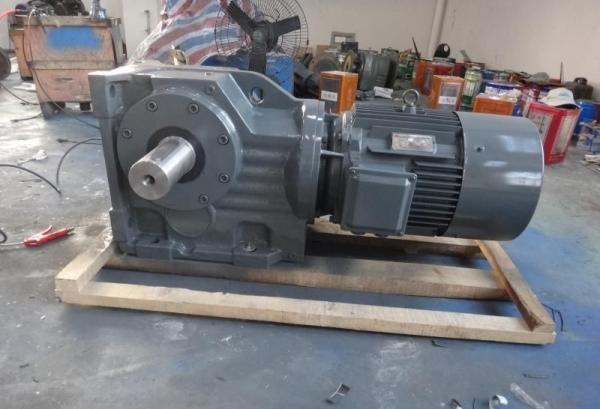

S Series Right Angle Helical Bevel Gearbox Reducer with High Output Torque

Description :

S97 / SA97 / SF97 / SAF97 / SAZ97 helical gear worm gear reducer (without motor) series worm gear reducer has conventional characteristics, adopting the form of helical gear worm gear makes the structure more reasonable not only makes the transmission efficiency and The load capacity is higher than that of single-stage worm gear transmission, and it also reduces the space occupation in the structural layout, and at the same time, a larger transmission ratio can be obtained under similar volume conditions.It is more conducive to device configuration.The machine can be used in combination with various speed reduction and gearboxes to meet different usage requirements.

Feature
1. Compact structure, modular design
2. High efficiency of the gear units of over 90%
3. Long service life
4. Multi-stage(2 or 3 stages) gear units for low output speed
5. Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm
6. Can be combined with other types of gearboxes (Such as R Series, UDL Series)

Main Application Industries

1.Food light industry, electrical machinery, engineering machinery, metallurgical machinery;

2.Cement machinery, environmental protection machinery, electronic appliances, road construction machinery;

3.Water conservancy machinery, chemical machinery, mining machinery, transportation machinery;

4.Building materials machinery, rubber machinery, petroleum machinery and other industries.

Specification :

Gear material 20CrMnTi alloy steel

Surface hardness of gears
HRC58°~62°
Gear core hardness HRC33~40

Input/Output shaft material
42CrMo alloy steel
Input /Output shaft hardness
HRC25~30

Machining precision of gears		 Accurate grinding,6~5 Grade

Lubricating oil		 GB L-CKC220-460,Shell Omala220-460
Heat treatment
Tempering,cementiting,quenching,etc.

Eficiency		 94%~96%(depends on the trans mis sion stage)
Noise (MAX) 60~68dB

Temp.rise(MAX)		 40℃

Temp.rise (Oil)(MAX)		 50°℃

Vibration
s20μm
Backlash
s20Arcmin

Brand of bearings
China top brand bearing,or other brands requested
SIZE Shaft Dia. (mm) Center
Height		 Output Flange
Dia. (mm)		 Power
(kw)		 Ratio Permissible
Torque(N.m)		 Weight
(kgs)

Solid Hallow
37 φ20k6 φ20h7 82 φ120/160 0.18-0.75 10.27-165.71 90 7
47 φ25k6 φ25h7 100 φ160 0.18-1.50 11.46-244.74 170 10
57 φ30k6 φ30h7/35h7 180 φ200 0.18-3.0 10.78-196.21 300 14
67 φ35k6 φ40h7/45h7 140 φ200 0.25-5.50 11.55-227.20 520 26
77 φ45k6 φ50h7/60h7 180 φ250 0.55-7.50 9.96-241.09 1270 50
87 φ60m6 φ60h7/70h7 225 φ350 0.75-15.0 11.83-223.26 2280 100
97 φ70m6 φ70h7/90h7 280 φ450 1.50-22.0 12.5-230.48 4000 170
