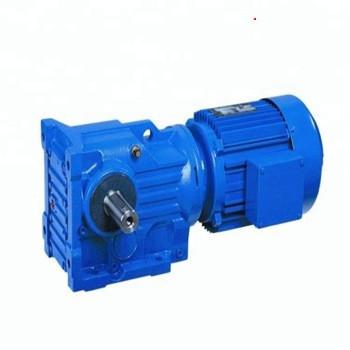

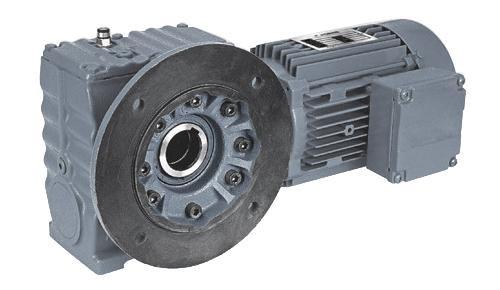

HRC33 Linear Worm Reduction Helical Gear Assembly For Conveyor Belt
HRC33 Linear Worm Reduction Helical Gear Assembly For Conveyor Belt
HRC33 Linear Worm Reduction Helical Gear Assembly For Conveyor Belt
HRC33 Linear Worm Reduction Helical Gear Assembly For Conveyor Belt
HRC33 Linear Worm Reduction Helical Gear Assembly For Conveyor Belt
HRC33 Linear Worm Reduction Helical Gear Assembly For Conveyor Belt
HRC33 Linear Worm Reduction Helical Gear Assembly For Conveyor Belt
HRC33 Linear Worm Reduction Helical Gear Assembly For Conveyor Belt
Specifications
Brand Name :
FANBAO
Model Number :
S/sa/saf/saz/sf37
Certification :
CE. ISO9001
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Output Torque :
10-4890(N.M)
Input Speed :
1450rpm
Output Speed :
0.12-397(rpm)
Warranty :
1 year
Color :
customer Requirement
Efficiency :
94%~98%(depends on the transmission stage)
Mounting Position :
Foot,flange,torque,arm,hollow/s
Gearing Arrangement :
Worm
Lubricating oil :
GB L-CKC220-460,Shell Omala220-460
Gear material :
20CrMnTi alloy steel
Surface hardness of gears :
HRC58°~62°
Gear core hardness :
HRC33~40
Description

S series gear reducer Worm Helical Gearbox Reducer S Series for Conveyor Belt

Description :

S series: The simple design makes for cost-effectiveness. Use the S series gear units to implement simple tasks in your machine or plant applications. The linear power transmission makes the helical-worm gear units especially quiet in operation. The combination with a helical gear stage significantly increases the efficiency compared to pure worm gear units.

Specification :

SIZE Shaft Dia. (mm) Center
Height		 Output Flange
Dia. (mm)		 Power
(kw)		 Ratio Permissible
Torque(N.m)		 Weight
(kgs)

Solid Hallow
37 φ20k6 φ20h7 82 φ120/160 0.18-0.75 10.27-165.71 90 7
47 φ25k6 φ25h7 100 φ160 0.18-1.50 11.46-244.74 170 10
57 φ30k6 φ30h7/35h7 180 φ200 0.18-3.0 10.78-196.21 300 14
67 φ35k6 φ40h7/45h7 140 φ200 0.25-5.50 11.55-227.20 520 26
77 φ45k6 φ50h7/60h7 180 φ250 0.55-7.50 9.96-241.09 1270 50
87 φ60m6 φ60h7/70h7 225 φ350 0.75-15.0 11.83-223.26 2280 100
97 φ70m6 φ70h7/90h7 280 φ450 1.50-22.0 12.5-230.48 4000 170

HRC33 Linear Worm Reduction Helical Gear Assembly For Conveyor Belt

HRC33 Linear Worm Reduction Helical Gear Assembly For Conveyor BeltHRC33 Linear Worm Reduction Helical Gear Assembly For Conveyor Belt
HRC33 Linear Worm Reduction Helical Gear Assembly For Conveyor Belt
HRC33 Linear Worm Reduction Helical Gear Assembly For Conveyor Belt
HRC33 Linear Worm Reduction Helical Gear Assembly For Conveyor Belt

Why choose us :

HRC33 Linear Worm Reduction Helical Gear Assembly For Conveyor BeltHRC33 Linear Worm Reduction Helical Gear Assembly For Conveyor BeltHRC33 Linear Worm Reduction Helical Gear Assembly For Conveyor Belt

Reducer process :
HRC33 Linear Worm Reduction Helical Gear Assembly For Conveyor Belt
Packing and shipping way :
HRC33 Linear Worm Reduction Helical Gear Assembly For Conveyor Belt
