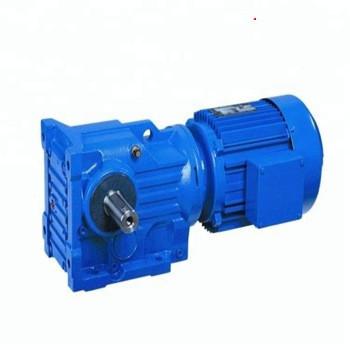

1450rpm Worm Helical Gear Reducer Gearbox With Motor 20CrMnTi Alloy Steel
1450rpm Worm Helical Gear Reducer Gearbox With Motor 20CrMnTi Alloy Steel
1450rpm Worm Helical Gear Reducer Gearbox With Motor 20CrMnTi Alloy Steel
1450rpm Worm Helical Gear Reducer Gearbox With Motor 20CrMnTi Alloy Steel
1450rpm Worm Helical Gear Reducer Gearbox With Motor 20CrMnTi Alloy Steel
1450rpm Worm Helical Gear Reducer Gearbox With Motor 20CrMnTi Alloy Steel
Specifications
Brand Name :
FANBAO
Model Number :
S/sa/saf/saz/sf37
Certification :
CE. ISO9001
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Output Torque :
10-4890(N.M)
Input Speed :
1450rpm
Output Speed :
0.12-397(rpm)
Warranty :
1 year
Color :
customer Requirement
Efficiency :
94%~98%(depends on the transmission stage)
Mounting Position :
Foot,flange,torque,arm,hollow/s
Gearing Arrangement :
Worm
Lubricating oil :
GB L-CKC220-460,Shell Omala220-460
Gear material :
20CrMnTi alloy steel
Surface hardness of gears :
HRC58°~62°
Gear core hardness :
HRC33~40
Description

S Series Helical Worm Gearbox Motor Reducer | Helical Gearbox Reducer

Description :

helical gear - worm gear speed reducer motor integrated drive to improve the torque and efficiency of the speed reducer with wide range of rotating speed and good universality, it is applicable to varied installation modes and features safe and reliable performance, and long service life, additionally, it also complies with the international standard.

Characteristic advantage
1.Combination of helical gear and worm, vertical output, compact structure, high speed ratio.
2.The concave-convex surface of the product provides the function of heat dissipation, and features strong vibration absorption, low temperature rise, low noise.
3.The product features high drive precision, and is especially suitable for the site with frequent start, is can be connected with varied speed reducers and configuring varied motor drives, and can be installed at the 90º drive operation site.

Specification parameter

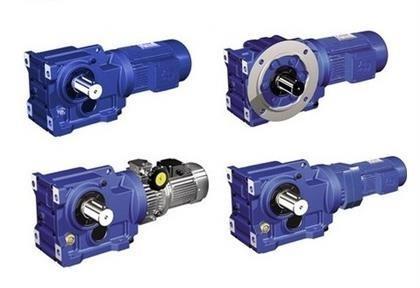

Installation type : Foot,flange,small flange,torque arm.
Output type : Solid shaft,hollow shaft,hollow shaft with shrink disk,spline hollow shaft.
Input type : Motor,input shaft and flange

Specification :

SIZE Shaft Dia. (mm) Center
Height		 Output Flange
Dia. (mm)		 Power
(kw)		 Ratio Permissible
Torque(N.m)		 Weight
(kgs)

Solid Hallow
37 φ20k6 φ20h7 82 φ120/160 0.18-0.75 10.27-165.71 90 7
47 φ25k6 φ25h7 100 φ160 0.18-1.50 11.46-244.74 170 10
57 φ30k6 φ30h7/35h7 180 φ200 0.18-3.0 10.78-196.21 300 14
67 φ35k6 φ40h7/45h7 140 φ200 0.25-5.50 11.55-227.20 520 26
77 φ45k6 φ50h7/60h7 180 φ250 0.55-7.50 9.96-241.09 1270 50
87 φ60m6 φ60h7/70h7 225 φ350 0.75-15.0 11.83-223.26 2280 100
97 φ70m6 φ70h7/90h7 280 φ450 1.50-22.0 12.5-230.48 4000 170

1450rpm Worm Helical Gear Reducer Gearbox With Motor 20CrMnTi Alloy Steel

1450rpm Worm Helical Gear Reducer Gearbox With Motor 20CrMnTi Alloy Steel1450rpm Worm Helical Gear Reducer Gearbox With Motor 20CrMnTi Alloy Steel
1450rpm Worm Helical Gear Reducer Gearbox With Motor 20CrMnTi Alloy Steel
1450rpm Worm Helical Gear Reducer Gearbox With Motor 20CrMnTi Alloy Steel
1450rpm Worm Helical Gear Reducer Gearbox With Motor 20CrMnTi Alloy Steel

Why choose us :

1450rpm Worm Helical Gear Reducer Gearbox With Motor 20CrMnTi Alloy Steel1450rpm Worm Helical Gear Reducer Gearbox With Motor 20CrMnTi Alloy Steel1450rpm Worm Helical Gear Reducer Gearbox With Motor 20CrMnTi Alloy Steel

Reducer process :
1450rpm Worm Helical Gear Reducer Gearbox With Motor 20CrMnTi Alloy Steel
Packing and shipping way :
1450rpm Worm Helical Gear Reducer Gearbox With Motor 20CrMnTi Alloy Steel
