Premium Helical Gear Reducer AC Motor Unit Hardened Tooth Surface
Premium Helical Gear Reducer AC Motor Unit Hardened Tooth Surface
Premium Helical Gear Reducer AC Motor Unit Hardened Tooth Surface
Premium Helical Gear Reducer AC Motor Unit Hardened Tooth Surface
Premium Helical Gear Reducer AC Motor Unit Hardened Tooth Surface
Premium Helical Gear Reducer AC Motor Unit Hardened Tooth Surface
Premium Helical Gear Reducer AC Motor Unit Hardened Tooth Surface
Premium Helical Gear Reducer AC Motor Unit Hardened Tooth Surface
Specifications
Brand Name :
FANBAO
Model Number :
S/sa/saf/saz/sf37
Certification :
CE. ISO9001
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Output Torque :
10-4890(N.M)
Input Speed :
1450rpm
Output Speed :
0.12-397(rpm)
Warranty :
1 year
Color :
customer Requirement
Efficiency :
94%~98%(depends on the transmission stage)
Mounting Position :
Foot,flange,torque,arm,hollow/s
Gearing Arrangement :
Worm
Lubricating oil :
GB L-CKC220-460,Shell Omala220-460
Gear material :
20CrMnTi alloy steel
Surface hardness of gears :
HRC58°~62°
Gear core hardness :
HRC33~40
Description

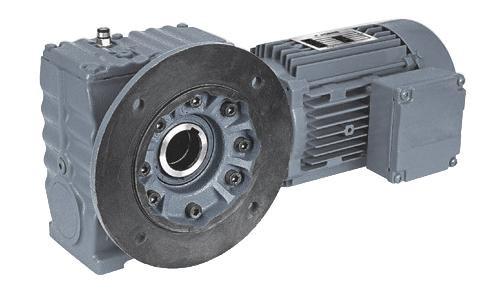

S Series Helical-worm Ac Geared Motor Hardened Tooth Surface Right Angle Helical Gearmotor

Description :

The simple design makes for cost-effectiveness. Use the S series gear units to implement simple tasks in your machine or plant applications. The linear power transmission makes the helical-worm gear units especially quiet in operation. The combination with a helical gear stage significantly increases the efficiency compared to pure worm gear units.
1. Housing: Cast Iron
2. Gears: Helical-bevel Gears
3. Input Configurations: Equipped with Electric Motors, Solid Shaft Input, IEC-normalized Motor Flange
4. Applicable Motors: Single Phase AC Motor, Three Phase AC Motor, Brake Motors, Inverter Motors,
Multi-speed Motors, Explosion-proof Motor, Roller Motor
5. Output Configurations: Solid Shaft Output, Hollow Shaft Output

Specification :

SIZE Shaft Dia. (mm) Center
Height		 Output Flange
Dia. (mm)		 Power
(kw)		 Ratio Permissible
Torque(N.m)		 Weight
(kgs)

Solid Hallow
37 φ20k6 φ20h7 82 φ120/160 0.18-0.75 10.27-165.71 90 7
47 φ25k6 φ25h7 100 φ160 0.18-1.50 11.46-244.74 170 10
57 φ30k6 φ30h7/35h7 180 φ200 0.18-3.0 10.78-196.21 300 14
67 φ35k6 φ40h7/45h7 140 φ200 0.25-5.50 11.55-227.20 520 26
77 φ45k6 φ50h7/60h7 180 φ250 0.55-7.50 9.96-241.09 1270 50
87 φ60m6 φ60h7/70h7 225 φ350 0.75-15.0 11.83-223.26 2280 100
97 φ70m6 φ70h7/90h7 280 φ450 1.50-22.0 12.5-230.48 4000 170

Premium Helical Gear Reducer AC Motor Unit Hardened Tooth Surface

Premium Helical Gear Reducer AC Motor Unit Hardened Tooth SurfacePremium Helical Gear Reducer AC Motor Unit Hardened Tooth Surface
Premium Helical Gear Reducer AC Motor Unit Hardened Tooth Surface
Premium Helical Gear Reducer AC Motor Unit Hardened Tooth Surface
Premium Helical Gear Reducer AC Motor Unit Hardened Tooth Surface

Why choose us :

Premium Helical Gear Reducer AC Motor Unit Hardened Tooth SurfacePremium Helical Gear Reducer AC Motor Unit Hardened Tooth SurfacePremium Helical Gear Reducer AC Motor Unit Hardened Tooth Surface

Reducer process :
Premium Helical Gear Reducer AC Motor Unit Hardened Tooth Surface
Packing and shipping way :
Premium Helical Gear Reducer AC Motor Unit Hardened Tooth Surface
FAQ
Q1 : What should I provide when I choose gearbox/speed reducer?
A1: The best way is to provide the motor drawing with parameter.
Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Q2: Are you a manufacturer?
A2: Yes. We are a professional motor and reducer manufacturer for15 years

Q3: What is your delivery time?
A3: 10 days for sample order, 15 days for container order.
Q4: Can I get a sample first?
A4: Sure, we are honored to offer you sample for test before placing a formal order.
Q5: What is your MOQ ?
A5: 1 pc per model for factory brand and package, 50 pcs per model for OEM brand and package.

Q6: Do you provide OEM/ODM service?
A6: Yes, we are premium OEM/ODM manufacturer which assessed by independent third parties.

Q7: How does your factory do regarding quality control?
A7: Quality is priority. All production process strict to follow Quality system, QC team check the quality during the production, and do the test before each shipment.

Q8: What's your warranty terms?
A8:Warranty: 1 year after the shipping date against B/L.

Q9: How do you make our business long-term and good relationship?
A9:
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
