1200rpm Parallel Shaft Helical Gear Reducer Electric Motor F87 F77 F47
1200rpm Parallel Shaft Helical Gear Reducer Electric Motor F87 F77 F47
1200rpm Parallel Shaft Helical Gear Reducer Electric Motor F87 F77 F47
1200rpm Parallel Shaft Helical Gear Reducer Electric Motor F87 F77 F47
1200rpm Parallel Shaft Helical Gear Reducer Electric Motor F87 F77 F47
1200rpm Parallel Shaft Helical Gear Reducer Electric Motor F87 F77 F47
1200rpm Parallel Shaft Helical Gear Reducer Electric Motor F87 F77 F47
1200rpm Parallel Shaft Helical Gear Reducer Electric Motor F87 F77 F47
1200rpm Parallel Shaft Helical Gear Reducer Electric Motor F87 F77 F47
1200rpm Parallel Shaft Helical Gear Reducer Electric Motor F87 F77 F47
Specifications
Brand Name :
FANBAO
Model Number :
F37, F47, F57, F67, F77, F87, F97, F107, F127, F157 FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157 FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157 FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127, FAF157
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Output Torque :
10.6-952000NM
Input Speed :
750-1500rpm
Output Speed :
14-280rpm
Warranty :
1 year
Color :
customer Requirement
Ratio :
3.77~276.77
Efficiency :
94%~98%(depends on the transmission stage)
Mounting Position :
Flange, hollow shaft, solid shaft
Certificate :
ISO9001. CE
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Description

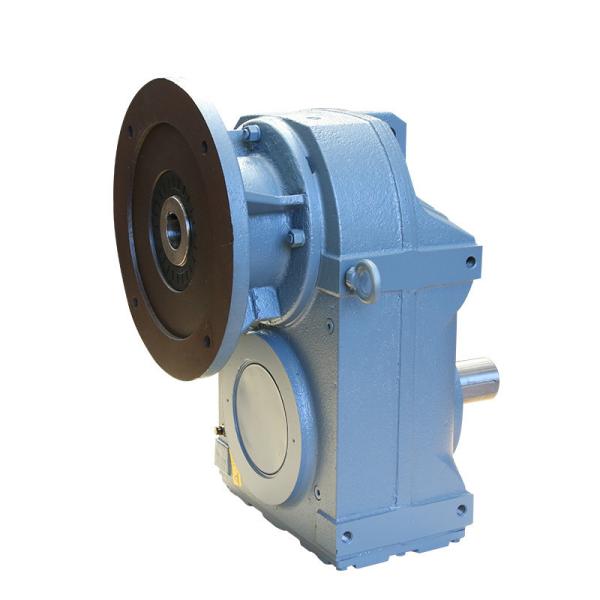

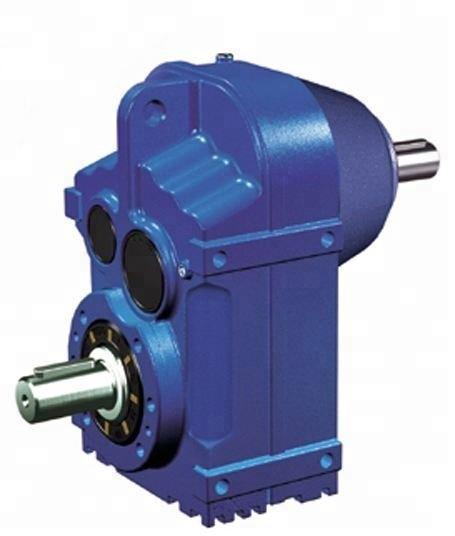

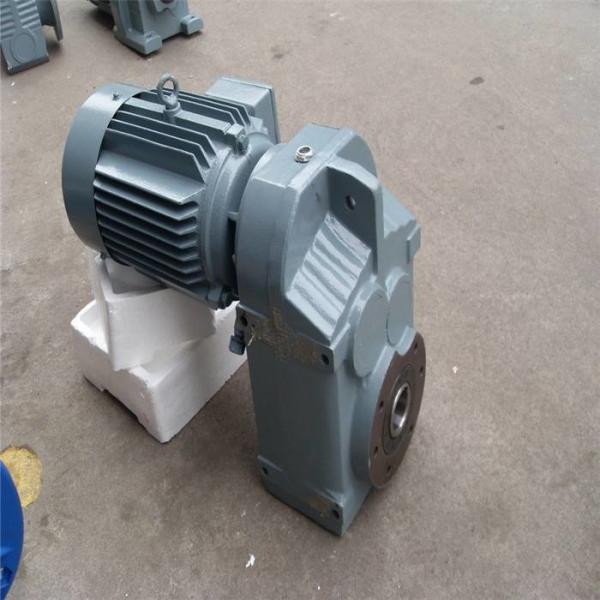

Parallel Shaft Helical Gearbox Reducer Electric Motor F87 F77 F47 F Series Gear Reducer

Description :

F Series Helical Gear Reducer could enhance your industrial set up . the F Series helical gear reducer is a sleek design, these axis-parallel gear units pack a punch with a robust power range spanning from 130 to 18,000 Nm. When space is at a premium, these gear units stand out as a reliable choice. we have the following series for different requirements .

F Series - Foot-mounted, solid shaft output

FAB Series - Foot-mounted, hollow shaft output

FA Series – Keyed hollow shaft output

FF Series – B5 Flange-mounted, solid shaft output

FAF Series – B5 Flange-mounted, hollow shaft output

FAZ Series – B14 Flange-mounted, hollow shaft output F

AT Series – Hollow shaft output, torque arm

FH, FHB, FHF, FHZ Series – Hollow shaft output, shrink disk

FV, FVB, FVF, FVZ Series – Hollow shaft output, splined hollow shaft

F(FA, FF, FAF, FAB, FAZ)S Series – Solid shaft input

Apart of type specification :

SIZE 37 47 57 67 77 87 97 107 127 157
DF DFA DFF DKAZ DFAF DFAZ
INPUT POWER RATING(KW) 0.18-0.30 0.18-3.0 0.18-5.5 0.18-5.5 0.37-11 0.75-22 1.1-30 2.2-45 7.5-90 11-260
RATIO 3.81-128.51 5.06-189.39 5.18-199.70 4.21-228.99 4.20-271.92 4.12-270.64 4.68-270.64 6.20-255.25 4.63-172.33 12.07-270.18
MAX TORQUE(N.m) 200 400 600 820 1500 3000 4300 7840 12000 18000
WEIGHT(KG) 13 18 34 55 90 150 260 402 700 950

Application :
Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing,
Wood working, Glass.

Mounting position and Position of the motor terminal box :

1200rpm Parallel Shaft Helical Gear Reducer Electric Motor F87 F77 F47
1200rpm Parallel Shaft Helical Gear Reducer Electric Motor F87 F77 F47
1200rpm Parallel Shaft Helical Gear Reducer Electric Motor F87 F77 F47
1200rpm Parallel Shaft Helical Gear Reducer Electric Motor F87 F77 F47

Why choose us :

1200rpm Parallel Shaft Helical Gear Reducer Electric Motor F87 F77 F471200rpm Parallel Shaft Helical Gear Reducer Electric Motor F87 F77 F471200rpm Parallel Shaft Helical Gear Reducer Electric Motor F87 F77 F47

F series process :
1200rpm Parallel Shaft Helical Gear Reducer Electric Motor F87 F77 F47
Packing and shipping way :
1200rpm Parallel Shaft Helical Gear Reducer Electric Motor F87 F77 F47
