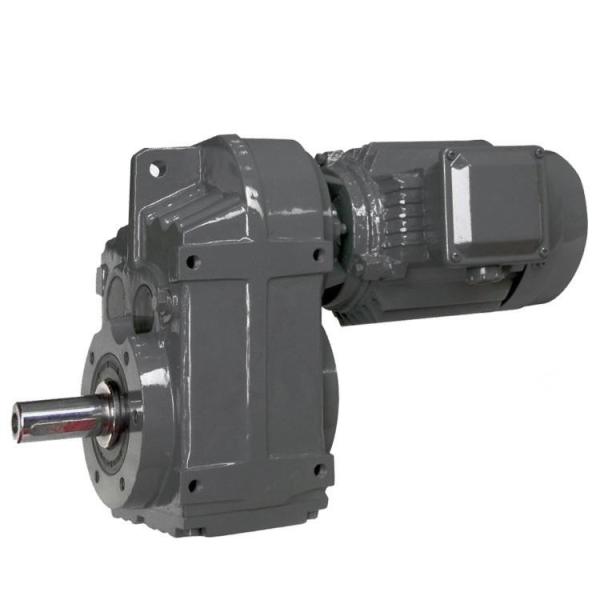

Custom Hollow Shaft Helical Gearbox Speed Reducer With Inline Torque Arm
Custom Hollow Shaft Helical Gearbox Speed Reducer With Inline Torque Arm
Custom Hollow Shaft Helical Gearbox Speed Reducer With Inline Torque Arm
Custom Hollow Shaft Helical Gearbox Speed Reducer With Inline Torque Arm
Custom Hollow Shaft Helical Gearbox Speed Reducer With Inline Torque Arm
Custom Hollow Shaft Helical Gearbox Speed Reducer With Inline Torque Arm
Specifications
Brand Name :
FANBAO
Model Number :
F37, F47, F57, F67, F77, F87, F97, F107, F127, F157 FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157 FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157 FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127, FAF157
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Output Torque :
10.6-952000NM
Input Speed :
750-1500rpm
Output Speed :
14-280rpm
Warranty :
1 year
Color :
customer Requirement
Ratio :
3.77~276.77
Efficiency :
94%~98%(depends on the transmission stage)
Mounting Position :
Flange, hollow shaft, solid shaft
Certificate :
ISO9001. CE
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Material :
Gear: 20CrMnTi Housing: HT250 high strength cast iron
product name :
Helical gear Motor Speed reducer F Series Flange Mounted Parallel Shaft Parallel Geared Motor Helical Speed Reducer
Description

F series Parallel Shaft Helical Geared Box Speed Reducer With Inline Torque Arm Transmission Reduction Gearmotor

Description :

The F Series reducers exhibit a parallel output configuration, boasting a sleek and compact structure that delivers substantial transmission torque for reliable and quiet operation, ensuring an extended service life.

For easy installation, choose from a variety of methods such as base, hollow shaft, flange, torque arm, or small flange installation options to suit your specific requirements.

Regarding rotation directions, the secondary input and output rotate in the same direction within the basic type, while the third level operates in the opposite direction. For customized F/R combinations, we recommend seeking individual consultation.

Select between hollow shaft or solid shaft output modes, each offering distinct advantages based on your application needs.

These reducers are engineered for efficiency, with the second stage achieving a remarkable 96% efficiency, the third stage at 94%, and the F series/R series combination at 85%, ensuring optimal performance across the board.

Explore our diverse range of F series reducer models, including F37, F47, F57, F67, F77, F87, F97, F107, F127, and F157, along with specialized variants like FA, FF, FAF, and FAZ, designed to meet a wide array of operational demands

Apart of type specification :

F Series Parallel Shaft Helical Gear Units
Size
F37, F47, F57, F67, F77, F87, F97, F107, F127, F157
FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157
FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157
FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127, FAF157
FAZ37, FAZ47, FAZ57, FAZ67, FAZ77, FAZ87, FAZ97, FAZ107, FAZ127, FAZ157
FS37, FS47, FS57, FS67, FS77, FS87, FS97, FS107, FS127, FS157
F37R17, F47R17, F57R37, F67R37, F77R37, F87R57, F97R57, F107R77, F127R77, F107R77, F127R77, F127R87, F157R97
FAS37, FAS47, FAS57, FAS67, FAS77, FAS87, FAS97, FAS107, FAS127, FAS157
FA37R17, FA47R17, FA57R37, FA67R37, FA77R37, FA87R57, FA97R57, FA107R77, FA127R77, FA107R77, FA127R77, FA127R87, FA157R97
FFS37, FFS47, FFS57, FFS67, FFS77, FFS87, FFS97, FFS107, FFS127, FFS157
FF37R17, FF47R17, FF57R37, FF67R37, FF77R37, FF87R57, FF97R57, FF107R77, FF127R77, FF107R77, FF127R77, FF127R87, FF157R97
FAFS37, FAFS47, FAFS57, FAFS67, FAFS77, FAFS87, FAFS97, FAFS107, FAFS127, FAFS157
FAF37R17, FAF47R17, FAF57R37, FAF67R37, FAF77R37, FAF87R57, FAF97R57, FAF107R77, FAF127R77, FAF107R77, FAF127R77, FAF127R87,
FAF157R97
FAZS37, FAZS47, FAZS57, FAZS67, FAZS77, FAZS87, FAZS97, FAZS107, FAZS127, FAZS157
FAZ37R17, FAZ47R17, FAZ57R37, FAZ67R37, FAZ77R37, FAZ87R57, FAZ97R57, FAZ107R77, FAZ127R77, FAZ107R77, FAZ127R77, FAZ127R87,
FAZ157R97
Power
P1
0.18...200kw
Output Torque
TN2
Up to 18000Nm
Output Speed
n2
0.13...310r/min
Application :
Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing,
Wood working, Glass.

Mounting position and Position of the motor terminal box :

Custom Hollow Shaft Helical Gearbox Speed Reducer With Inline Torque Arm
Custom Hollow Shaft Helical Gearbox Speed Reducer With Inline Torque Arm
Custom Hollow Shaft Helical Gearbox Speed Reducer With Inline Torque Arm
Custom Hollow Shaft Helical Gearbox Speed Reducer With Inline Torque Arm
Custom Hollow Shaft Helical Gearbox Speed Reducer With Inline Torque Arm

Why choose us :

Custom Hollow Shaft Helical Gearbox Speed Reducer With Inline Torque ArmCustom Hollow Shaft Helical Gearbox Speed Reducer With Inline Torque ArmCustom Hollow Shaft Helical Gearbox Speed Reducer With Inline Torque Arm

F series process :
Custom Hollow Shaft Helical Gearbox Speed Reducer With Inline Torque Arm
Packing and shipping way :
Custom Hollow Shaft Helical Gearbox Speed Reducer With Inline Torque Arm
